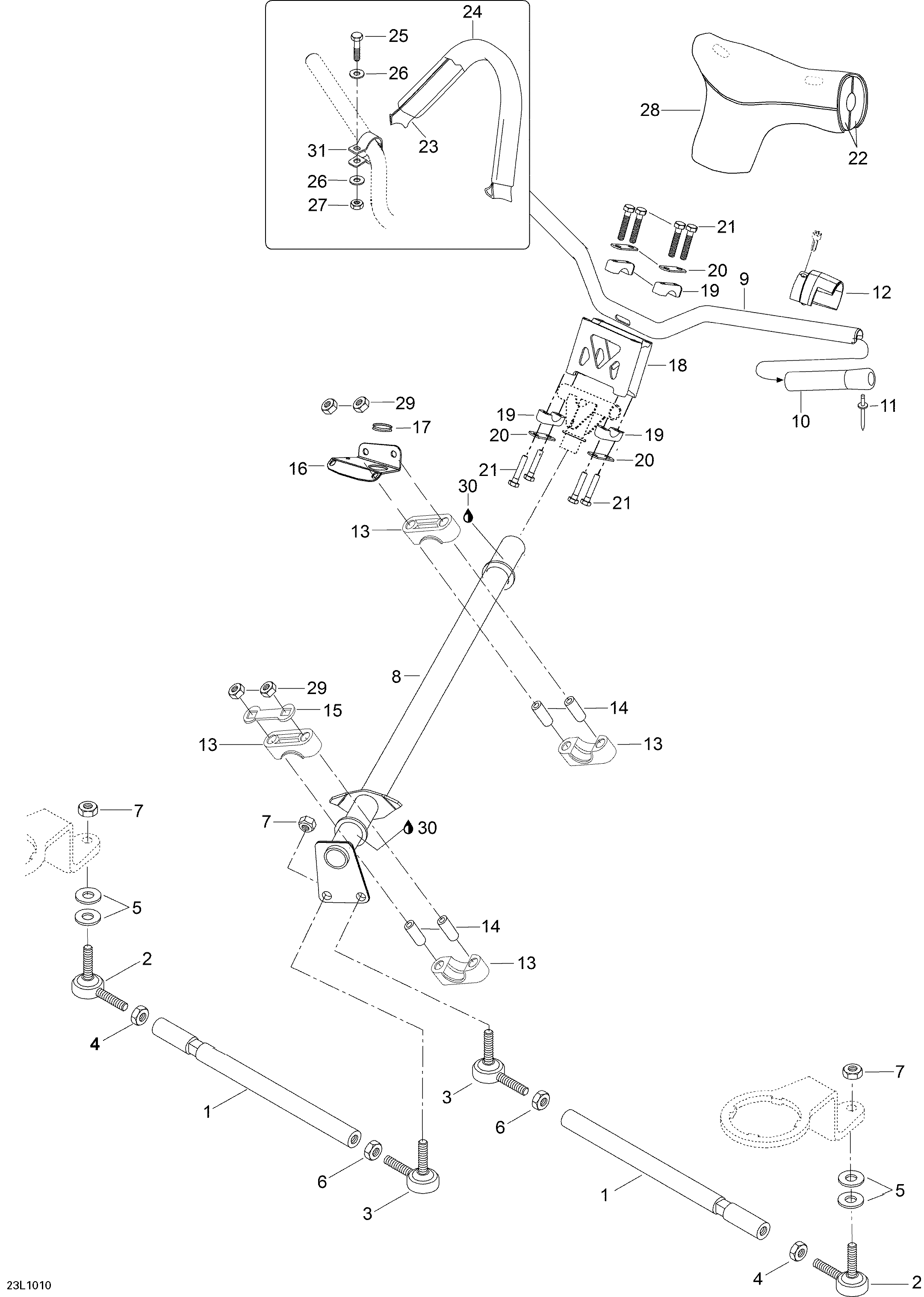

07- Steering для BRP Ski-Doo Skandic SWT V800 - 2010
-
№АртикулНазвание
-
1605454772 RH Tie RodRH Tie Rod
-
1605454293 LH Tie RodLH Tie Rod
-
2506151492 RH Ball JointRH Ball Joint
-
3506151845 LH Joint BallLH Joint Ball
-
4M33019 RH NutRH Nut
-
5M31014 WasherWasher
-
6M33017 LH NutLH Nut
-
7232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
8605253421 Main TubeMain Tube
-
9605251368 Handle BarHandle Bar
-
10M5340464 Grip HandleGrip Handle
-
11M36005 RivetRivet
-
12506151566 AdaptatorAdaptator
-
13506150400 Housing HalfHousing Half
-
14506150500 Housing BushingHousing Bushing
-
15506150600 Stopper PlateStopper Plate
-
16605351973 BracketBracket
-
17M28022 GrommetGrommet
-
18860603900 Riser Handle Bar KitRiser Handle Bar Kit
-
19506151622 Steering SupportSteering Support
-
20709400509 StiffnerStiffner
-
21250000074 Hex. Screw With Nylon M8 X 40Hex. Screw With Nylon M8 X 40
-
22605354907 FoamFoam
-
23506152115 Strap Ass'yStrap Ass'y
-
24506152115 Strap Ass'yStrap Ass'y
-
25207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
26234061410 Flat Washer 6 mmFlat Washer 6 mm
-
27232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
28605254571 Steering CoverSteering Cover
-
29M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
30293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
31506151792 Support Plate, BlackSupport Plate, Black
