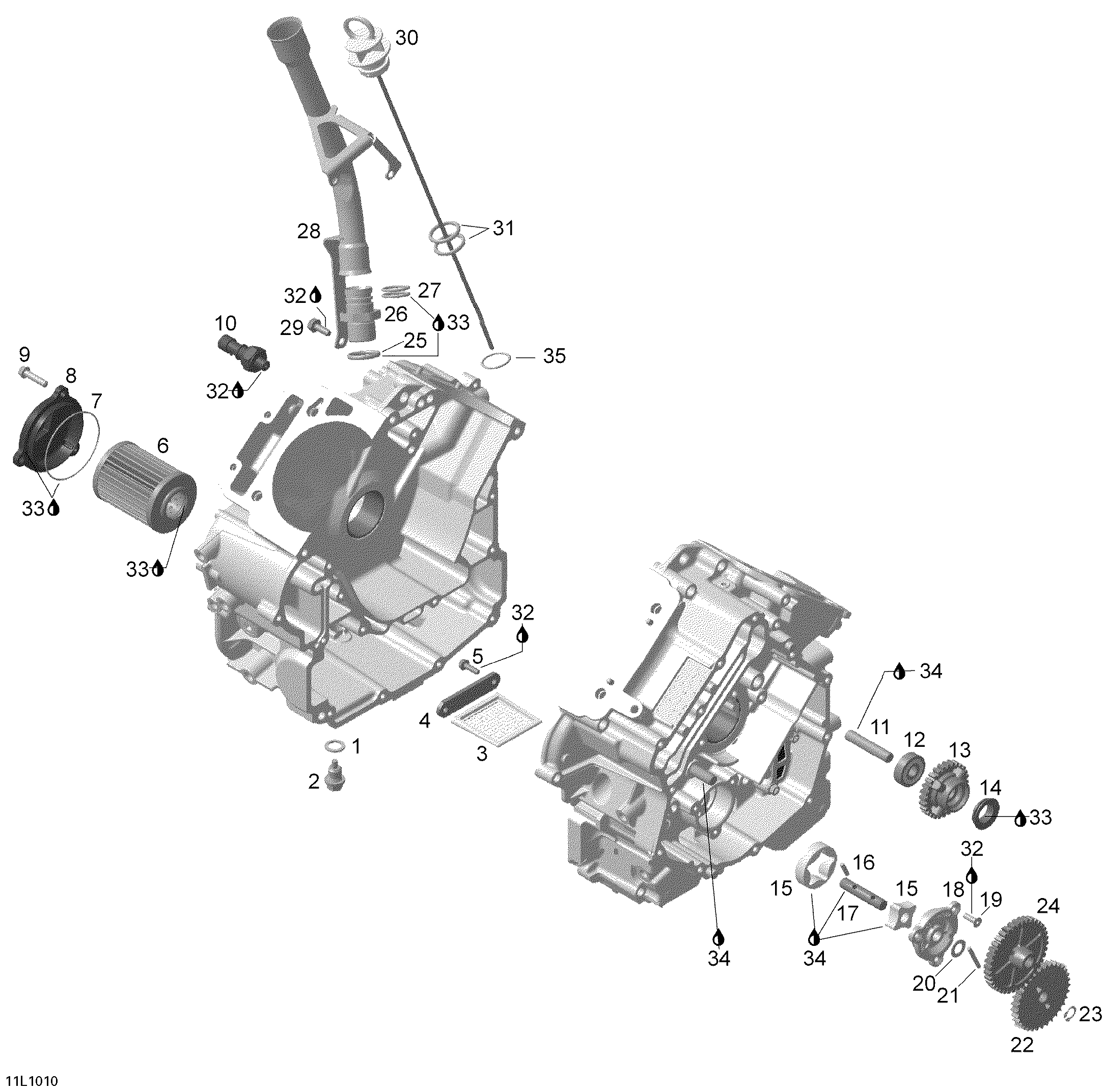

01- Engine Lubrication для BRP Ski-Doo Skandic SWT V800 - 2010
-
№АртикулНазвание
-
1420250640 Copper WasherCopper Washer
-
2420241786 Magnetic Drain PlugMagnetic Drain Plug
-
3420256321 Oil SieveOil Sieve
-
4420210661 Cover SieveCover Sieve
-
5420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
6420256188 Oil FilterOil Filter
-
7420230920 O-RingO-Ring
-
8420210418 Oil Filter CoverOil Filter Cover
-
9420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420256773 Oil Pressure SwitchOil Pressure Switch
-
—420434307 Idle Gear Ass'y, 28 Teeth. Includes 11 to 14Idle Gear Ass'y, 28 Teeth. Includes 11 to 14
-
14420430555 Oil SealOil Seal
-
15420256347 Oil Pump RotorOil Pump Rotor
-
16420232730 Needle PinNeedle Pin
-
17420237059 Oil Pump ShaftOil Pump Shaft
-
18420210641 Oil Pump CoverOil Pump Cover
-
19420640821 Torx Screw M5 X 16Torx Screw M5 X 16
-
20420827590 Thrust WasherThrust Washer
-
21420232430 Needle PinNeedle Pin
-
22420434320 Oil Pump Gear, 33 TeethOil Pump Gear, 33 Teeth
-
23420245330 Snap RingSnap Ring
-
24420434300 Idle Gear, 38 TeethIdle Gear, 38 Teeth
-
25420631640 O-RingO-Ring
-
26420856610 AdaptorAdaptor
-
27420430370 O-RingO-Ring
-
28420856920 Oil TubeOil Tube
-
29420240385 Taptite Screw M6 x 12Taptite Screw M6 x 12
-
30420956936 Oil Lever Gauge Ass'y. Includes 30 to 31Oil Lever Gauge Ass'y. Includes 30 to 31
-
31420631640 O-RingO-Ring
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33293550030 Grease, Super LubeGrease, Super Lube
-
35420631610 O-RingO-Ring
