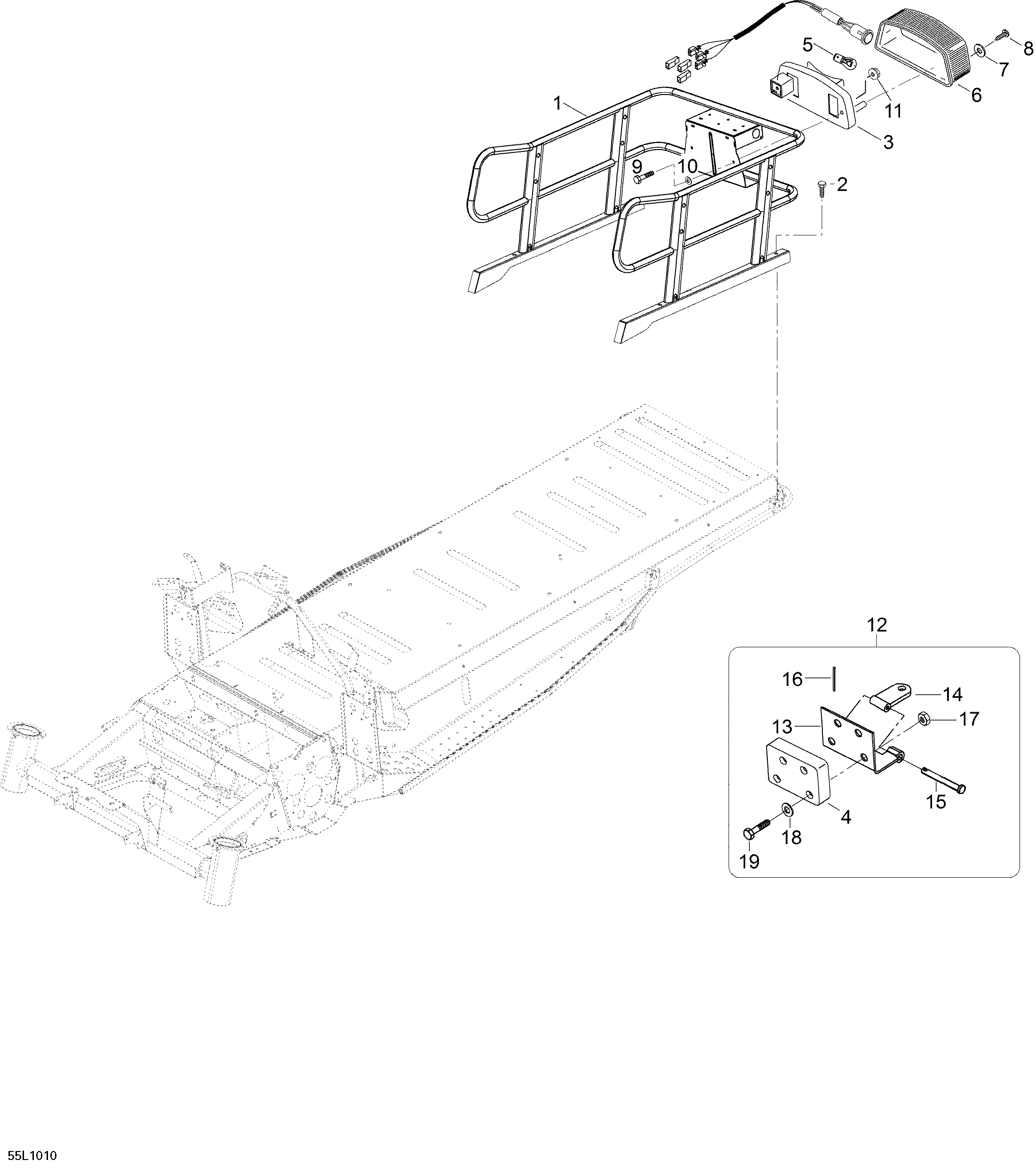

09- Luggage Rack для BRP Ski-Doo Skandic SWT V800 - 2010
-
№АртикулНазвание
-
1605255117 Portable Rack Ass'yPortable Rack Ass'y
-
2M40316 ScrewScrew
-
3515175397 Lamp HousingLamp Housing
-
4605351510 SpacerSpacer
-
5520000758 BulbBulb
-
6414513700 LensLens
-
7414516400 WasherWasher
-
8209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
9M40064 Hex. ScrewHex. Screw
-
10M20077 WasherWasher
-
11M33200 Nut M6Nut M6
-
13M5344151 PlatePlate
-
14M548745 Hitch PlateHitch Plate
-
15M41031 PinPin
-
16560309200 Pin-RetainerPin-Retainer
-
17232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
18234081410 Flat Washer 8 mmFlat Washer 8 mm
-
19207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
