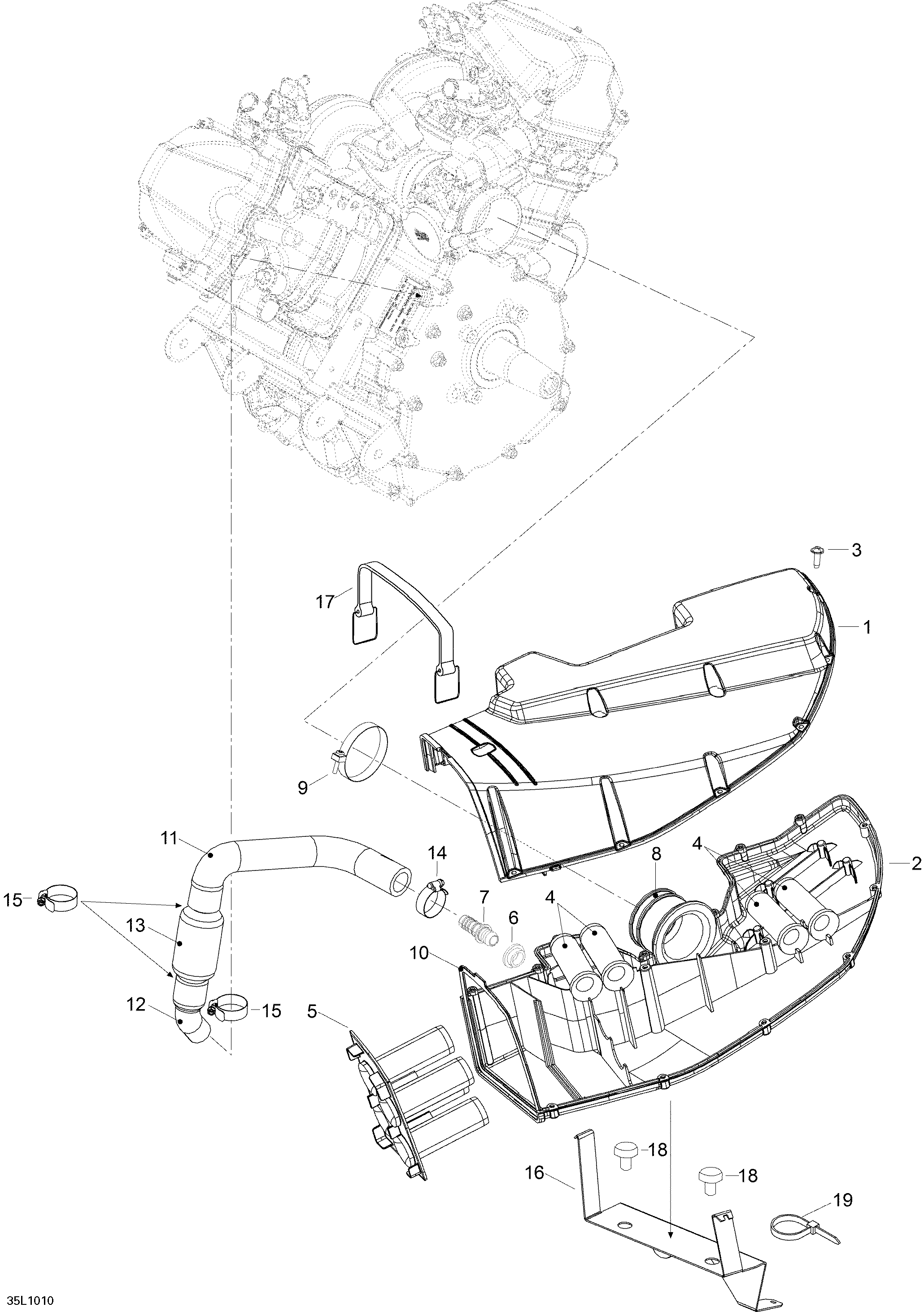

02- Air Intake System для BRP Ski-Doo Skandic SWT V800 - 2010
-
№АртикулНазвание
-
1605153098 Air Intake Cover BoxAir Intake Cover Box
-
2605153099 Air intake Bottom BoxAir intake Bottom Box
-
3M40905 Screw M6 X 16Screw M6 X 16
-
4M5444445 PipePipe
-
5605253649 Ventury Tube SetVentury Tube Set
-
6570023000 Insulating RingInsulating Ring
-
7605453846 ConnectorConnector
-
8605353177 Intake AdaptatorIntake Adaptator
-
9508000346 Gemi ClampGemi Clamp
-
10605353517 Air FilterAir Filter
-
11605354128 HoseHose
-
12605354127 HoseHose
-
13605354126 Ventillation ChamberVentillation Chamber
-
14605627001 ClampClamp
-
15605627004 ClampClamp
-
16605354778 Intake Silencer SupportIntake Silencer Support
-
17515175955 Battery StrapBattery Strap
-
18570044700 Rubber BumperRubber Bumper
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
