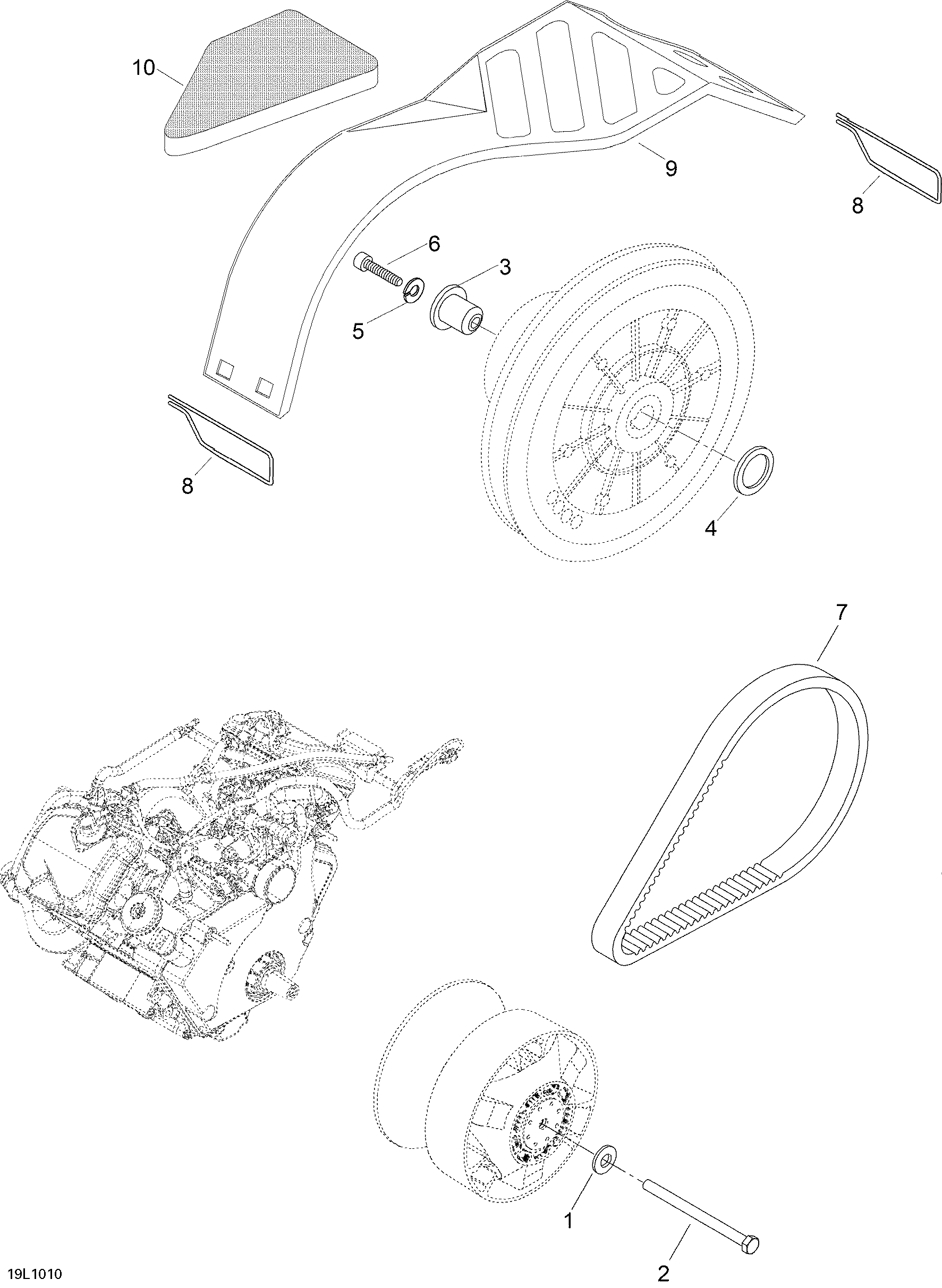

05- Pulley System для BRP Ski-Doo Skandic SWT V800 - 2010
-
№АртикулНазвание
-
1M20110 Conical Spring WasherConical Spring Washer
-
2417300285 Drive Pulley BoltDrive Pulley Bolt
-
3M5443765 Shaft ExtensionShaft Extension
-
4M3125351 ShimShim
-
5234181401 Lock Washer 8 mmLock Washer 8 mm
-
6M40290 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
7605348425 Drive BeltDrive Belt
-
8M5442726 PinPin
-
9605149860 Belt GuardBelt Guard
-
10605250741 Isolant FoamIsolant Foam
