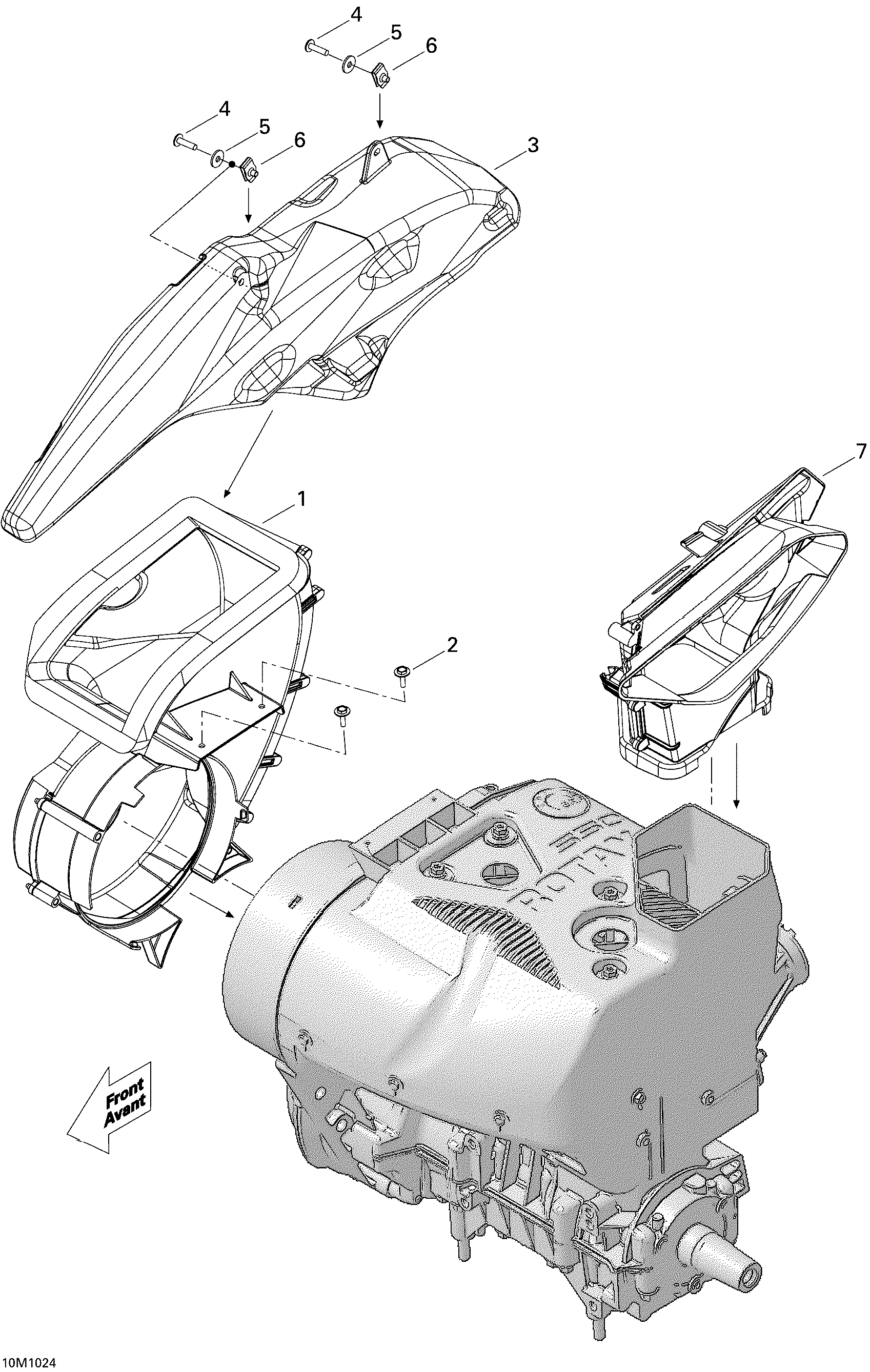

01- Cooling System для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1509000448 Inlet Duct Ass'yInlet Duct Ass'y
-
2250000377 Plastite Screw Type K-40 M4 X 16Plastite Screw Type K-40 M4 X 16
-
3509000543 Air Chamber Ass'yAir Chamber Ass'y
-
4250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
5391301600 WasherWasher
-
6250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
7509000540 Outlet Duct Ass.Outlet Duct Ass.
