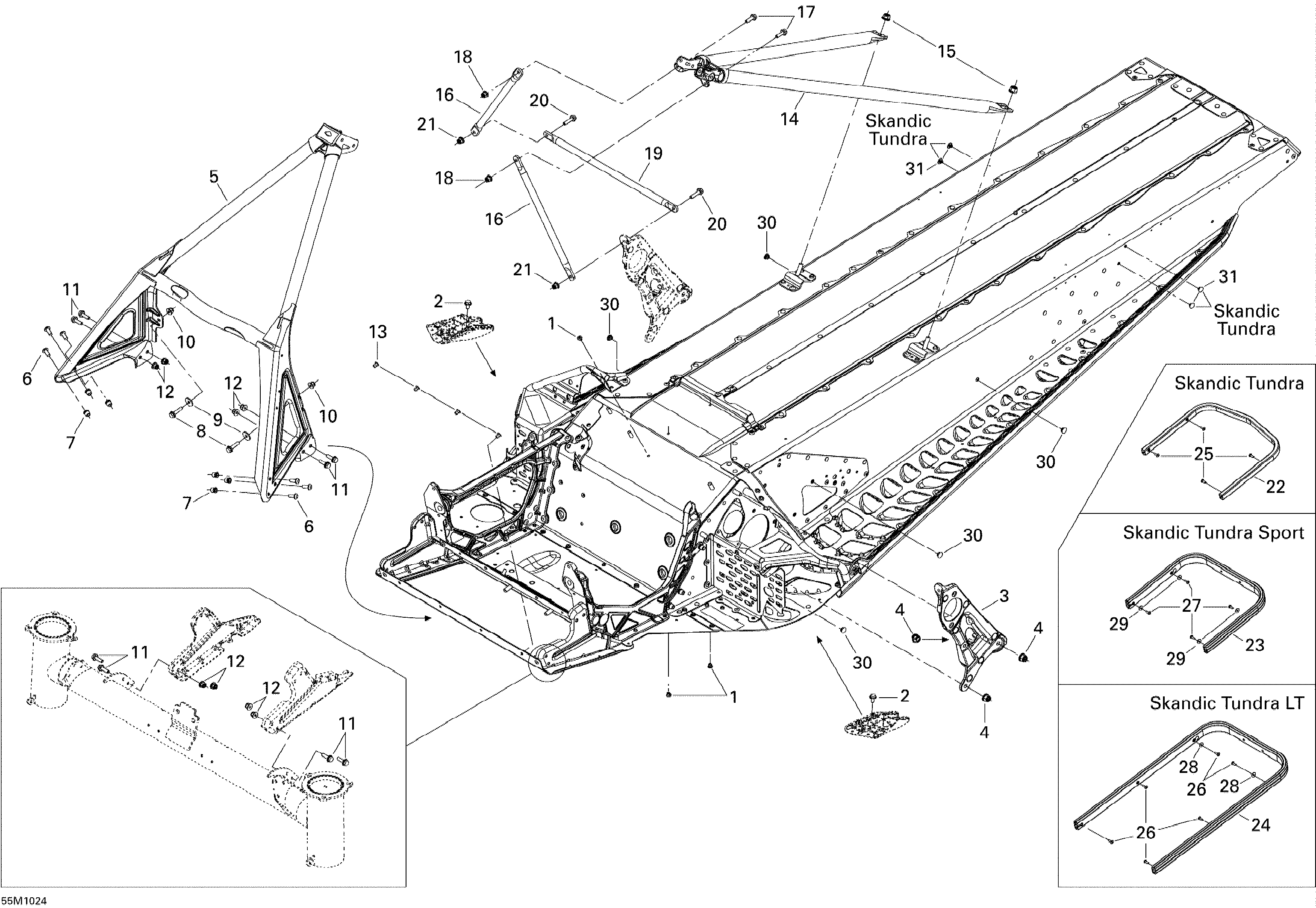

09- Frame and Components для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
3518325934 Driven Pulley SupportDriven Pulley Support
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5518325966 Front MemberFront Member
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9224061201 Flat WasherFlat Washer
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14518325927 Rear MemberRear Member
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16518325114 Upper Column SupportUpper Column Support
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19518325115 Center Column SupportCenter Column Support
-
20207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22518324980 Rear Bumper. STDRear Bumper. STD
-
23518325577 Rear Bumper. SPORTRear Bumper. SPORT
-
24518325579 Rear Bumper. LTRear Bumper. LT
-
25250000402 Torx-Truss Screw M6 X 18. STDTorx-Truss Screw M6 X 18. STD
-
26250000402 Torx-Truss Screw M6 X 18. LTTorx-Truss Screw M6 X 18. LT
-
27250000402 Torx-Truss Screw M6 X 18. SPORTTorx-Truss Screw M6 X 18. SPORT
-
28224061201 Flat Washer. LTFlat Washer. LT
-
29224061201 Flat Washer. SPORTFlat Washer. SPORT
-
30293730041 Dart 8 mmDart 8 mm
-
31293730042 Dart. STDDart. STD
