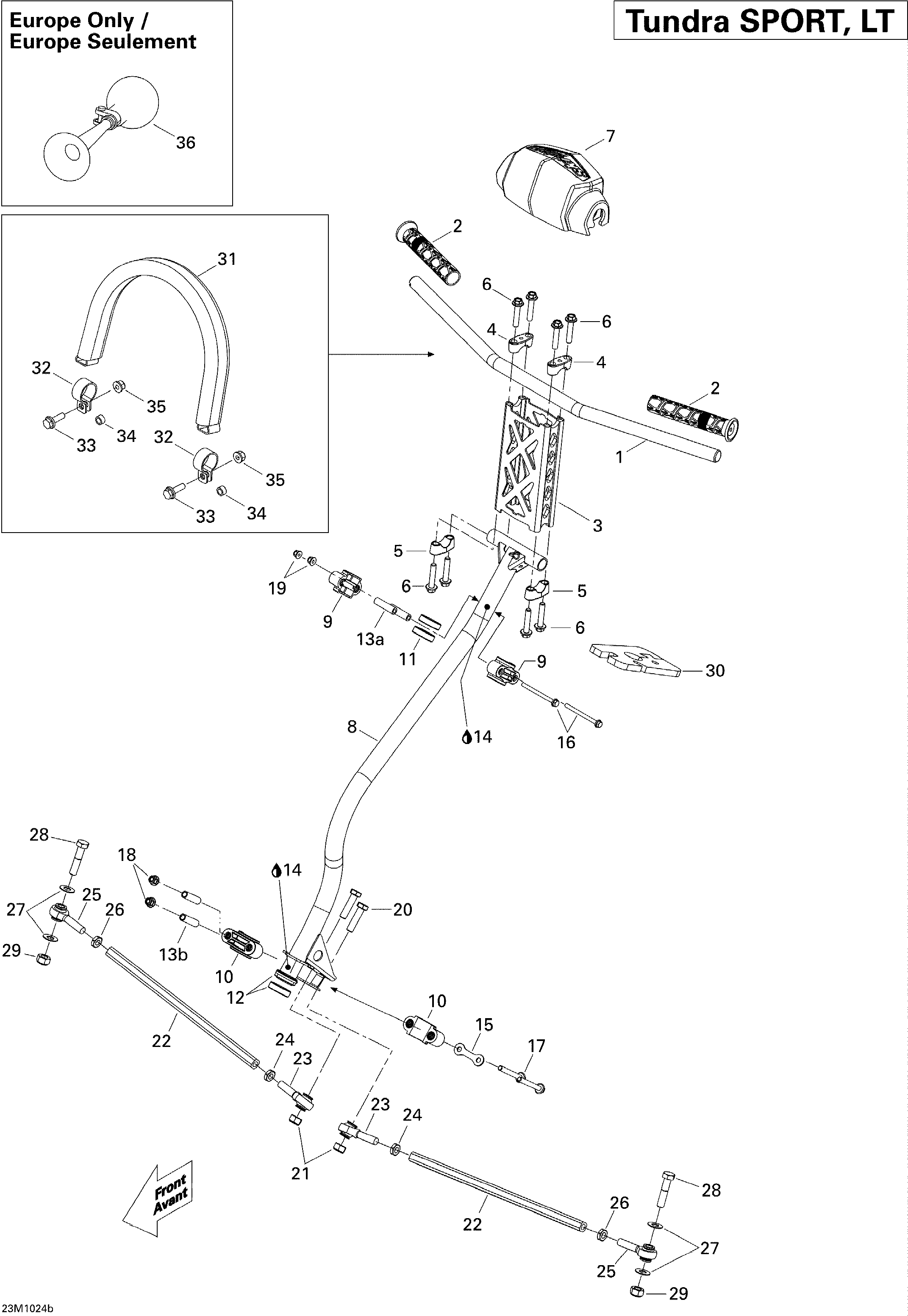

07- Steering 2, SPORT, LT для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1506152203 Handle BarHandle Bar
-
2506152424 Handle GripHandle Grip
-
3860200269 Handlebar ExtensionHandlebar Extension
-
4506152394 Upper Steering SupportUpper Steering Support
-
5506152395 Lower Steering SupportLower Steering Support
-
6250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
7506152192 Steering PadSteering Pad
-
8506152473 Main TubeMain Tube
-
9506152219 Upper Half HousingUpper Half Housing
-
10506152217 Lower Half HousingLower Half Housing
-
11506152292 Upper Vibration RingUpper Vibration Ring
-
12506152218 Lower Vibration RingLower Vibration Ring
-
13a506152297 Housing BushingHousing Bushing
-
13b506152388 Lower Housing BushingLower Housing Bushing
-
14293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
15506152389 Stopper PlateStopper Plate
-
16207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
17207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
21232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
22506152377 Tie RodTie Rod
-
23506152081 LH Thread Ball JointLH Thread Ball Joint
-
24250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
25506152019 RH Thread Ball JointRH Thread Ball Joint
-
26732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
27506152194 WasherWasher
-
28207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
29232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
30506152407 CushionCushion
-
31506152115 Strap Ass'yStrap Ass'y
-
32506151792 Support Plate, BlackSupport Plate, Black
-
33207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34506152156 BushingBushing
-
35233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
36549011291 HornHorn
