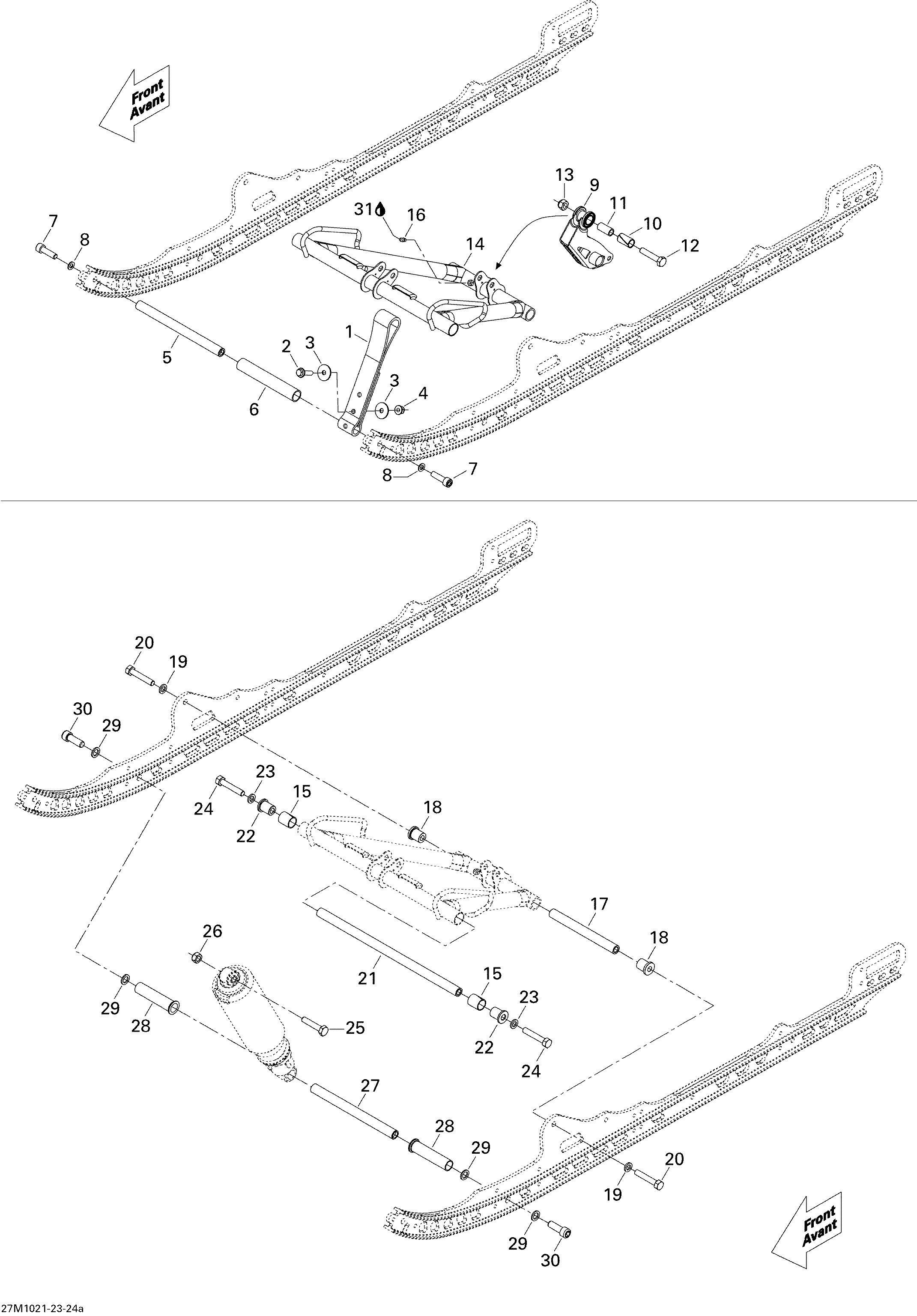

08- Front Arm STD & SPORT для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1503192360 Stopper StrapStopper Strap
-
2207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3224081301 Flat WasherFlat Washer
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503191260 Axle StrapAxle Strap
-
6503191448 SpacerSpacer
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8503189564 WasherWasher
-
9503191207 RockerRocker
-
10503191422 CushionCushion
-
11503189282 BushingBushing
-
12207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14503191752 Front ArmFront Arm
-
15503191556 Extended BushingExtended Bushing
-
16408200700 Grease FittingGrease Fitting
-
17503191279 Lower ShaftLower Shaft
-
18503189324 CushionCushion
-
19503189564 WasherWasher
-
20207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
21503191215 Upper ShaftUpper Shaft
-
22503191262 BushingBushing
-
23503189564 WasherWasher
-
24207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
25207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
26233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
27503191258 Center Shock ShaftCenter Shock Shaft
-
28503191259 Center BushingCenter Bushing
-
29503189276 WasherWasher
-
30205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
31293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
