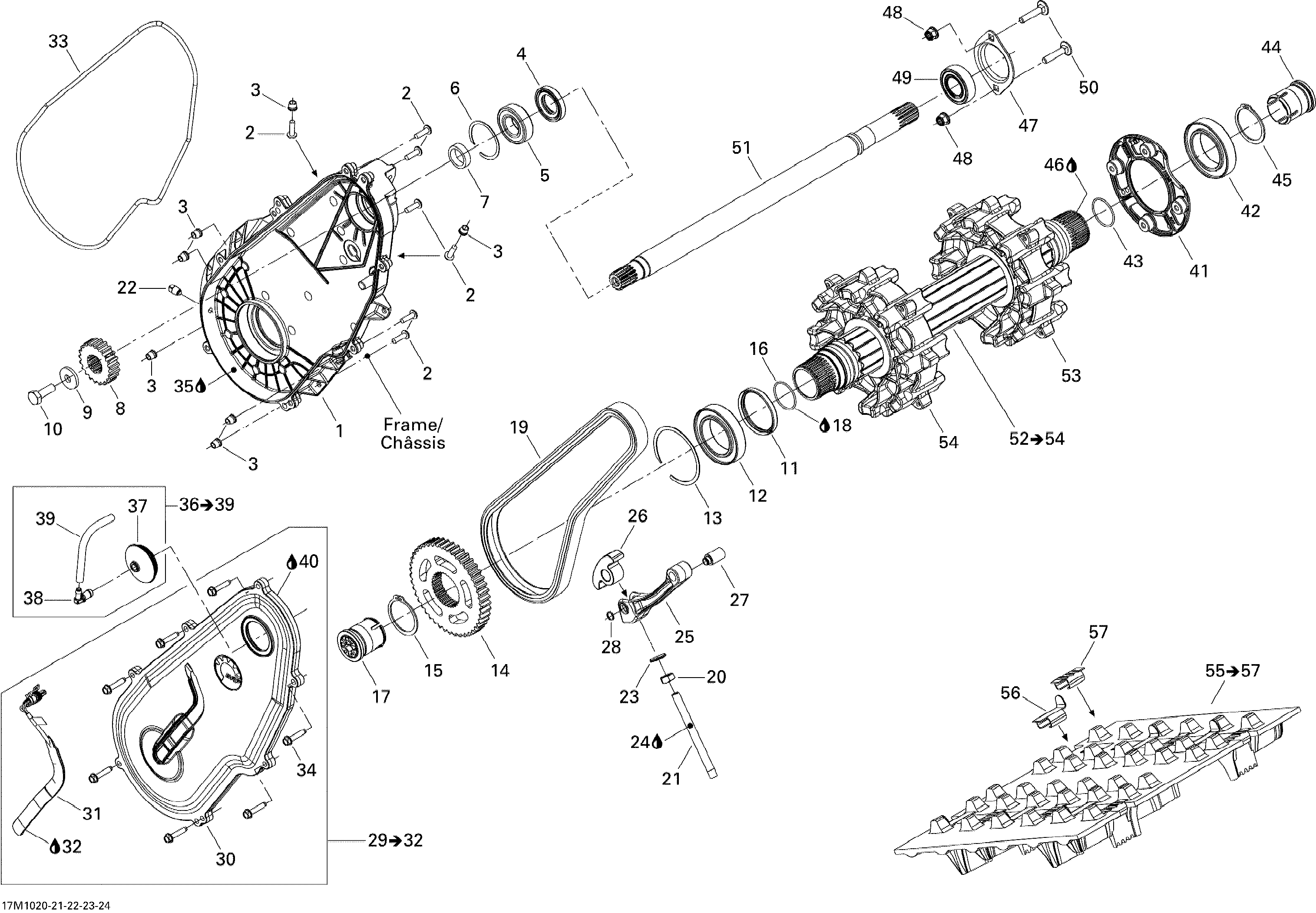

05- Drive System для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010

№

Артикул

Название
1

504152914 Chaincase

Chaincase

0 ₽
2

207662034 Hex. Flanged Screw

Hex. Flanged Screw

740 ₽
3

233261434 Flanged Elastic Nut M6

Flanged Elastic Nut M6

2 310 ₽
4

293250175 Oil Seal

Oil Seal

1 150 ₽
5

293350055 Ball Bearing

Ball Bearing

850 ₽
6

504152576 Circlip

Circlip

3 090 ₽
7

504152628 Shim

Shim

2 780 ₽
8

504152031 Sprocket, 19 Teeth

Sprocket, 19 Teeth

9 480 ₽
9

504152784 Spring Washer M10

Spring Washer M10

590 ₽
10

207103044 Hex. Screw M10 X 30

Hex. Screw M10 X 30

810 ₽
11

504152571 Seal

Seal

1 120 ₽
12

504152573 Ball Bearing

Ball Bearing

0 ₽
13

504152582 Circlip

Circlip

3 090 ₽
14

504152593 Sprocket, 45 Teeth

Sprocket, 45 Teeth

50 720 ₽
15

504152572 Circlip

Circlip

3 130 ₽
16

293300122 O-Ring

O-Ring

680 ₽
17

504152619 Magnetic Cap

Magnetic Cap

8 050 ₽
18

219700417 Synthetic Grease, 400 g

Synthetic Grease, 400 g

0 ₽
19

504152579 Drive Chaine, 102 Links

Drive Chaine, 102 Links

36 010 ₽
20

232006414 Hex. Nut M10

Hex. Nut M10

460 ₽
21

504152602 Adjustment Screw

Adjustment Screw

3 180 ₽
22

504152636 Magnetic Plug

Magnetic Plug

3 180 ₽
23

250200100 Bonded Washer

Bonded Washer

740 ₽
24

413803300 Synthetic Chaincase Oil, 12 X 355 ml

Synthetic Chaincase Oil, 12 X 355 ml

2 280 ₽
25

504152685 Chain Tensioner

Chain Tensioner

3 610 ₽
26

504152739 Slider Chain

Slider Chain

5 940 ₽
27

504152841 Tensionner Axle

Tensionner Axle

4 870 ₽
28

504152282 Circlip

Circlip

1 120 ₽
29

504152916 Chaincase Cover Ass'y. Includes 29 to 32

Chaincase Cover Ass'y. Includes 29 to 32

25 070 ₽
30

504152917 Chaincase Cover

Chaincase Cover

13 940 ₽
31

504152896 Sensor

Sensor

8 740 ₽
32

293800066 Sealant, Loctite 5900, 300 ml

Sealant, Loctite 5900, 300 ml

6 440 ₽
33

293300130 O-Ring

O-Ring

2 440 ₽
34

250000360 Flanged Hex. Screw M6 X 30

Flanged Hex. Screw M6 X 30

200 ₽
35

413803300 Synthetic Chaincase Oil, 12 X 355 ml

Synthetic Chaincase Oil, 12 X 355 ml

2 280 ₽
36

504152861 Cap Ass'y. Includes 36 to 39

Cap Ass'y. Includes 36 to 39

1 840 ₽
37

504152860 Cap

Cap

6 480 ₽
38

414580700 Male Connector

Male Connector

1 450 ₽
39

415080200 Hose, Polyurethane

Hose, Polyurethane

1 980 ₽
40

413803300 Synthetic Chaincase Oil, 12 X 355 ml

Synthetic Chaincase Oil, 12 X 355 ml

2 280 ₽
41

504152949 Housing Bearing

Housing Bearing

1 330 ₽
42

293350059 Ball Bearing

Ball Bearing

21 110 ₽
43

293300122 O-Ring

O-Ring

680 ₽
44

504152619 Magnetic Cap

Magnetic Cap

8 050 ₽
45

504152572 Circlip

Circlip

3 130 ₽
46

219700417 Synthetic Grease, 400 g

Synthetic Grease, 400 g

0 ₽
47

501026900 Flange

Flange

650 ₽
48

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
49

504152535 Ball Bearing

Ball Bearing

0 ₽
50

207784044 Bolt Carriage M8 X 40

Bolt Carriage M8 X 40

390 ₽
51

504152851 Counter Shaft

Counter Shaft

50 030 ₽
52

415129446 Drive Axle Ass'y. Includes 52 to 54

Drive Axle Ass'y. Includes 52 to 54

0 ₽
55

504152761 Track Ass'y, 16X154X1.5. Includes 55 to 57, Track 16X154X1.5

Track Ass'y, 16X154X1.5. Includes 55 to 57, Track 16X154X1.5

422 800 ₽
56

415129222 Cleat. Track 16X154X1.5

Cleat. Track 16X154X1.5

220 ₽
57

504152652 Cleat. Track 16X154X1.5

Cleat. Track 16X154X1.5

330 ₽
55

504152907 Track Ass'y, 16X137X1.2L. Includes 55 to 57, Track 16X137X1.2L

Track Ass'y, 16X137X1.2L. Includes 55 to 57, Track 16X137X1.2L

86 020 ₽
56

504152410 Guide. Track 16X137X1.2L

Guide. Track 16X137X1.2L

0 ₽
57

504152651 Cleat. Track 16X137X1.2L

Cleat. Track 16X137X1.2L

2 770 ₽
55

504152838 Track Ass'y, 15X137X1.2L. Includes 55 to 57, Track 15X137X1.2L

Track Ass'y, 15X137X1.2L. Includes 55 to 57, Track 15X137X1.2L

86 020 ₽
56

504152410 Guide. Track 15X137X1.2L

Guide. Track 15X137X1.2L

0 ₽
57

504152651 Cleat. Track 15X137X1.2L

Cleat. Track 15X137X1.2L

2 770 ₽
