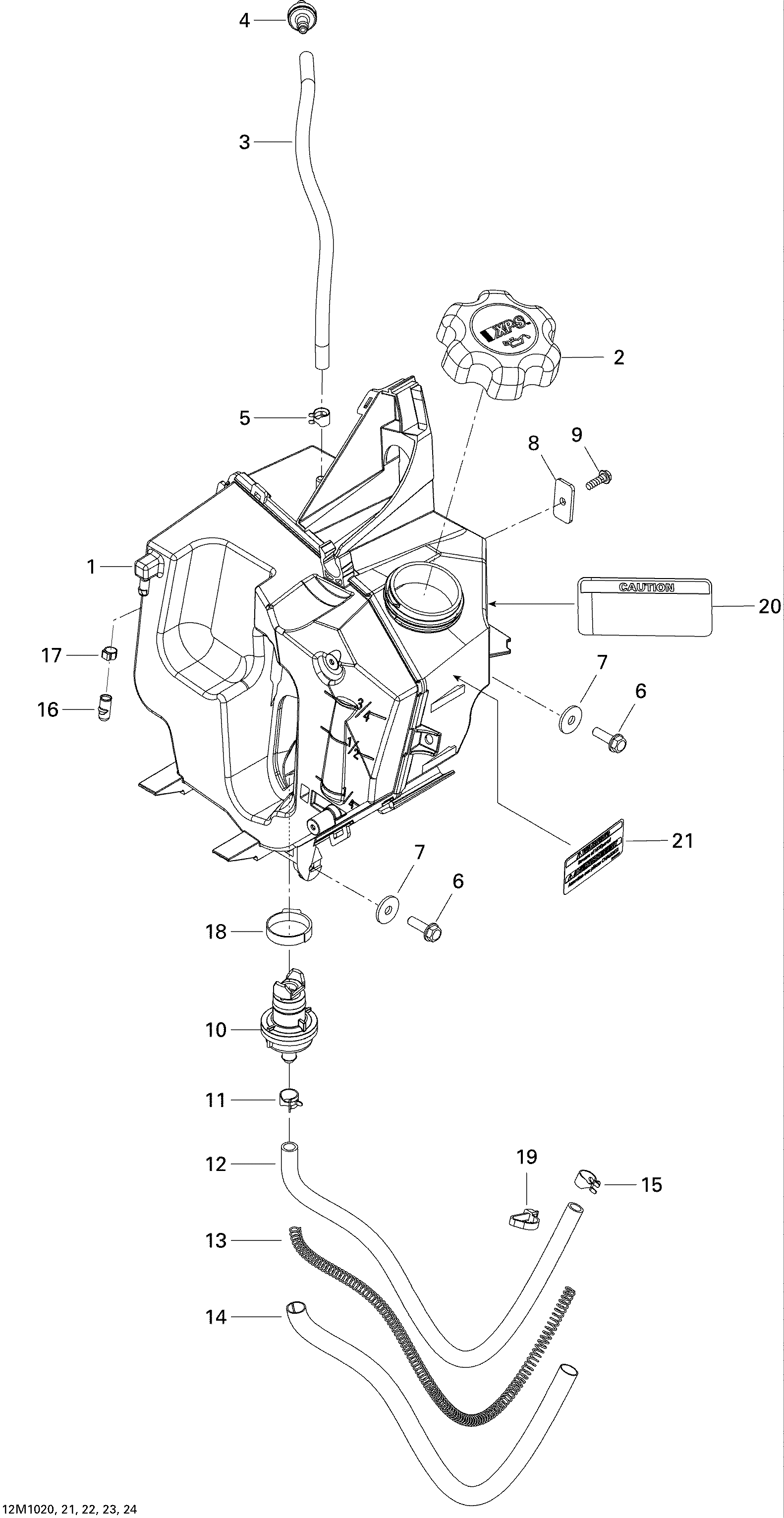

02- Oil System для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1519000238 Oil TankOil Tank
-
2519000194 CapCap
-
3415080200 Hose, PolyurethaneHose, Polyurethane
-
4275500398 Check ValveCheck Valve
-
5414554800 Spring ClampSpring Clamp
-
6250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
7224061201 Flat WasherFlat Washer
-
8519000179 BracketBracket
-
9241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
10519000242 Oil FilterOil Filter
-
11414415200 Universal Spring ClampUniversal Spring Clamp
-
12415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
13519000196 SpringSpring
-
14415079900 Tubing 10 mmTubing 10 mm
-
15414420700 Spring ClipSpring Clip
-
16519000216 CapCap
-
17293650043 ClipClip
-
18293650099 Oetiker Gear ClampOetiker Gear Clamp
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20516003913 Warning DecalWarning Decal
-
21516002965 Warning Decal, Hot Parts. TundraWarning Decal, Hot Parts. Tundra
