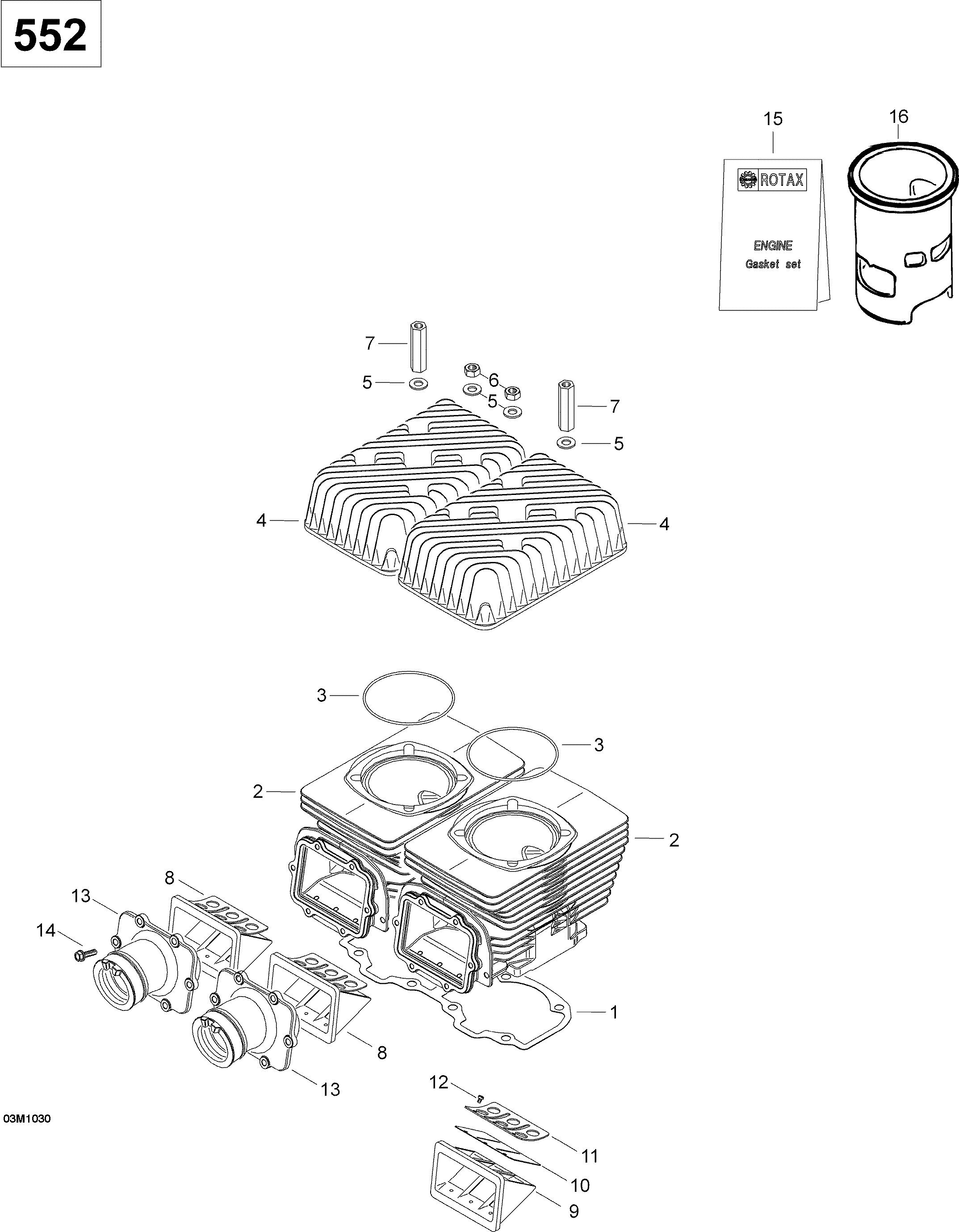

01- Cylinder and Cylinder Head для BRP Ski-Doo Skandic WT 550F - 2010
-
№АртикулНазвание
-
1420950910 Gasket 0.3Gasket 0.3
-
1420950911 Gasket 0.4Gasket 0.4
-
1420950912 Gasket 0.6Gasket 0.6
-
2420623142 Cylinder With SleeveCylinder With Sleeve
-
3293300026 O-RingO-Ring
-
4420923597 Head CylinderHead Cylinder
-
5420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
6232081414 Hex. Nut M8Hex. Nut M8
-
7420842203 Distance Nut M8 X 47Distance Nut M8 X 47
-
8420924519 Reed Valve Ass'y. Includes 8 to 12Reed Valve Ass'y. Includes 8 to 12
-
10420924532 Reed PedalReed Pedal
-
11420924539 Reed Pedal StopReed Pedal Stop
-
12420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
13420867105 Carburetor SocketCarburetor Socket
-
14420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
15420889911 Gasket Set, EngineGasket Set, Engine
