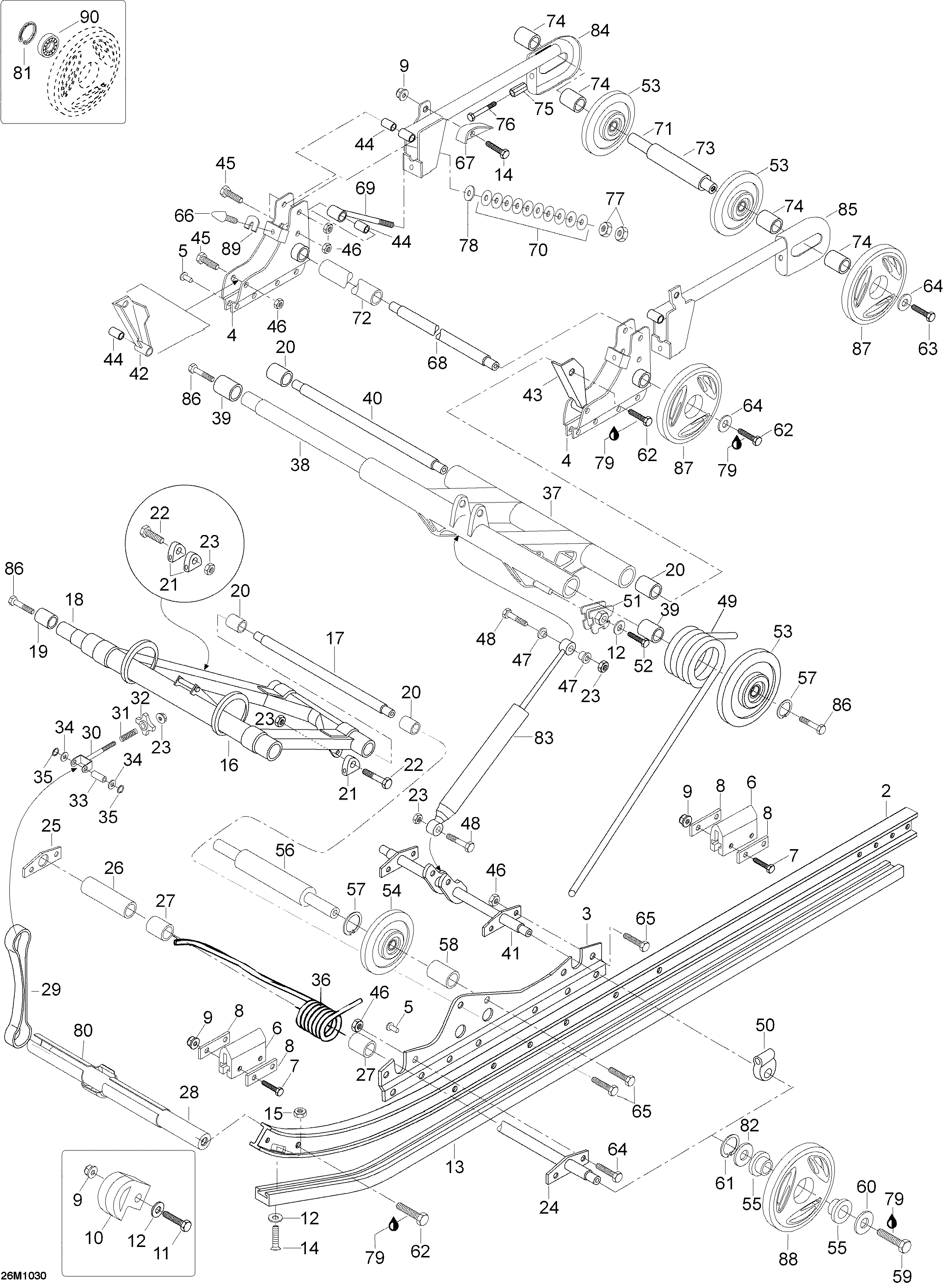

08- Rear Suspension для BRP Ski-Doo Skandic WT 550F - 2010
-
№АртикулНазвание
-
2M5142864 RunnerRunner
-
3M5344811 RH SupportRH Support
-
3M5344810 LH SupportLH Support
-
4M539673 RH SupportRH Support
-
4M539672 LH SupportLH Support
-
5M544212 RivetRivet
-
6570023100 Rubber StopperRubber Stopper
-
7207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
8M548387 WasherWasher
-
9M33200 Nut M6Nut M6
-
10605348954 Runner ProtectorRunner Protector
-
11207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
12234061410 Flat Washer 6 mmFlat Washer 6 mm
-
13M549582 Runner ShoeRunner Shoe
-
14207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16605255303 Welded Front ArmWelded Front Arm
-
17M549695 AxleAxle
-
18M542793 AxleAxle
-
19M542770 SleeveSleeve
-
20M542770 SleeveSleeve
-
21M548799 Spring SupportSpring Support
-
22207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
23233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
24M5345453 AxleAxle
-
25M548469 Plate SupportPlate Support
-
26M5440313 SleeveSleeve
-
27M548841 SleeveSleeve
-
28M549718 Cross ShaftCross Shaft
-
29605454841 Stopper StrapStopper Strap
-
30M5441643 Bolt-Eye AdjusterBolt-Eye Adjuster
-
31414460600 SpringSpring
-
32572034000 Adjuster KnobAdjuster Knob
-
33M5441645 PinPin
-
34234001410 Flat Washer 10 mmFlat Washer 10 mm
-
35M41035 CirclipCirclip
-
36605354840 RH Front Arm SpringRH Front Arm Spring
-
36605354839 LH Spring Front ArmLH Spring Front Arm
-
37M5343493 Rear Arm WeldedRear Arm Welded
-
38M5343492 ShaftShaft
-
39M31023 CushionCushion
-
40M549656 AxleAxle
-
41M5345454 ShaftShaft
-
42M5440350 RH LeverRH Lever
-
43M5440349 LH LeverLH Lever
-
44M545758 SleeveSleeve
-
45207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
46232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
47M544417 CushionCushion
-
48207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
49M538806 RH SpringRH Spring
-
49M538805 LH SpringLH Spring
-
50M5442112 Spring SupportSpring Support
-
51572030800 LH Adjust CamLH Adjust Cam
-
51572030900 RH Adjust CamRH Adjust Cam
-
52207161044 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
53503189579 Wheel 165Wheel 165
-
54503190798 Wheel 139 mm Ass'yWheel 139 mm Ass'y
-
55503189534 CushionCushion
-
56M549680 Support ShaftSupport Shaft
-
57M31001 CirclipCirclip
-
58M546577 SleeveSleeve
-
59M40336 Screw M8 X 20Screw M8 X 20
-
60503183100 WasherWasher
-
61M31007 CirclipCirclip
-
62M40335 ScrewScrew
-
63M40050 Hex. Screw With Nylon PatchHex. Screw With Nylon Patch
-
64503183300 WasherWasher
-
65207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
66M535455 Rubber StopperRubber Stopper
-
67M548262 ProtectorProtector
-
68M541816 ShaftShaft
-
69M5440377 Eye Bolt AdjusterEye Bolt Adjuster
-
70M25004 Spring PlateSpring Plate
-
71M5343284 ShaftShaft
-
72M541815 SleeveSleeve
-
73M5443285 SleeveSleeve
-
74M546577 SleeveSleeve
-
75605633002 SpacerSpacer
-
76230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
77232006414 Hex. Nut M10Hex. Nut M10
-
78M20011 WasherWasher
-
79293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
80605349381 LimiterLimiter
-
81371901700 CirclipCirclip
-
82M31091 ShimShim
-
83503189997 ShockShock
-
84605252505 Extension Weldeld RHExtension Weldeld RH
-
85605252504 Extension Weldeld LHExtension Weldeld LH
-
86M40314 Screw M10 X 30Screw M10 X 30
-
87503190817 Wheel 165 mm YellowWheel 165 mm Yellow
-
88503190815 Wheel 139 mmWheel 139 mm
-
90293350055 Ball BearingBall Bearing
-
89M5440645 Adjusment PlateAdjusment Plate
