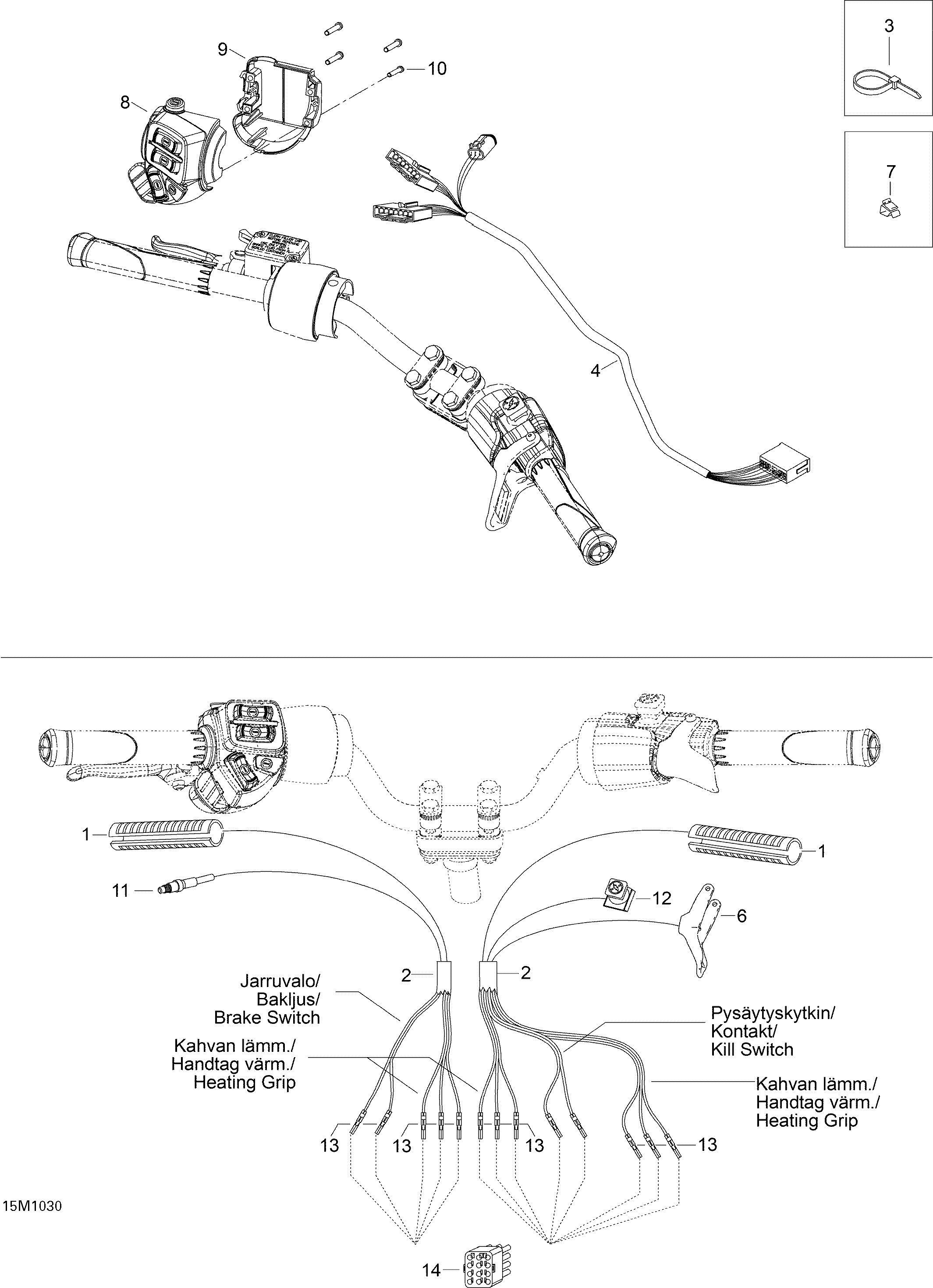

10- Steering Wiring Harness для BRP Ski-Doo Skandic WT 550F - 2010
-
№АртикулНазвание
-
1515176139 Heater ElementHeater Element
-
3M27100 Tie Rap 290 mmTie Rap 290 mm
-
4605353266 Steering harnessSteering harness
-
5605354843 Main Harness. Not ShownMain Harness. Not Shown
-
6512060214 Handle AssyHandle Assy
-
7414227300 ClipClip
-
8515175771 Switch HousingSwitch Housing
-
9515175926 Housing Switch PlateHousing Switch Plate
-
11507032366 MicroswitchMicroswitch
-
12548872536 Kill SwitchKill Switch
-
13605642628 ConnectorConnector
-
14M42617 Male Connector HousingMale Connector Housing
