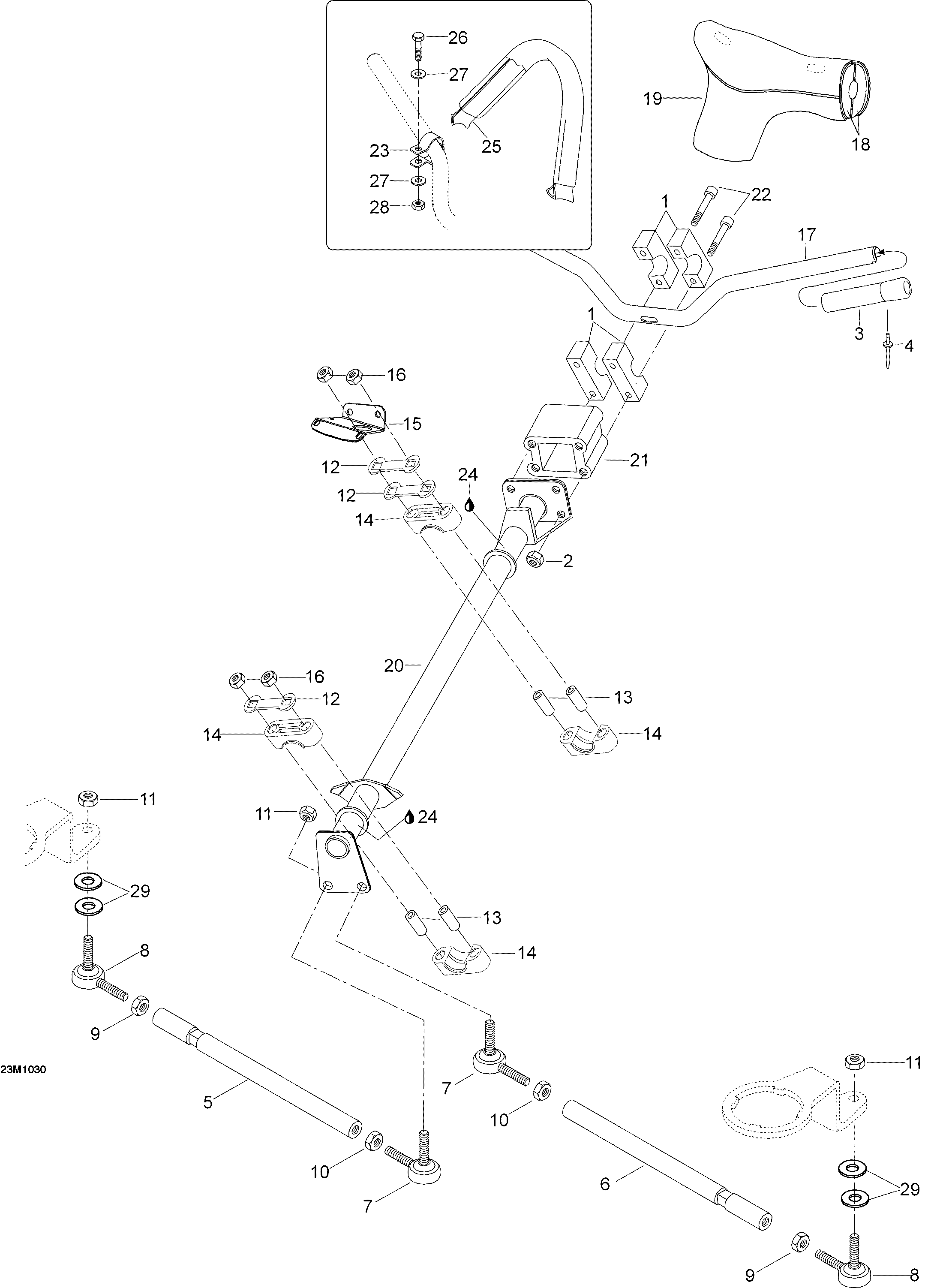

07- Steering для BRP Ski-Doo Skandic WT 550F - 2010
-
№АртикулНазвание
-
1M548448 Steering ClampSteering Clamp
-
2232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
3M5340464 Grip HandleGrip Handle
-
4M36005 RivetRivet
-
5605455619 Tie RodTie Rod
-
6605455620 Tie RodTie Rod
-
7506151845 LH Joint BallLH Joint Ball
-
8506151492 RH Ball JointRH Ball Joint
-
9M33019 RH NutRH Nut
-
10M33017 LH NutLH Nut
-
11232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
12506150600 Stopper PlateStopper Plate
-
13506150500 Housing BushingHousing Bushing
-
14506150400 Housing HalfHousing Half
-
15605352322 Console HolderConsole Holder
-
16M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
17605251368 Handle BarHandle Bar
-
18605252111 Foam, RearFoam, Rear
-
18605252110 Foam, FrontFoam, Front
-
19605254571 Steering CoverSteering Cover
-
20605255608 Main TubeMain Tube
-
21605349584 ExtensionExtension
-
22M40124 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
23506151792 Support Plate, BlackSupport Plate, Black
-
24293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
25506152115 Strap Ass'yStrap Ass'y
-
26207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
27234061410 Flat Washer 6 mmFlat Washer 6 mm
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29M31014 WasherWasher
