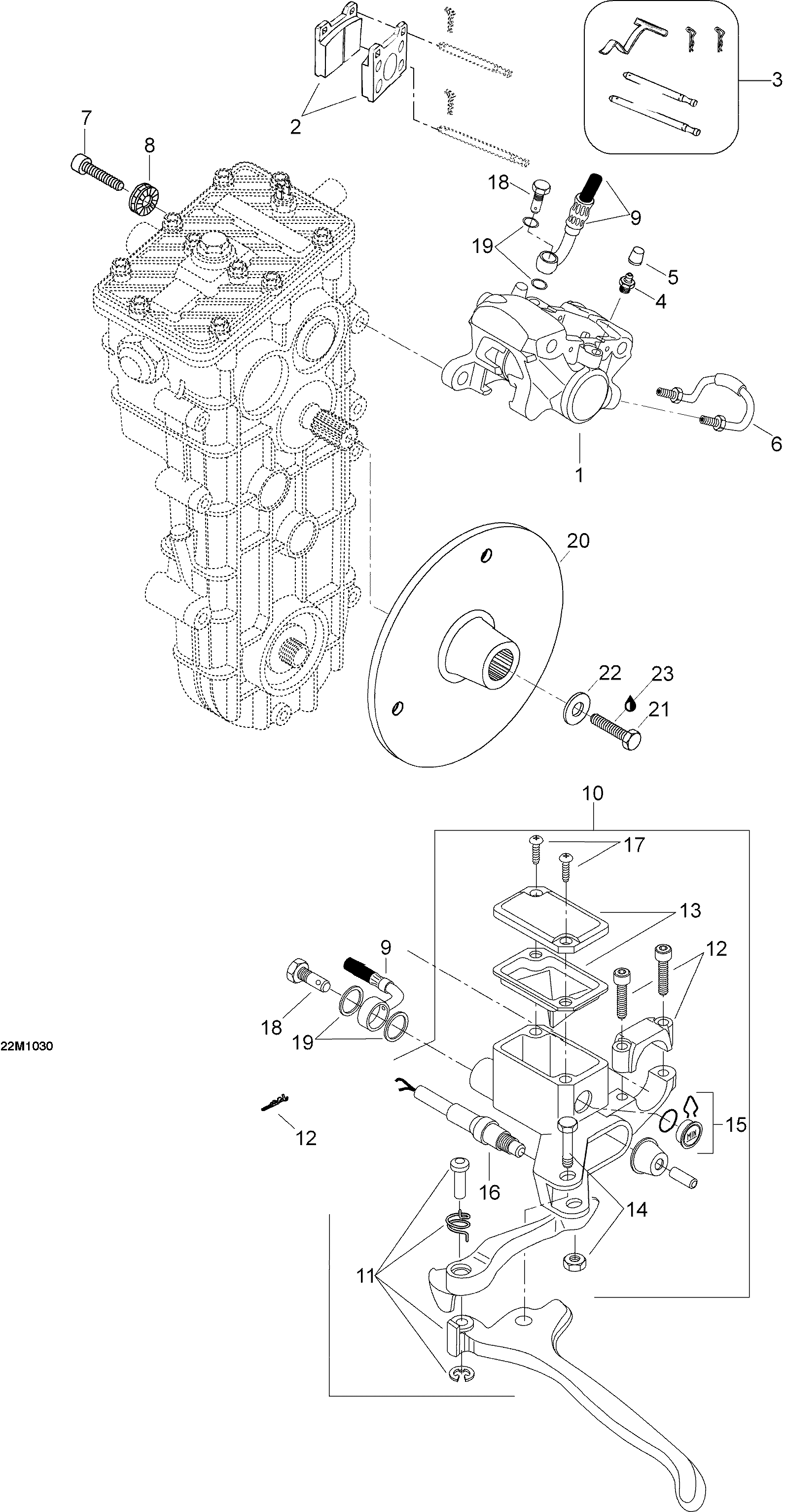

06- Hydraulic Brakes для BRP Ski-Doo Skandic WT 550F - 2010
-
№АртикулНазвание
-
1507032409 Caliper. Includes 1 to 6Caliper. Includes 1 to 6
-
2415084600 Brake Pad KitBrake Pad Kit
-
3414990700 Kit, pins, Retainers, SpringKit, pins, Retainers, Spring
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7M40277 Socket Head Screw M10 X 65Socket Head Screw M10 X 65
-
8M20068 Lock WasherLock Washer
-
9507032237 HoseHose
-
10507032408 Master Cylinder Ass'y. Includes 10 to 17Master Cylinder Ass'y. Includes 10 to 17
-
11507032423 Brake Lever Ass'yBrake Lever Ass'y
-
12507032477 Clamp And Screw KitClamp And Screw Kit
-
13415029900 CapCap
-
14415030000 Pin Ass'yPin Ass'y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17216141260 Screw M4 X 12Screw M4 X 12
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20605353250 Brake DiscBrake Disc
-
21M40336 Screw M8 X 20Screw M8 X 20
-
22M546336 WasherWasher
-
23293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
