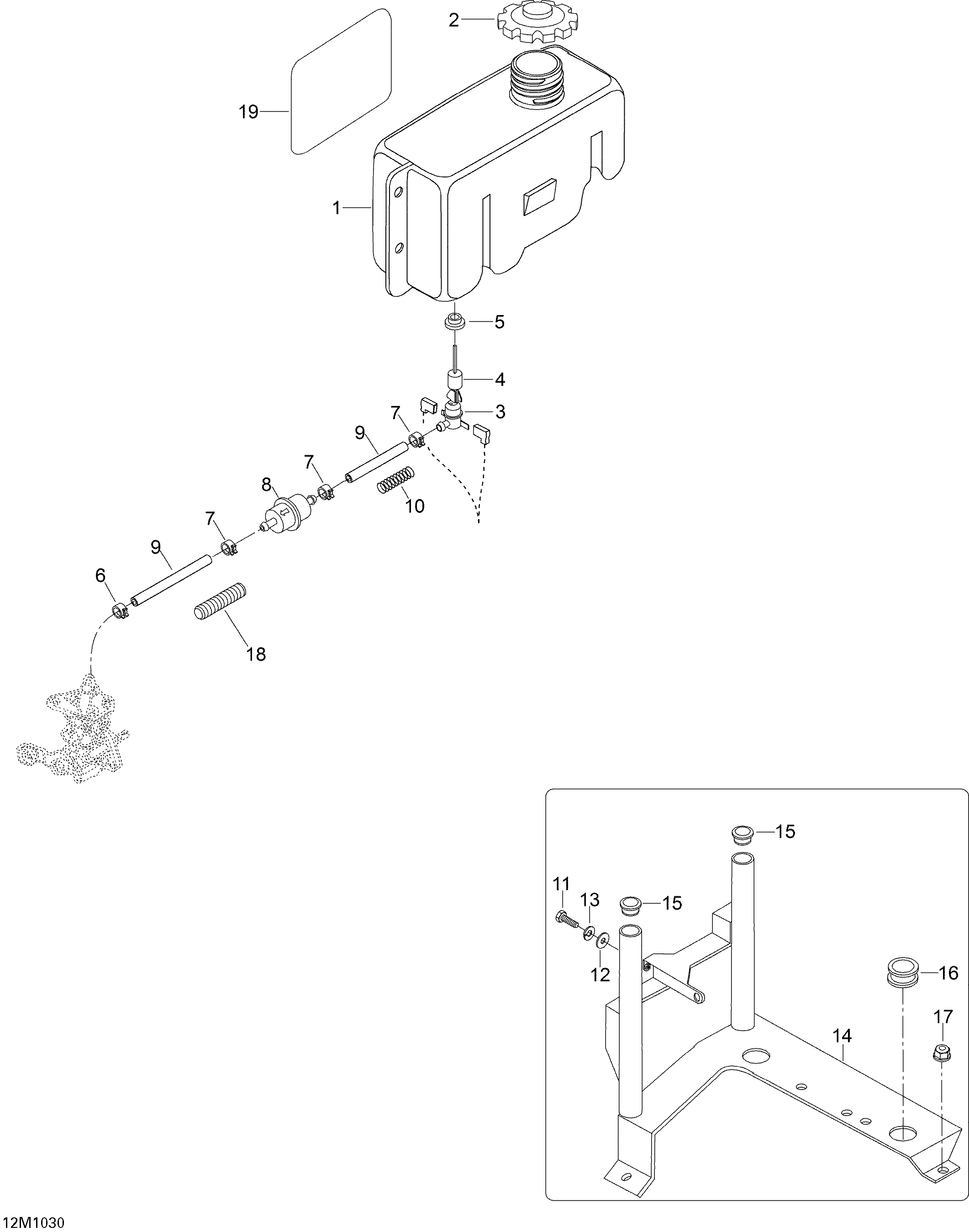

02- Oil System для BRP Ski-Doo Skandic WT 550F - 2010
-
№АртикулНазвание
-
1M5142700 Oil TankOil Tank
-
2519000044 CapCap
-
3605452095 Oil SensorOil Sensor
-
5570023000 Insulating RingInsulating Ring
-
6414420700 Spring ClipSpring Clip
-
7414415200 Universal Spring ClampUniversal Spring Clamp
-
8414536500 FilterFilter
-
9415080700 LineLine
-
10519000065 SpringSpring
-
11207161044 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13234161471 Lock Washer M6, BlackLock Washer M6, Black
-
14605355528 Oil Tank SupportOil Tank Support
-
15M28136 PlugPlug
-
16M5446766 GrommetGrommet
-
17M33200 Nut M6Nut M6
-
18M28015 HousingHousing
-
19M5443578 Reflecting SheetReflecting Sheet
