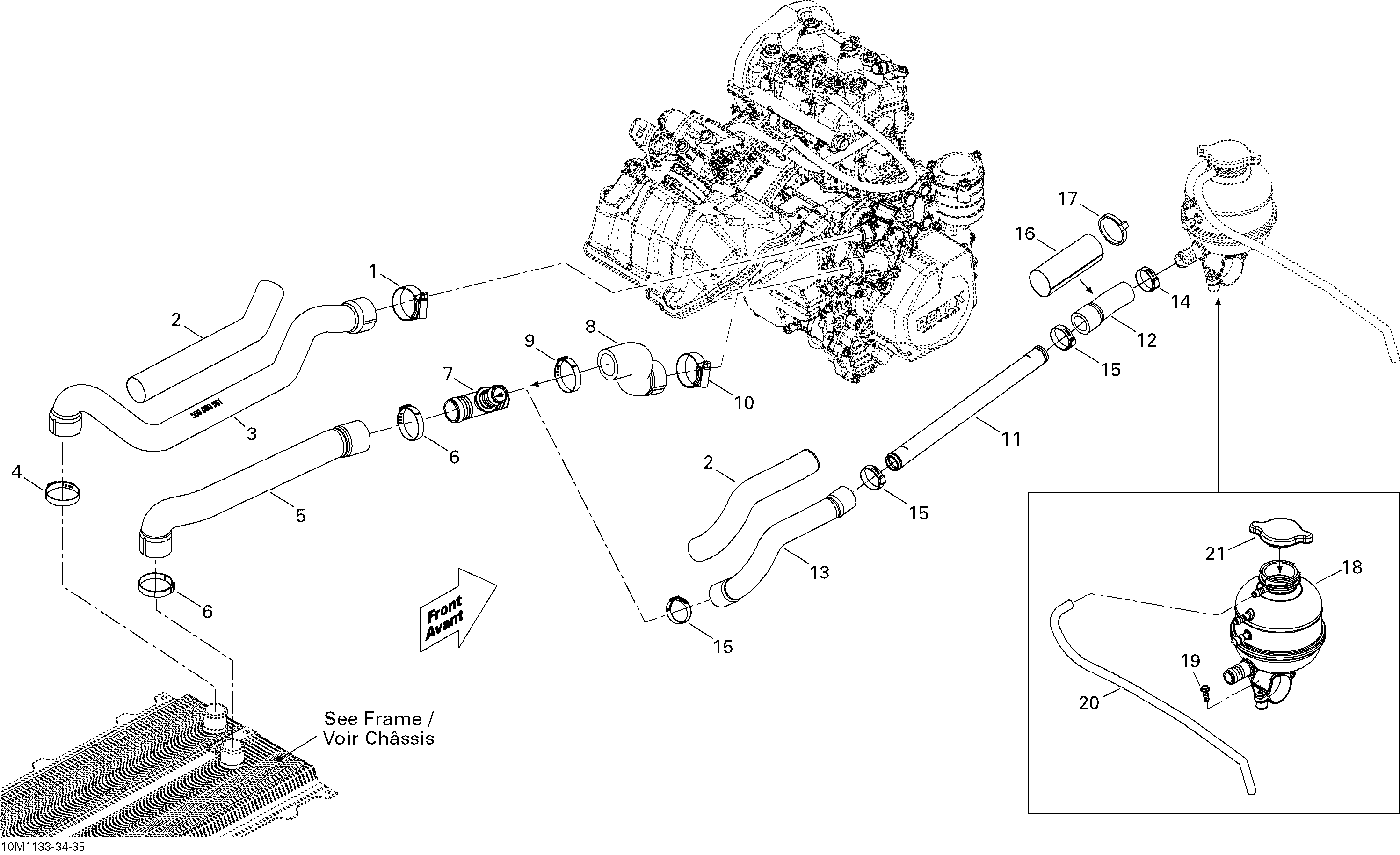

01- Cooling System для BRP Ski-Doo MXZ TNT 600ACE - 2011
-
№АртикулНазвание
-
1509000443 Aba Gear ClampAba Gear Clamp
-
2509000513 Protector Tube 32 mmProtector Tube 32 mm
-
3509000561 Engine Outlet HoseEngine Outlet Hose
-
4509000529 Oetiker Gear ClampOetiker Gear Clamp
-
5509000697 Radiator Return HoseRadiator Return Hose
-
6509000529 Oetiker Gear ClampOetiker Gear Clamp
-
7509000372 T-FittingT-Fitting
-
8509000565 Engine Inlet HoseEngine Inlet Hose
-
9509000529 Oetiker Gear ClampOetiker Gear Clamp
-
10509000443 Aba Gear ClampAba Gear Clamp
-
11509000644 PipePipe
-
12509000698 Hose-RadiatorHose-Radiator
-
13509000563 HoseHose
-
14509000442 Oetiker Gear ClampOetiker Gear Clamp
-
15293650099 Oetiker Gear ClampOetiker Gear Clamp
-
16509000730 Protector Tube 31.75 Mm - 90mmProtector Tube 31.75 Mm - 90mm
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18509000421 Coolant TankCoolant Tank
-
19241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
20276000048 Hose 6 mmHose 6 mm
-
21509000180 Pressure CapPressure Cap
