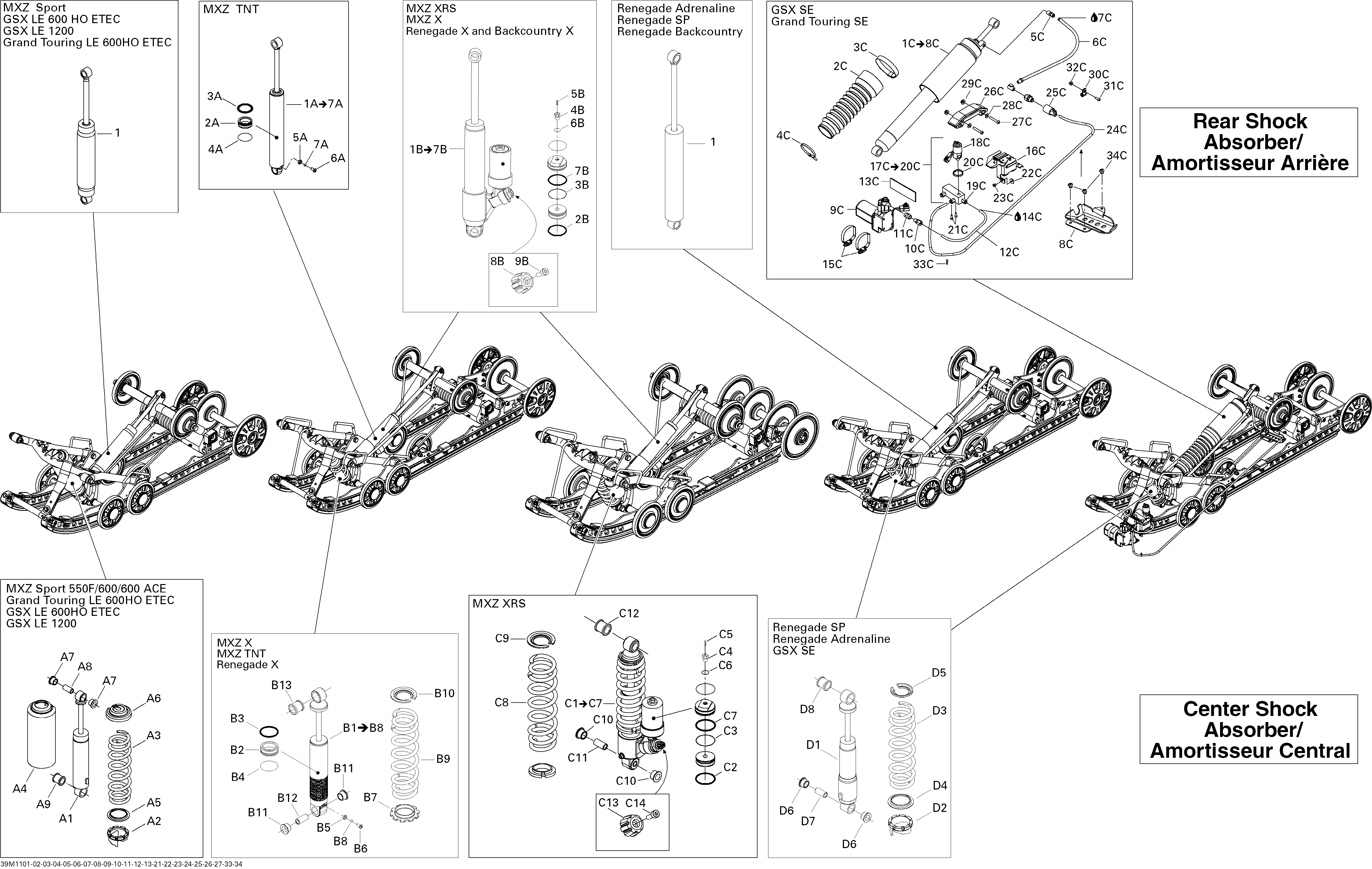

08- Rear Suspension Shocks для BRP Ski-Doo MXZ TNT 600ACE - 2011
-
№АртикулНазвание
-
1a503192120 Rear Shock. Includes 1A to 7ARear Shock. Includes 1A to 7A
-
2a503189309 Free PistonFree Piston
-
3a414888312 O-RingO-Ring
-
4a503189308 Piston RingPiston Ring
-
5a505070398 Air Valve RingAir Valve Ring
-
6a505070399 ScrewScrew
-
7A505070400 O-RingO-Ring
-
B1503191791 Center Shock. Includes B1 to B8Center Shock. Includes B1 to B8
-
B2503189309 Free PistonFree Piston
-
B3414888312 O-RingO-Ring
-
B4503189308 Piston RingPiston Ring
-
B5505070398 Air Valve RingAir Valve Ring
-
B6505070399 ScrewScrew
-
B7414888316 Spring CollarSpring Collar
-
B8505070400 O-RingO-Ring
-
B9503191879 SpringSpring
-
B10503192029 Spring StopperSpring Stopper
-
B11503189117 CushionCushion
-
B12503189282 BushingBushing
-
B13503189271 CushionCushion
