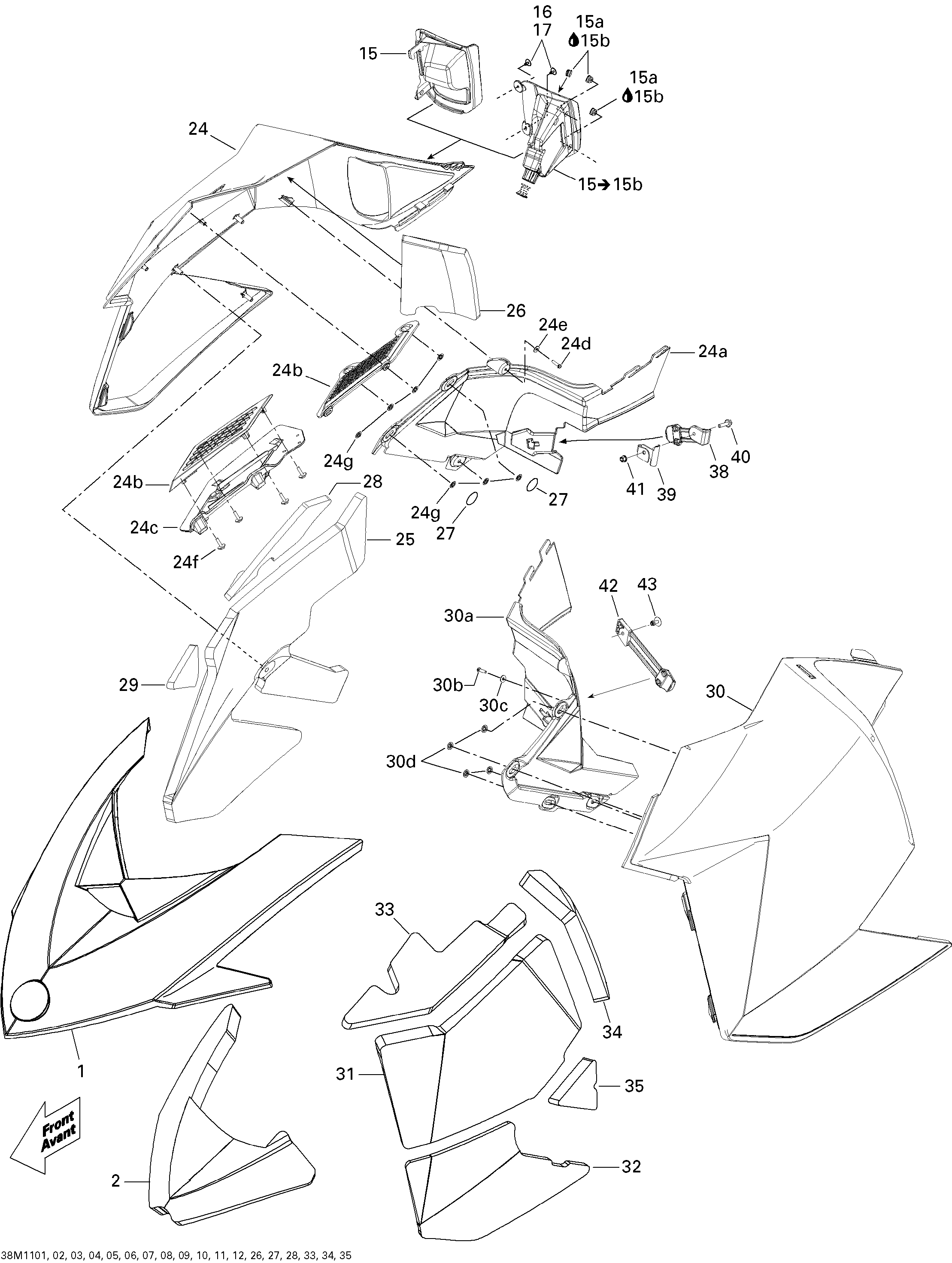

09- Hood для BRP Ski-Doo MXZ TNT 600ACE - 2011
-
№АртикулНазвание
-
1517304492 HoodHood
-
2517304881 Hood FoamHood Foam
-
15517304500 RH ConsoleRH Console
-
24517304029 RH Panel, Deep BlackRH Panel, Deep Black
-
24a517304424 RH Moulding PanelRH Moulding Panel
-
24b517304763 External GrillExternal Grill
-
24c517304764 Internal GrillInternal Grill
-
24d241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
24e234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
24f250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
24g732610072 Push NutPush Nut
-
25517304883 RH Center FoamRH Center Foam
-
26517304884 RH Panel Rear FoamRH Panel Rear Foam
-
27518325560 Adhesive PatchAdhesive Patch
-
30517304030 LH Panel, Deep BlackLH Panel, Deep Black
-
30a517304431 LH Moulding PanelLH Moulding Panel
-
30b241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
30c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
30d732610072 Push NutPush Nut
-
31517304887 LH Panel Center FoamLH Panel Center Foam
-
32517304888 LH Panel Lower FoamLH Panel Lower Foam
-
33517304889 LH Panel Upper FoamLH Panel Upper Foam
-
34517304890 LH Panel Rear FoamLH Panel Rear Foam
-
35517304891 FoamFoam
-
38517304551 Panel LatchPanel Latch
-
42517303808 Panel LatchPanel Latch
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
