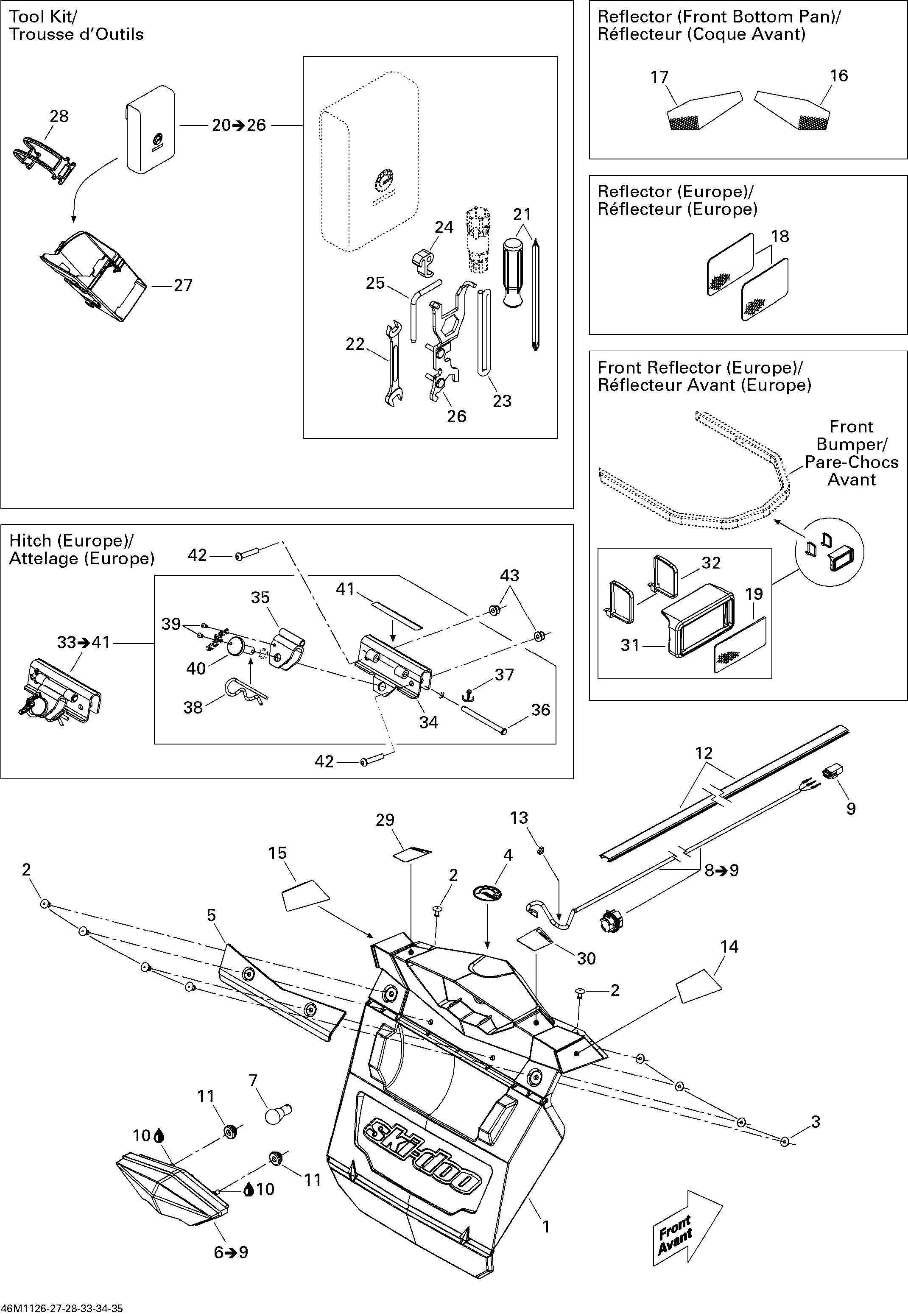

09- Utilities для BRP Ski-Doo MXZ TNT 600ACE - 2011
-
№АртикулНазвание
-
1520000702 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000587 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000758 BulbBulb
-
8520000677 Wiring Harness. Includes 8 to 9Wiring Harness. Includes 8 to 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11705003666 Rubber GrommetRubber Grommet
-
13293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
14520000716 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
15520000717 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
16520000718 RH Front ReflectorRH Front Reflector
-
17520000719 LH Front ReflectorLH Front Reflector
-
20529000054 Tool Kit. Includes 20 to 26Tool Kit. Includes 20 to 26
-
21529000004 Screw DriverScrew Driver
-
22529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
23412500200 Starter Rope, MeterStarter Rope, Meter
-
24529019400 Starter GripStarter Grip
-
25520001028 Spacing ToolSpacing Tool
-
26520000988 Wrench SuspensionWrench Suspension
-
27520000894 Tool Kit RackTool Kit Rack
-
28520000528 LatchLatch
-
29516004550 Warning Decal, SecurityWarning Decal, Security
-
30516004601 Warning Decal, SecurityWarning Decal, Security
