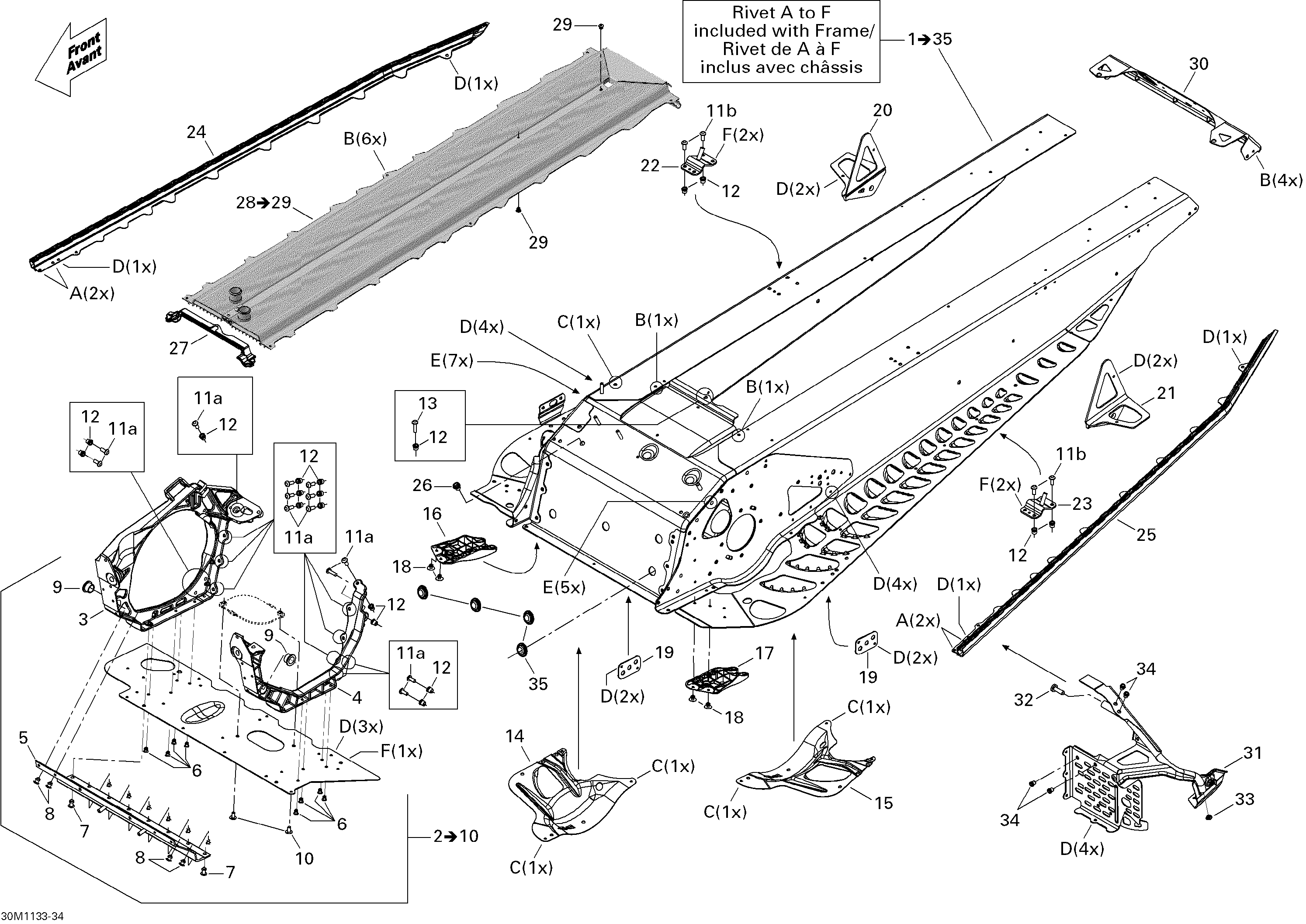

09- Frame для BRP Ski-Doo MXZ TNT 600ACE - 2011
-
№АртикулНазвание
-
1415129584 Frame Ass'y, 120''. Includes 1 to 35Frame Ass'y, 120''. Includes 1 to 35
-
2518326653 E-Module Ass'y. Includes 2 to 10E-Module Ass'y. Includes 2 to 10
-
3518326444 RH MemberRH Member
-
4518326446 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505070954 CushionCushion
-
10250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
11a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14518324874 RH ReinforcementRH Reinforcement
-
15518324875 LH ReinforcementLH Reinforcement
-
16518325782 RH DeflectorRH Deflector
-
17518325783 LH DeflectorLH Deflector
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19518201321 Reinforcement PlateReinforcement Plate
-
20518324885 RH Slide BracketRH Slide Bracket
-
21518324886 LH Slide BracketLH Slide Bracket
-
22518325973 RH Rear BaseRH Rear Base
-
23518325974 LH Rear BaseLH Rear Base
-
24518324812 RH RollerRH Roller
-
25518324813 LH RollerLH Roller
-
26415107300 InsertInsert
-
27518326656 SealSeal
-
28518326666 Rear Radiator Ass'y. Includes 28 to 29Rear Radiator Ass'y. Includes 28 to 29
-
29293150144 Stavex RivetStavex Rivet
-
30518325421 Rear CapRear Cap
-
31518326239 LH StirupLH Stirup
-
32250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
33293730042 DartDart
-
34293450268 InsertInsert
-
35293730052 Plug, BlackPlug, Black
-
A390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
B390909200 Avex RivetAvex Rivet
-
C390909100 Avex RivetAvex Rivet
-
D293150144 Stavex RivetStavex Rivet
-
E293150146 Henrob RivetHenrob Rivet
-
F293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
