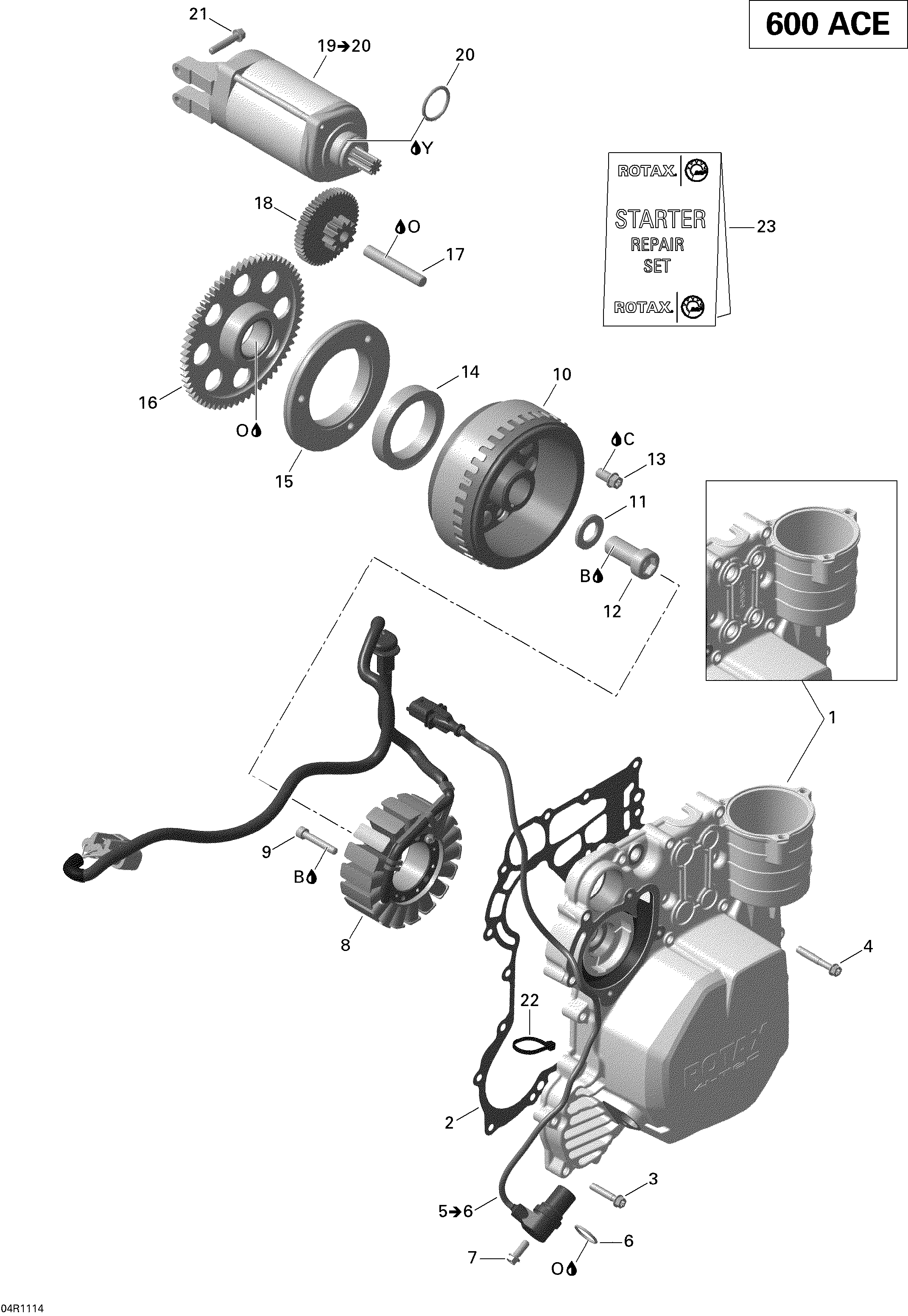

03- Magneto And Electric Starter TNT для BRP Ski-Doo MXZ TNT 600ACE - 2011

№

Артикул

Название
1

420911050 Cover

Cover

17 340 ₽
2

420431640 Gasket

Gasket

7 230 ₽
3

420440647 Flanged Torx Screw M6 X 30

Flanged Torx Screw M6 X 30

740 ₽
4

420440282 Flanged Torx Screw M6 X 40

Flanged Torx Screw M6 X 40

1 120 ₽
5

420966570 Crankshaft Position Sensor Ass'y. Includes 5 to 6

Crankshaft Position Sensor Ass'y. Includes 5 to 6

49 280 ₽
6

420431580 O-Ring

O-Ring

2 400 ₽
7

420440162 Flanged Torx Screw M6 X 16

Flanged Torx Screw M6 X 16

1 120 ₽
8

420296908 Stator Plate 420W

Stator Plate 420W

86 800 ₽
9

420241956 Allen Screw M6 X 40

Allen Screw M6 X 40

300 ₽
10

420685700 Magneto Flywheel 420W

Magneto Flywheel 420W

52 900 ₽
11

420627270 Shim

Shim

1 080 ₽
12

420241549 Socket Head Screw M16 X 35

Socket Head Screw M16 X 35

2 230 ₽
13

420440854 Flanged Torx Screw M8 X 16

Flanged Torx Screw M8 X 16

1 540 ₽
14

420659113 Sprag Clutch

Sprag Clutch

25 650 ₽
15

420659261 Sprag Clutch Housing

Sprag Clutch Housing

14 090 ₽
16

420434235 Free Wheel Gear, 64 Teeth

Free Wheel Gear, 64 Teeth

65 770 ₽
17

420229475 Needle Pin

Needle Pin

3 900 ₽
18

420634741 Double Gear

Double Gear

17 890 ₽
19

420892423 Starter Ass'y. Includes 19 to 20

Starter Ass'y. Includes 19 to 20

0 ₽
20

420250140 O-Ring

O-Ring

3 000 ₽
21

420440647 Flanged Torx Screw M6 X 30

Flanged Torx Screw M6 X 30

740 ₽
22

420866714 Tie Rap

Tie Rap

670 ₽
23

420881140 Carbon Brush Set

Carbon Brush Set

4 890 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
C

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
Y

420297616 Klueber Paste, 46 MR 401, 60 g

Klueber Paste, 46 MR 401, 60 g

2 860 ₽
