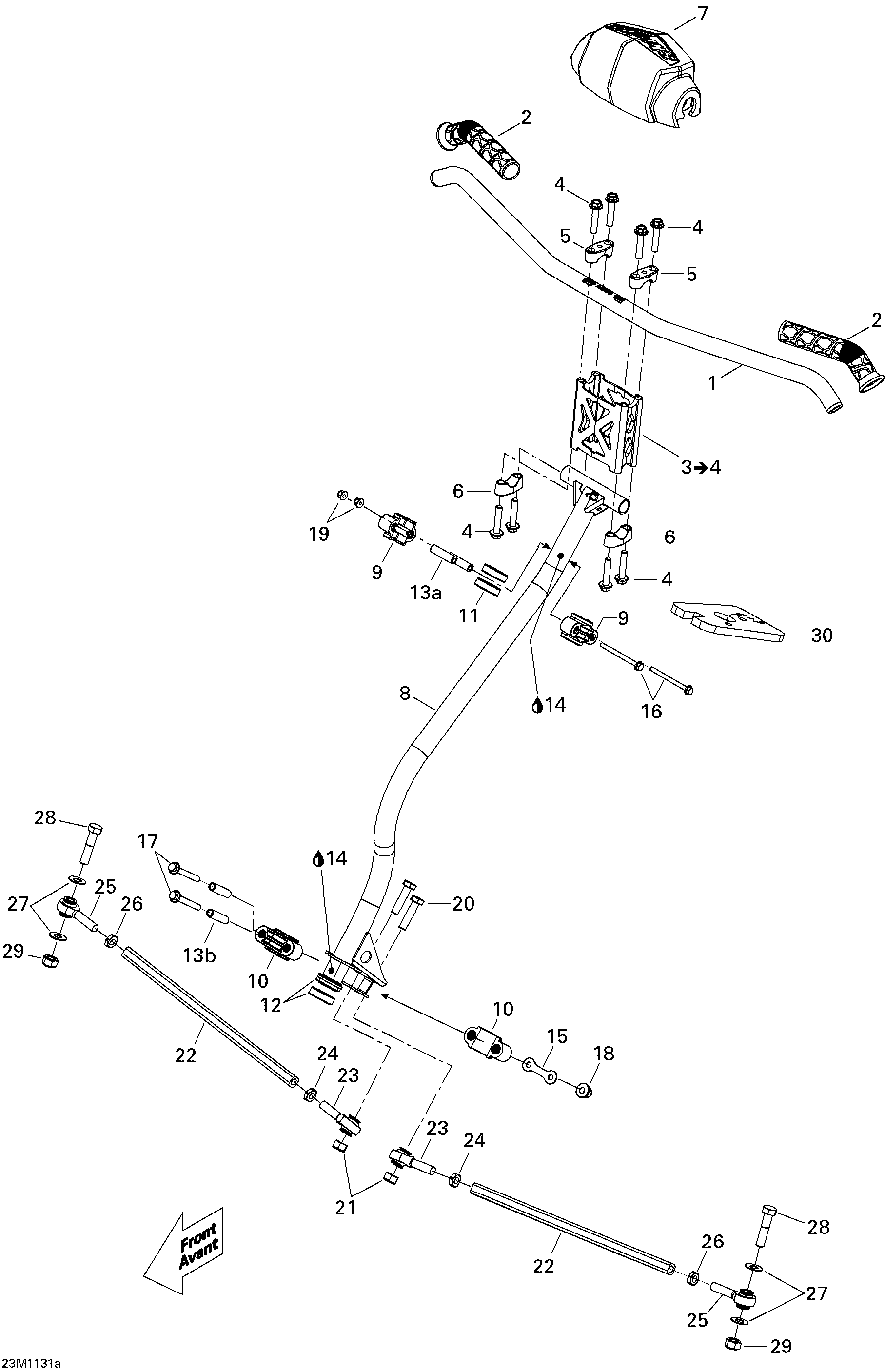

07- Steering STD для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011
-
№АртикулНазвание
-
1506152362 HandlebarHandlebar
-
2506152226 GripGrip
-
3860200268 Handlebar Extension Kit. Includes 3 to 4Handlebar Extension Kit. Includes 3 to 4
-
4250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
5506152395 Steering SupportSteering Support
-
6506152395 Steering SupportSteering Support
-
7506152192 Steering PadSteering Pad
-
8506152473 Main TubeMain Tube
-
9506152508 Upper Half-HousingUpper Half-Housing
-
10506152217 Lower Half-HousingLower Half-Housing
-
11506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
12506152518 Lower Vibration RingLower Vibration Ring
-
13a506152297 Housing BushingHousing Bushing
-
13b506152388 Lower Housing BushingLower Housing Bushing
-
14293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
15506152389 Stopper PlateStopper Plate
-
16207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
17207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
21232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
22506152377 Tie RodTie Rod
-
23506152081 LH Thread Ball JointLH Thread Ball Joint
-
24250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
25506152019 RH Thread Ball JointRH Thread Ball Joint
-
26732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
27506152194 WasherWasher
-
28207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
29232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
30506152521 CushionCushion
