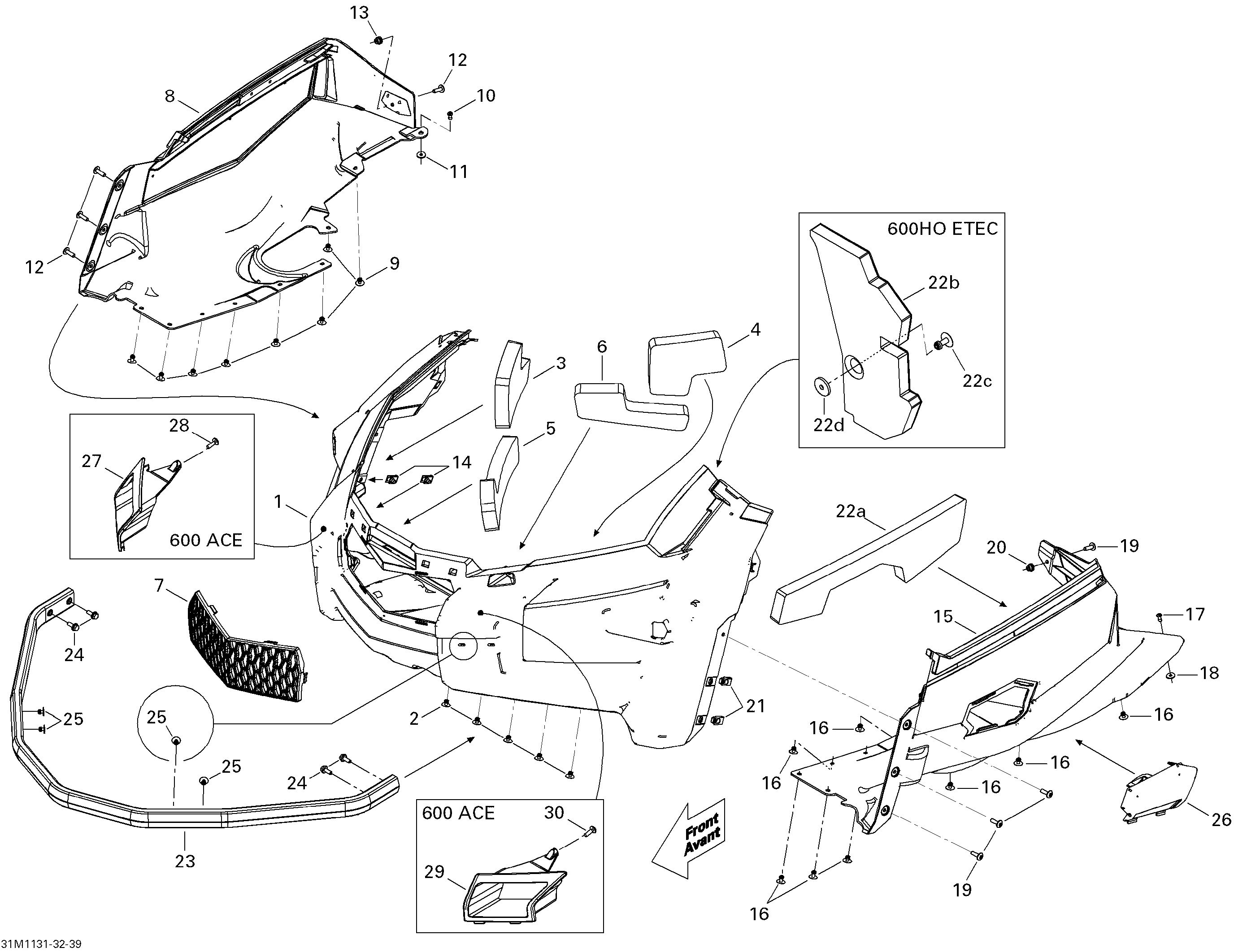

09- Bottom Pan для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011
-
№АртикулНазвание
-
1502007149 Bottom PanBottom Pan
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502007204 RH Upper FoamRH Upper Foam
-
4502007205 LH Upper FoamLH Upper Foam
-
5502007206 RH Lower FoamRH Lower Foam
-
6502007207 LH Lower FoamLH Lower Foam
-
7502006887 Botton Pan GrillBotton Pan Grill
-
8502006965 RH Bottom PanRH Bottom Pan
-
9293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
11517124300 WasherWasher
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13415107300 InsertInsert
-
14250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
15502006966 LH Bottom PanLH Bottom Pan
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
18517124300 WasherWasher
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20415107300 InsertInsert
-
21250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
22a502007208 LH Bottom Pan FoamLH Bottom Pan Foam
-
23502006963 Anodized- Front BumperAnodized- Front Bumper
-
24207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26502006970 Bottom Pan DoorBottom Pan Door
