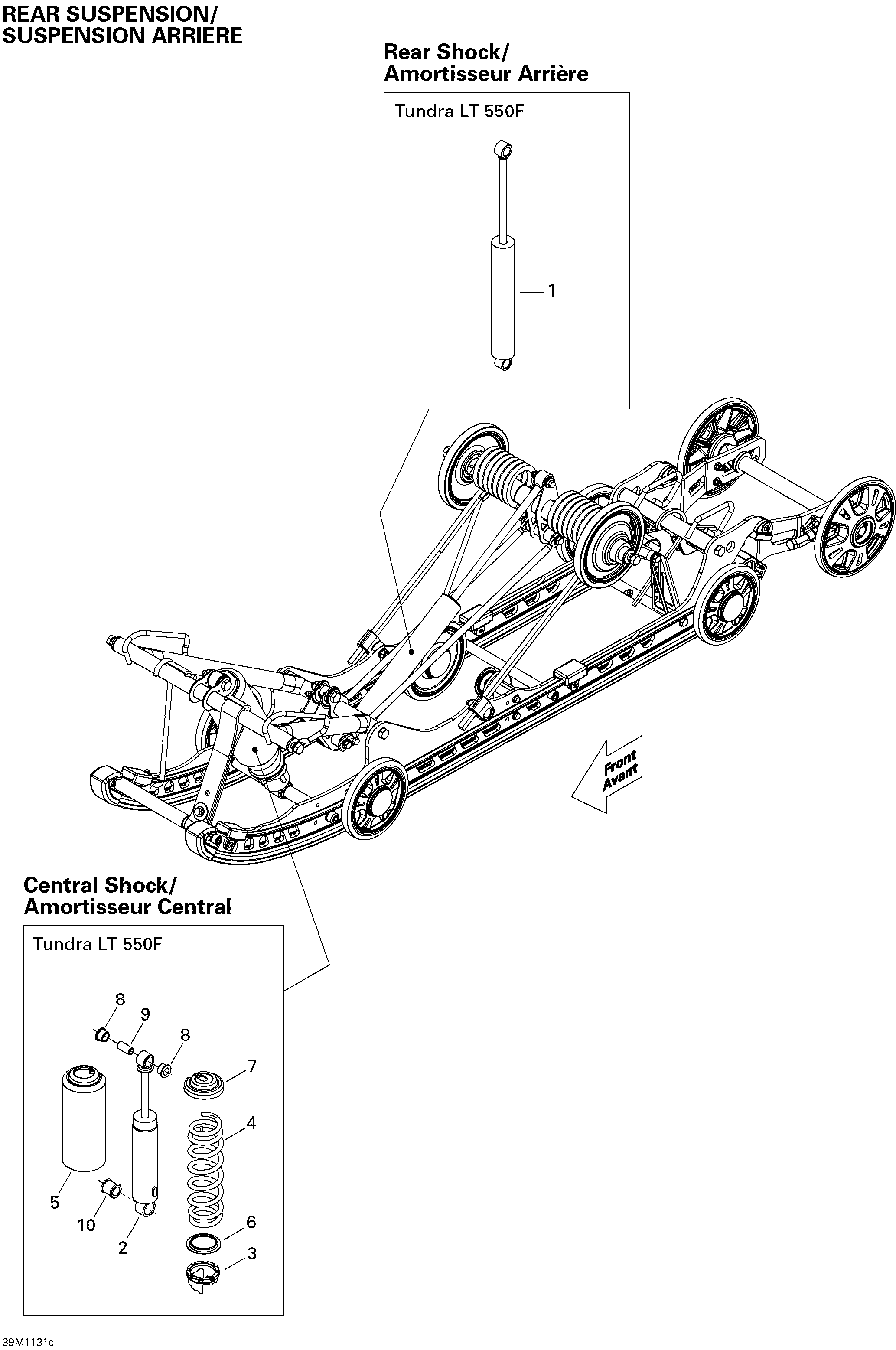

08- Rear Suspension Shocks LT 154'' 550F для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011
-
№АртикулНазвание
-
1503192294 Rear Shock HPG. TUNDRA&P-LTRear Shock HPG. TUNDRA&P-LT
-
2503192266 Center ShockCenter Shock
-
3505070150 Adjustment CamAdjustment Cam
-
4503191882 SpringSpring
-
5503191126 ProtectorProtector
-
6503191872 Spring GuideSpring Guide
-
7706200881 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
