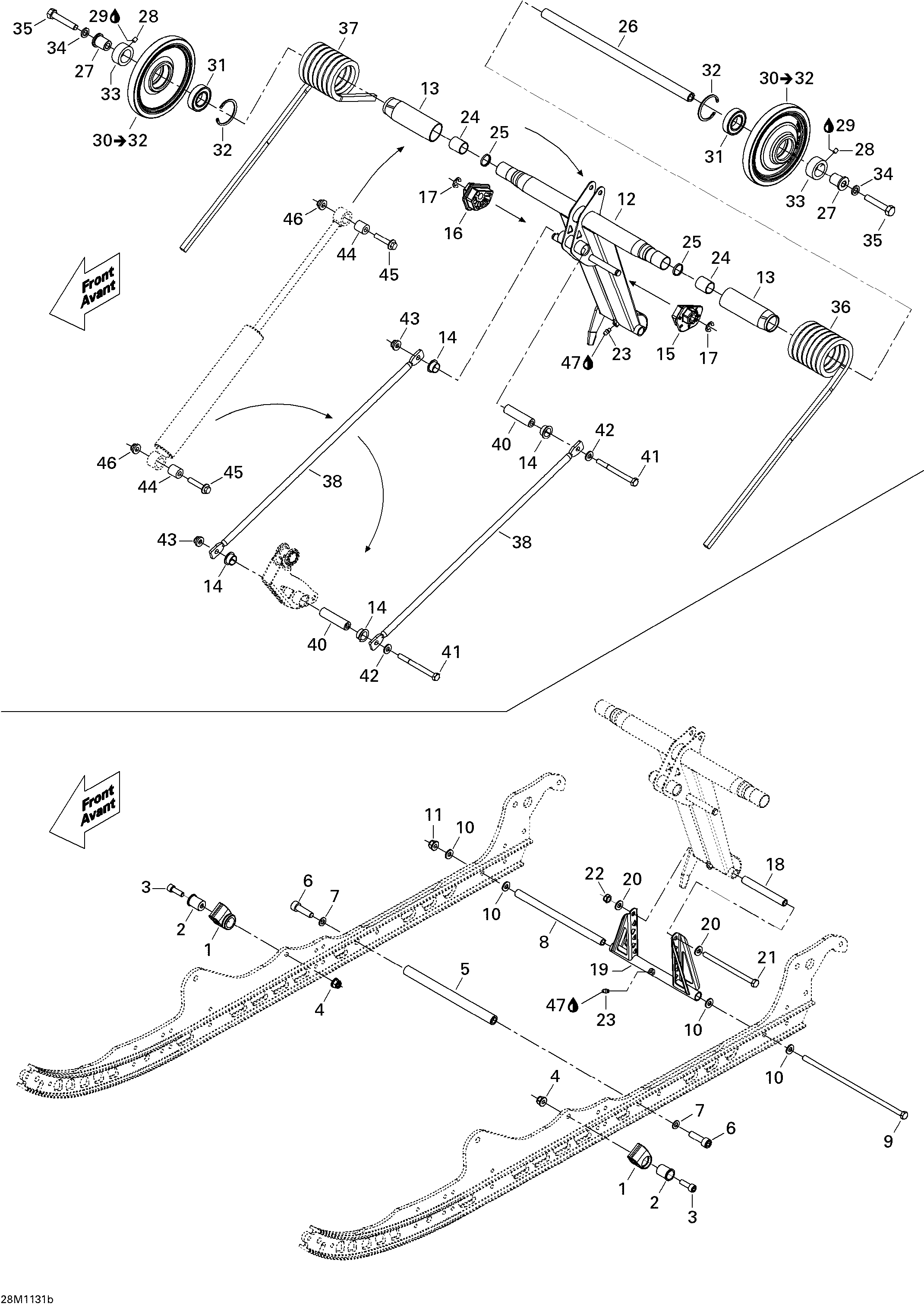

08- Rear Arm LT 154'' для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
5503191260 Axle StrapAxle Strap
-
6250000478 Socket Screw M10 X 35Socket Screw M10 X 35
-
7503192496 WasherWasher
-
8503189156 Pivot Arm AxlePivot Arm Axle
-
9732601198 Long Bolt M8Long Bolt M8
-
10503189157 WasherWasher
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12503191762 Welded Rear ArmWelded Rear Arm
-
13572080700 BushingBushing
-
14503191555 Swivel BushingSwivel Bushing
-
15503191565 LH Cam AdjusterLH Cam Adjuster
-
16503191566 RH Cam AdjusterRH Cam Adjuster
-
17293370013 E-CirclipE-Circlip
-
18503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
19503191209 Pivot ArmPivot Arm
-
20503189157 WasherWasher
-
21732601197 Bolt M8, ShortBolt M8, Short
-
22232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
23408200700 Grease FittingGrease Fitting
-
24503191556 Extended BushingExtended Bushing
-
25503191651 WasherWasher
-
26503191215 Upper ShaftUpper Shaft
-
27503191262 BushingBushing
-
28206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30503191738 Wheel, 155 mm. Includes 30 to 32Wheel, 155 mm. Includes 30 to 32
-
31503191982 Ball BearingBall Bearing
-
32415129371 Retaining RingRetaining Ring
-
33503168800 Retaining RingRetaining Ring
-
34503189564 WasherWasher
-
35207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
36503192136 LH Spring, SquareLH Spring, Square
-
37503192137 RH Spring, SquareRH Spring, Square
-
38503191765 Link RodLink Rod
-
40503190643 Bar AxleBar Axle
-
41207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
42503189157 WasherWasher
-
43233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
44414936000 CushionCushion
-
45207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
46233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
47293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
