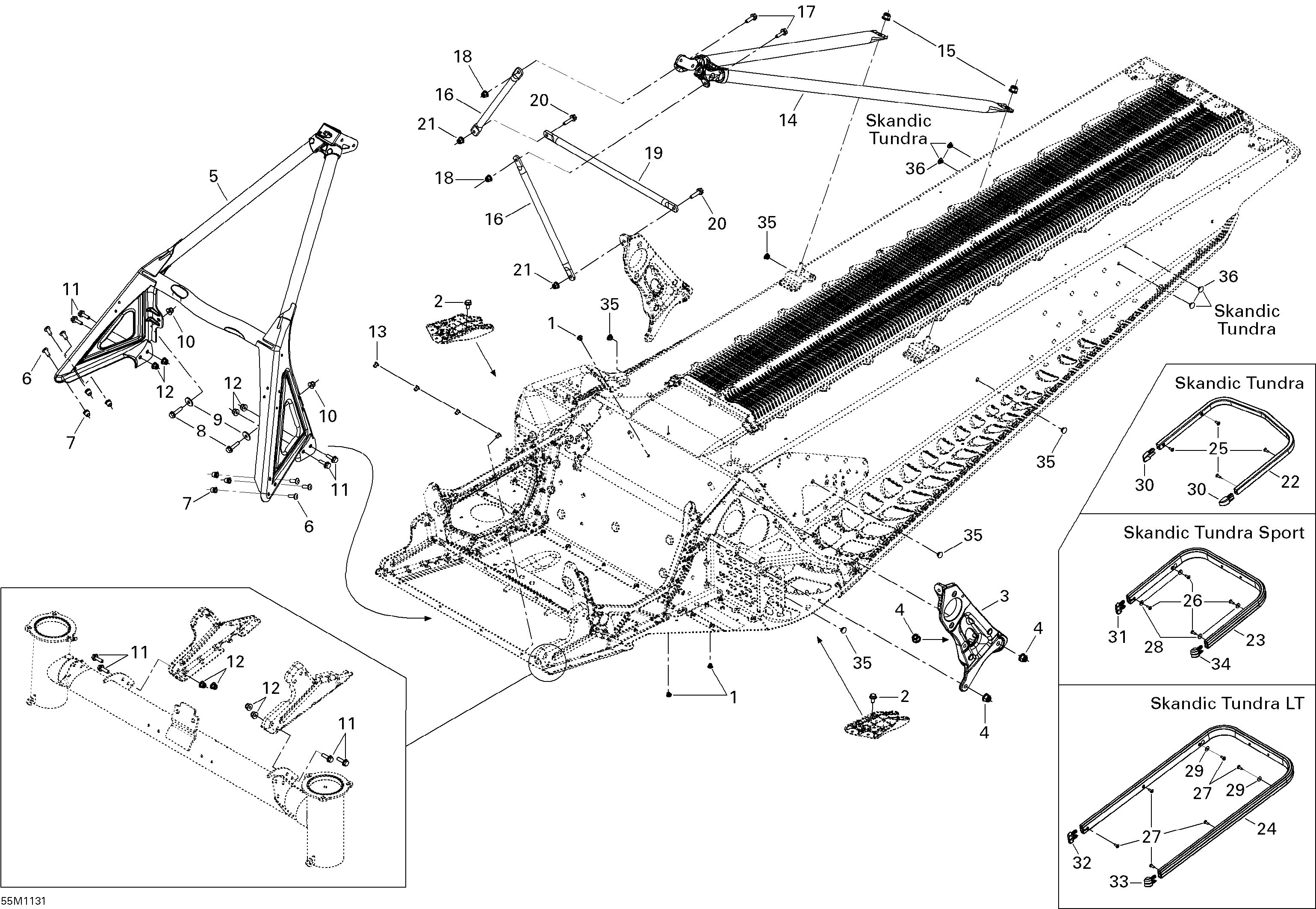

09- Frame and Components LT для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011
-
№АртикулНазвание
-
1390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
3518326651 Pulley SupportPulley Support
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5518326557 Front MemberFront Member
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9224061201 Flat WasherFlat Washer
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14518326559 Rear MemberRear Member
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16518325114 Upper Column SupportUpper Column Support
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19518325115 Center Column SupportCenter Column Support
-
20207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24518325579 Rear BumperRear Bumper
-
27250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
29224061201 Flat WasherFlat Washer
-
32520000711 RH CapRH Cap
-
33520000712 LH CapLH Cap
-
35293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
