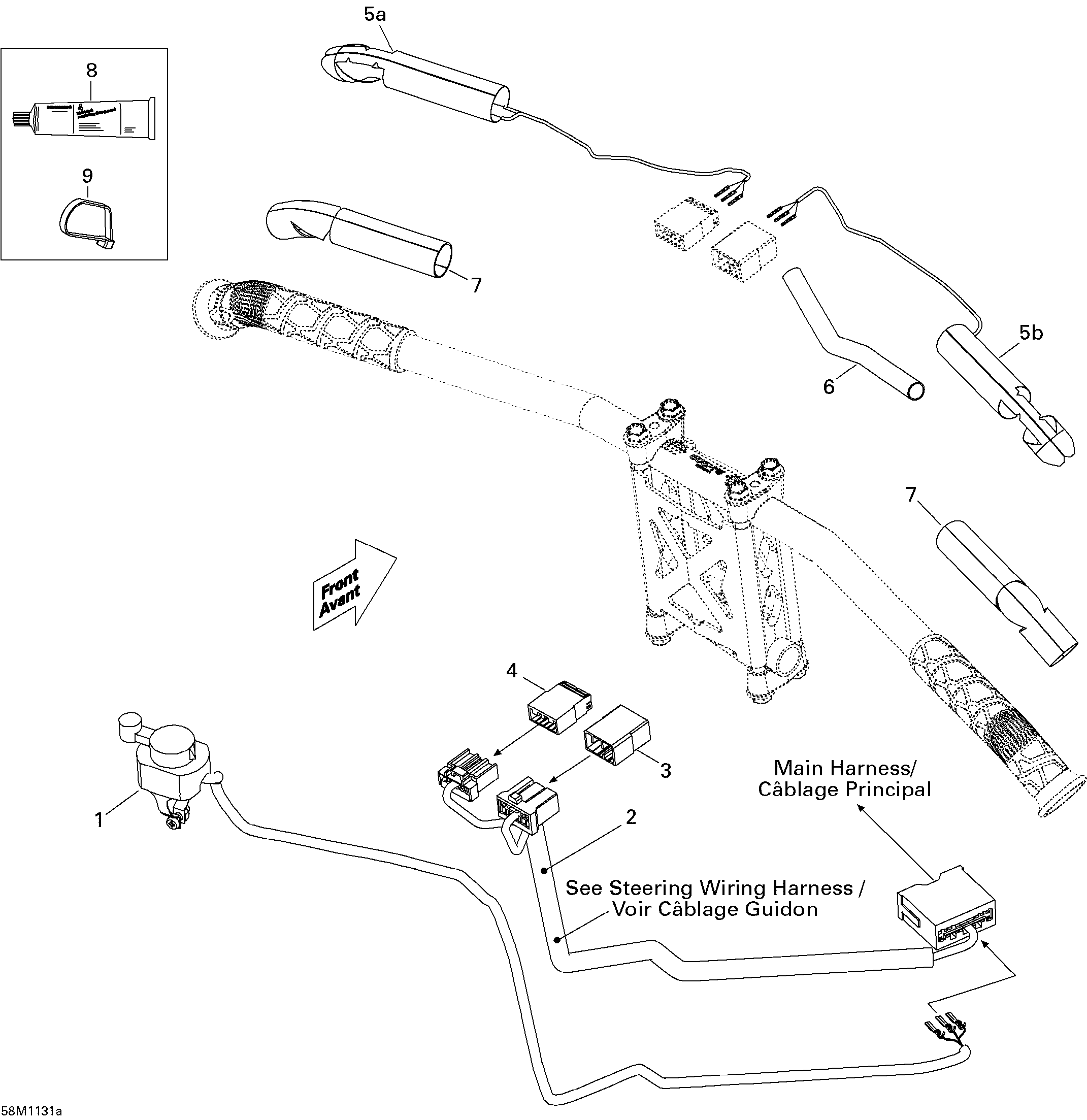

10- Electrical Accessories, Steering STD для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2011
-
№АртикулНазвание
-
1515176918 Dimmer SwitchDimmer Switch
-
2515176911 Steering Wiring HarnessSteering Wiring Harness
-
3515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
4515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
5a506152484 Heating Element 20W. Left HandHeating Element 20W. Left Hand
-
5b506152516 Heating Element 20W. Right HandHeating Element 20W. Right Hand
-
6515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
7506152360 InsulantInsulant
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
9293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9293750009 Tie-Rap 173 mmTie-Rap 173 mm
