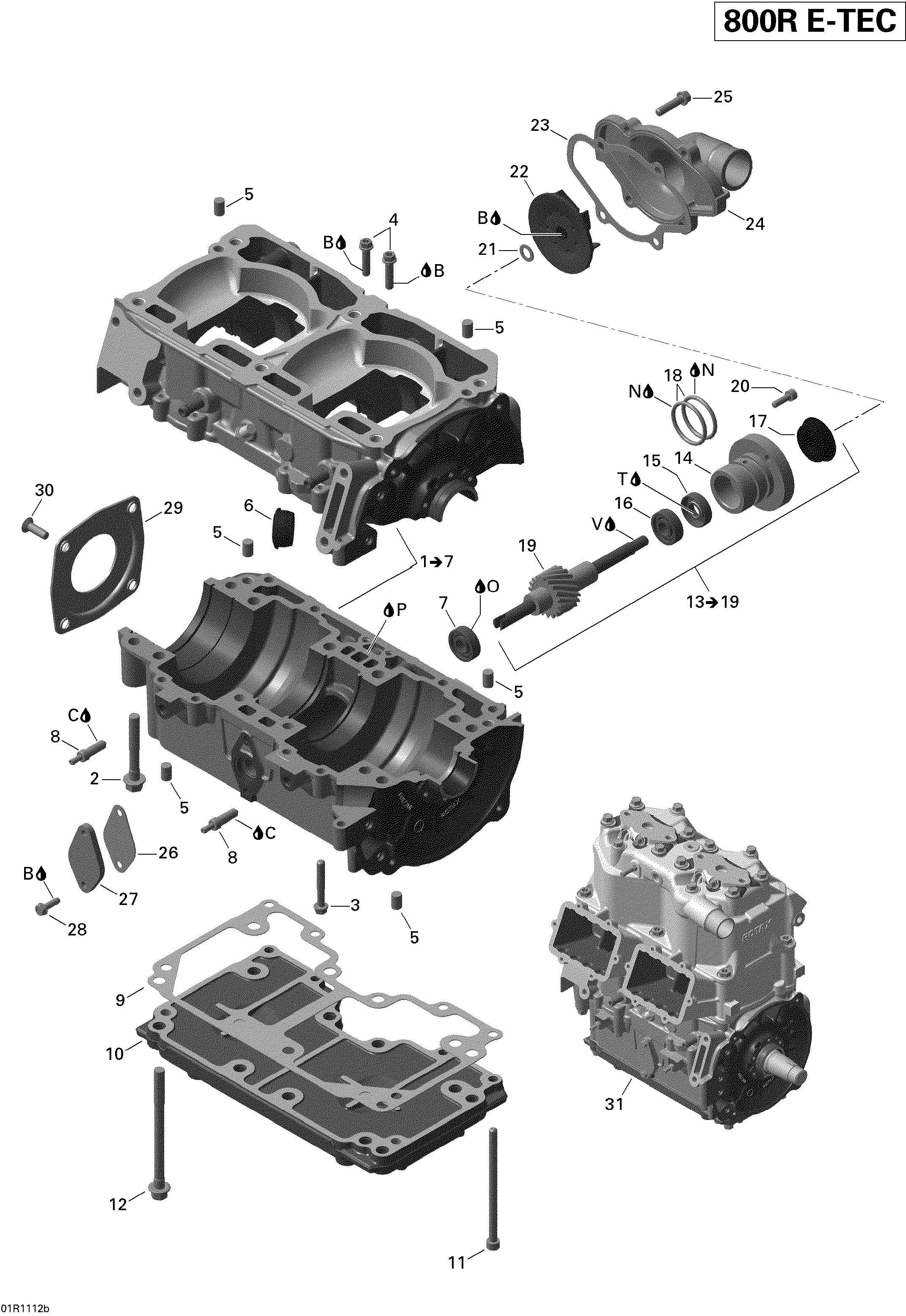

01- Crankcase And Water Pump (Summit) для BRP Ski-Doo Summit FREERIDE 800R E-TEC - 2011
-
№АртикулНазвание
-
1420893084 Crankcase Ass'y. Includes 1 to 7Crankcase Ass'y. Includes 1 to 7
-
2420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
3420440282 Flanged Torx Screw M6 X 40Flanged Torx Screw M6 X 40
-
4420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
5420632010 Center Pin 8 X 12Center Pin 8 X 12
-
6420660890 Cable GrommetCable Grommet
-
7420232100 Ball BearingBall Bearing
-
8420956070 Check ValveCheck Valve
-
9420430070 Gasket Engine SupportGasket Engine Support
-
10420812683 Engine SupportEngine Support
-
11420241601 Socket Head Screw M6 X 100Socket Head Screw M6 X 100
-
12420941517 Hex. Screw M8 X 105Hex. Screw M8 X 105
-
13420837676 Water Pump/Oil Pump Shaft Ass'y. Includes 13 to 19Water Pump/Oil Pump Shaft Ass'y. Includes 13 to 19
-
15420230196 Oil SealOil Seal
-
16420232100 Ball BearingBall Bearing
-
17420650370 Rotary SealRotary Seal
-
18420950890 O-RingO-Ring
-
20420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
21420944033 Washer 8.4Washer 8.4
-
22420922805 Water ImpellerWater Impeller
-
23420430050 GasketGasket
-
24420822280 Water Pump HousingWater Pump Housing
-
25420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
26420931566 GasketGasket
-
27420810825 Cover PlateCover Plate
-
28420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
29420812420 CoverCover
-
30420941436 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
31420079752 Short Block Repair Kit. EuropeShort Block Repair Kit. Europe
-
31420079753 Short Block Repair Kit. Except EuropeShort Block Repair Kit. Except Europe
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
T420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
V413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
