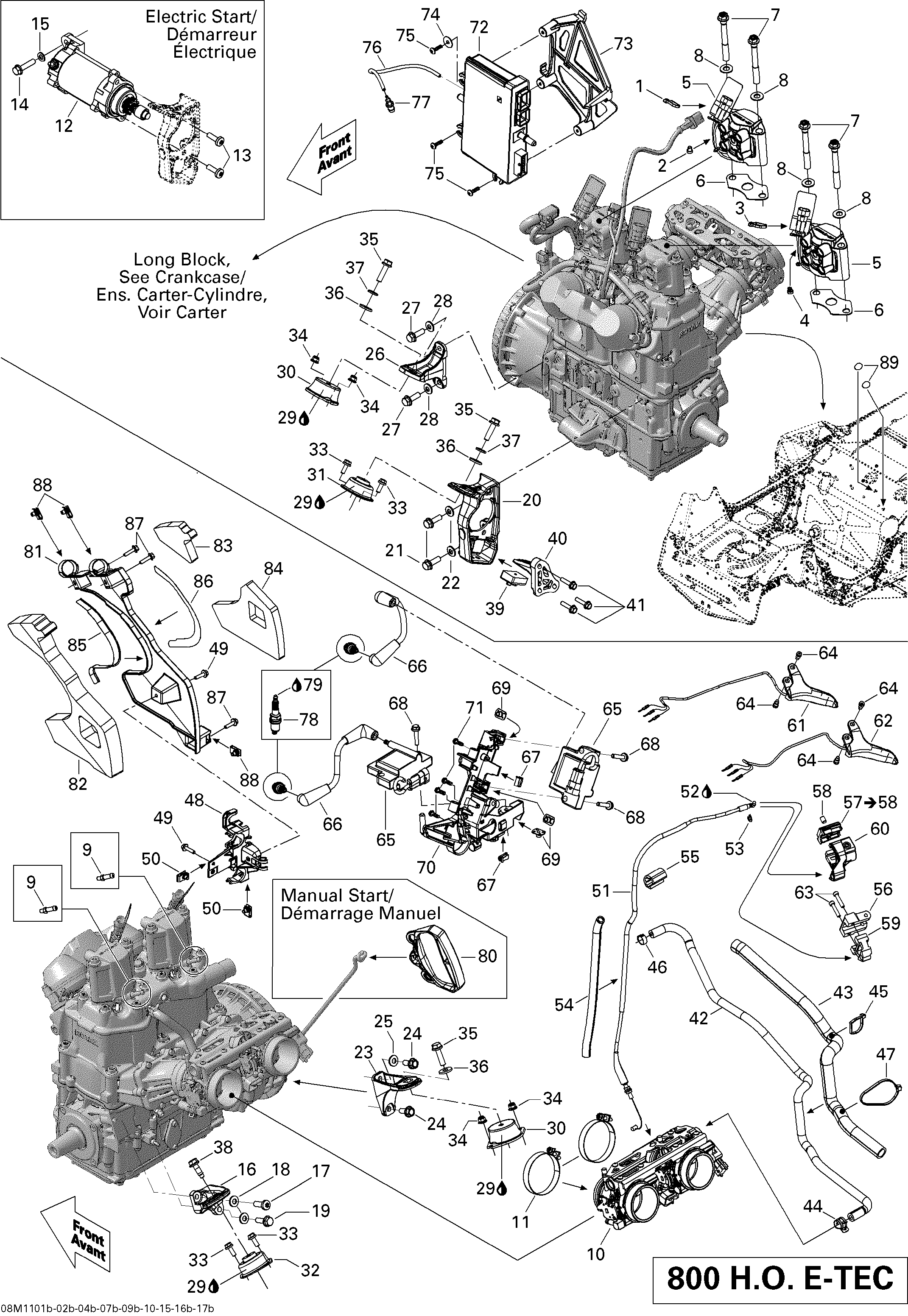

01- Engine для BRP Ski-Doo Summit FREERIDE 800R E-TEC - 2011
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
3293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5512060650 Fuel InjectorFuel Injector
-
6420430930 GasketGasket
-
7420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9420924724 Hose NippleHose Nipple
-
10420889199 Throttle BodyThrottle Body
-
11508000007 ClampClamp
-
16512060478 Rear Support, PTORear Support, PTO
-
17250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
20512060561 Front Support, PTOFront Support, PTO
-
21207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
22234281474 Conical Spring Washer M8Conical Spring Washer M8
-
23512060559 Rear Support, MAGRear Support, MAG
-
24207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
25234281474 Conical Spring Washer M8Conical Spring Washer M8
-
26512060469 Front Support, MAGFront Support, MAG
-
27207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
28234281474 Conical Spring Washer M8Conical Spring Washer M8
-
29293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
30512060457 Rubber MountRubber Mount
-
31512060387 Rubber MountRubber Mount
-
32512060448 Rubber MountRubber Mount
-
33207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
36503183200 Washer, YellowWasher, Yellow
-
37234281474 Conical Spring Washer M8Conical Spring Washer M8
-
38250000361 Hex. Screw M8Hex. Screw M8
-
39512060577 StopperStopper
-
40512060576 Stopper SupportStopper Support
-
41207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
42512060648 Formed Hose, OutputFormed Hose, Output
-
43513033412 TubingTubing
-
44293650214 Norma Spring ClampNorma Spring Clamp
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46293650046 Oetiker ClampOetiker Clamp
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48512060298 Solenoid SupportSolenoid Support
-
49207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
50250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
51512060626 Throttle CableThrottle Cable
-
52293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
53414274500 CirclipCirclip
-
54409901700 Tubing 9 mmTubing 9 mm
-
55512060313 ProtectorProtector
-
56512059969 Upper HousingUpper Housing
-
59512059537 Lower HousingLower Housing
-
61512060616 Throttle HandleThrottle Handle
-
63205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
64732601143 Flanged ScrewFlanged Screw
-
65512060644 Ignition CoilIgnition Coil
-
66512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
67710000992 ClipClip
-
68250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
69293100003 Nut M6Nut M6
-
70512060287 Support CoilsSupport Coils
-
71241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
72512060614 Calibrated ModuleCalibrated Module
-
73512060297 Calibrated Module SupportCalibrated Module Support
-
74250200040 Flat WasherFlat Washer
-
75250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
76415080100 LineLine
-
77414814100 Male ConnectorMale Connector
-
78415129484 Spark Plug, NGK PFR7ABSpark Plug, NGK PFR7AB
-
79293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
80512060136 Starter Grip. Manual StartStarter Grip. Manual Start
-
81512060339 Noise ShieldNoise Shield
-
82512060343 Interior Noise FoamInterior Noise Foam
-
83512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
84512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
85512060574 Heat ShieldHeat Shield
-
86512060575 Heat ShieldHeat Shield
-
87207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
88250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
89518325560 Adhesive PatchAdhesive Patch
