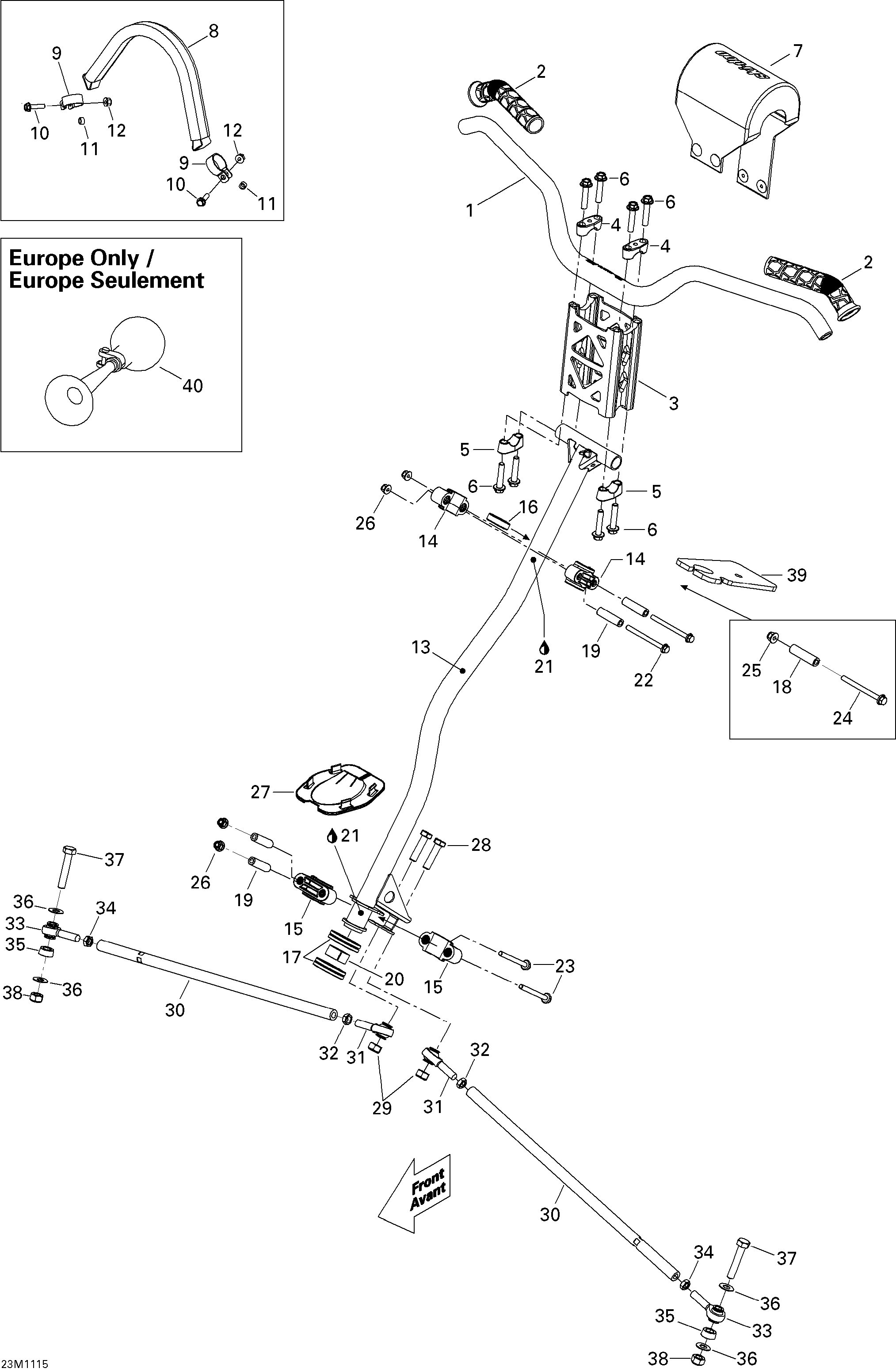

07- Steering для BRP Ski-Doo Summit FREERIDE 800R E-TEC - 2011

№

Артикул

Название
1

506152489 Handle Bar

Handle Bar

34 550 ₽
2

506152226 Grip

Grip

0 ₽
3

506152502 Handle Bar Extension

Handle Bar Extension

11 620 ₽
4

506152492 Steering Support

Steering Support

2 880 ₽
5

506152395 Lower Steering Support

Lower Steering Support

980 ₽
6

250000352 Hex. Flange Screw M8 X 40

Hex. Flange Screw M8 X 40

310 ₽
7

506152505 Security Pad

Security Pad

4 430 ₽
8

506152115 Strap Ass'y

Strap Ass'y

15 440 ₽
9

506152535 Support Plate

Support Plate

720 ₽
10

207662084 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

610 ₽
11

506152156 Bushing

Bushing

1 980 ₽
12

233261494 Hex. Elastic Flanged Nut M6

Hex. Elastic Flanged Nut M6

540 ₽
13

506152478 Main Tube

Main Tube

20 340 ₽
14

506152508 Upper Half-Housing

Upper Half-Housing

2 520 ₽
15

506152217 Lower Half-Housing

Lower Half-Housing

1 890 ₽
16

506152509 Upper Anti-Vibration Gasket

Upper Anti-Vibration Gasket

3 010 ₽
17

506152218 Lower Vibration Ring

Lower Vibration Ring

0 ₽
18

506152297 Housing Bushing

Housing Bushing

3 380 ₽
19

506152297 Housing Bushing

Housing Bushing

3 380 ₽
20

506152440 Retaining Ring

Retaining Ring

2 100 ₽
21

293550033 Suspension Grease, 10 X 400 G

Suspension Grease, 10 X 400 G

11 560 ₽
22

207667086 Hex. Flanged Screw M6 x 70

Hex. Flanged Screw M6 x 70

200 ₽
23

207667044 Hex. Flange Screw M6 X 70

Hex. Flange Screw M6 X 70

310 ₽
24

207667086 Hex. Flanged Screw M6 x 70

Hex. Flanged Screw M6 x 70

200 ₽
25

233261416 Elastic Flanged Nut M6

Elastic Flanged Nut M6

740 ₽
26

233261416 Elastic Flanged Nut M6

Elastic Flanged Nut M6

740 ₽
27

506152163 Plate

Plate

3 380 ₽
28

207004034 Hex. Screw M10 X 40

Hex. Screw M10 X 40

200 ₽
29

232500416 Elastic Stop Nut M10

Elastic Stop Nut M10

670 ₽
30

506152498 Tie-Rod. 38''-40'' Ski Stance Models

Tie-Rod. 38''-40'' Ski Stance Models

15 160 ₽
30

506152500 Tie-Rod. 41''-43'' Ski Stance Models

Tie-Rod. 41''-43'' Ski Stance Models

4 660 ₽
31

506152081 LH Thread Ball Joint

LH Thread Ball Joint

13 300 ₽
32

250100016 LH Hex. Jam Nut M10

LH Hex. Jam Nut M10

270 ₽
33

506152019 RH Thread Ball Joint

RH Thread Ball Joint

19 950 ₽
34

732610010 RH Hex. Jam Nut M10

RH Hex. Jam Nut M10

270 ₽
35

506152480 Washer. 38''-40'' Ski Stance Models

Washer. 38''-40'' Ski Stance Models

1 070 ₽
36

506152194 Washer

Washer

410 ₽
37

207006044 Hex. Screw M10 X 60

Hex. Screw M10 X 60

210 ₽
38

232500416 Elastic Stop Nut M10

Elastic Stop Nut M10

670 ₽
39

506152476 Cushion

Cushion

870 ₽
40

549011291 Horn. Europe

Horn. Europe

3 020 ₽
