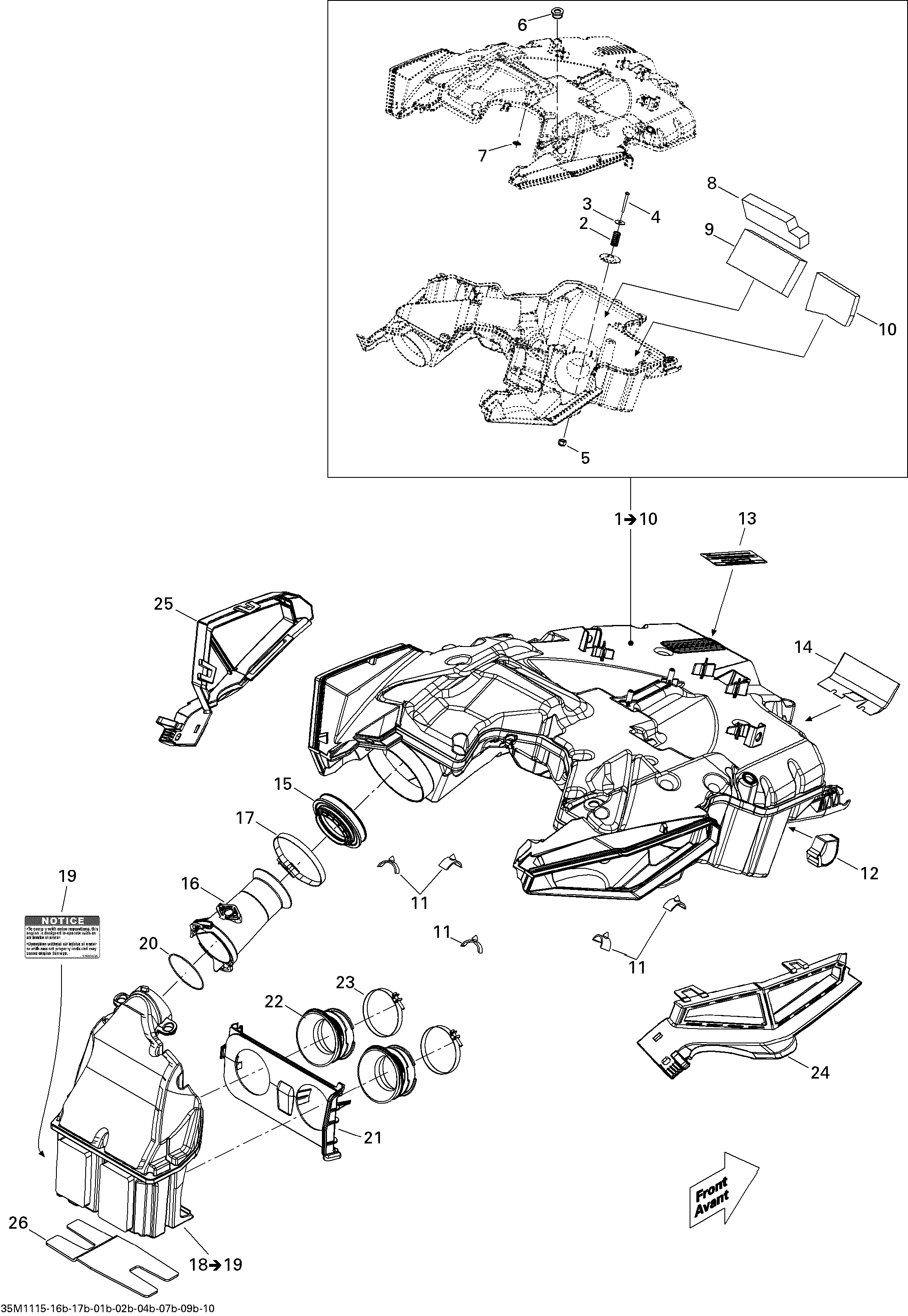

02- Air Intake System для BRP Ski-Doo Summit FREERIDE 800R E-TEC - 2011
-
№АртикулНазвание
-
1508000683 Secondary Chamber Ass'y. Includes 1 to 10Secondary Chamber Ass'y. Includes 1 to 10
-
2508000576 SpringSpring
-
3224060201 Flat WasherFlat Washer
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
5232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
6508000574 GrommetGrommet
-
7389804300 Push NutPush Nut
-
8508000696 LH Upper FoamLH Upper Foam
-
9508000697 LH Lower FoamLH Lower Foam
-
10508000706 RH Lower FoamRH Lower Foam
-
11508000537 StopperStopper
-
12508000532 Strip VelcroStrip Velcro
-
13516004566 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
14508000720 Heat ShieldHeat Shield
-
15508000567 BootBoot
-
16508000662 FluteFlute
-
17514052924 Norma ClampNorma Clamp
-
18508000660 Primary Chamber Ass'y. Includes 18 to 19Primary Chamber Ass'y. Includes 18 to 19
-
19516004572 Decal, Air IntakeDecal, Air Intake
-
20293300140 O'RingO'Ring
-
21508000613 Plate AdapterPlate Adapter
-
22508000614 Air Intake AdapterAir Intake Adapter
-
23508000346 Gemi ClampGemi Clamp
-
24508000688 RH Intake Air FilterRH Intake Air Filter
-
25508000689 LH Intake Air FilterLH Intake Air Filter
-
26508000739 Insulated FoamInsulated Foam
