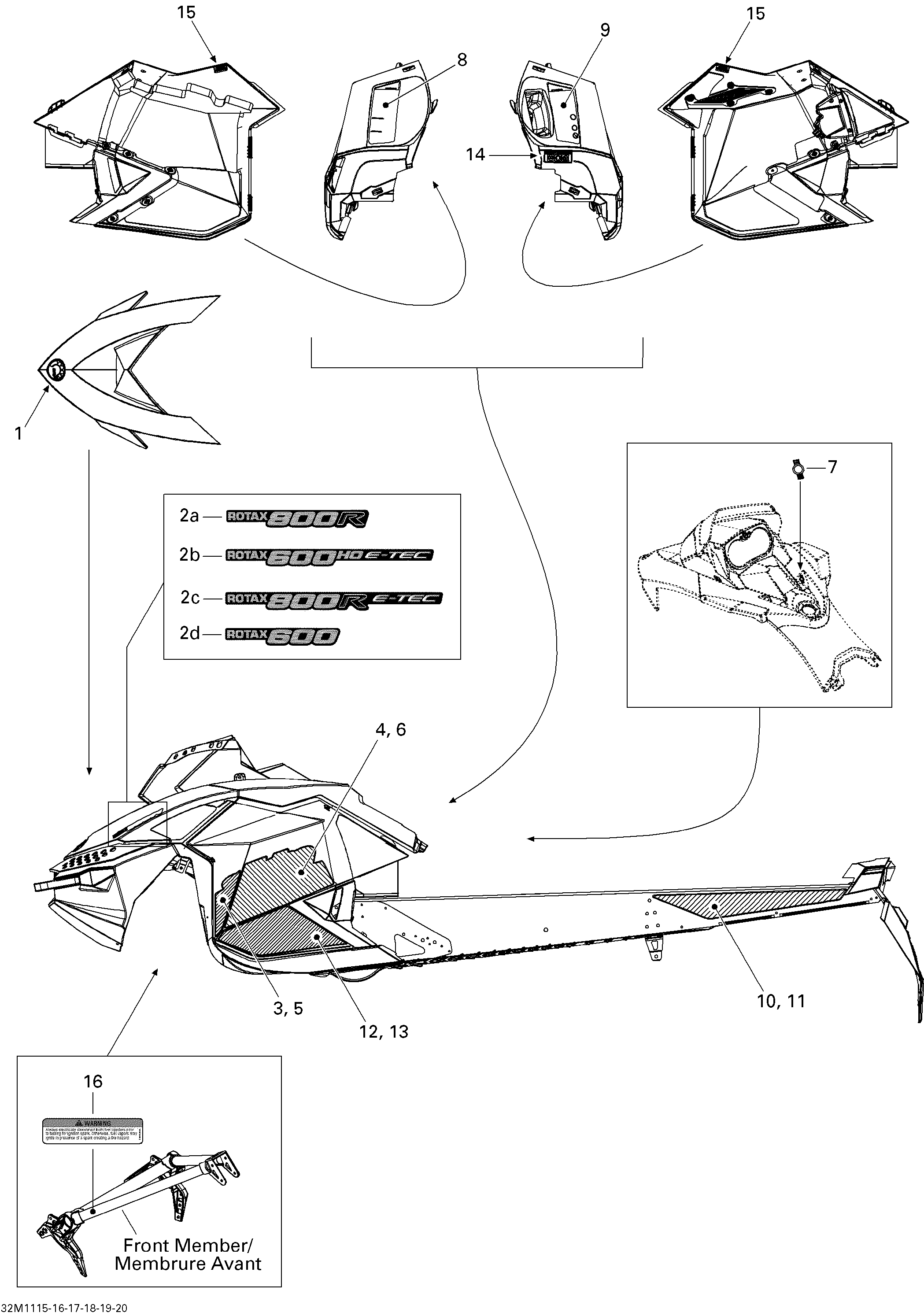

09- Decals для BRP Ski-Doo Summit FREERIDE 800R E-TEC - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2c516004253 Hood Decal, Rotax 800R E-TECHood Decal, Rotax 800R E-TEC
-
4516004426 RH Side DecalRH Side Decal
-
6516004425 LH Side DecalLH Side Decal
-
7414827200 Switch DecalSwitch Decal
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004589 Warning Decal, SecurityWarning Decal, Security
-
10516004428 RH Frame Decal, REV XP 154''RH Frame Decal, REV XP 154''
-
11516004427 LH Frame Decal, REV XP 154''LH Frame Decal, REV XP 154''
-
14516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
15516004566 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
16516003940 Warning Decal, InjectorsWarning Decal, Injectors
