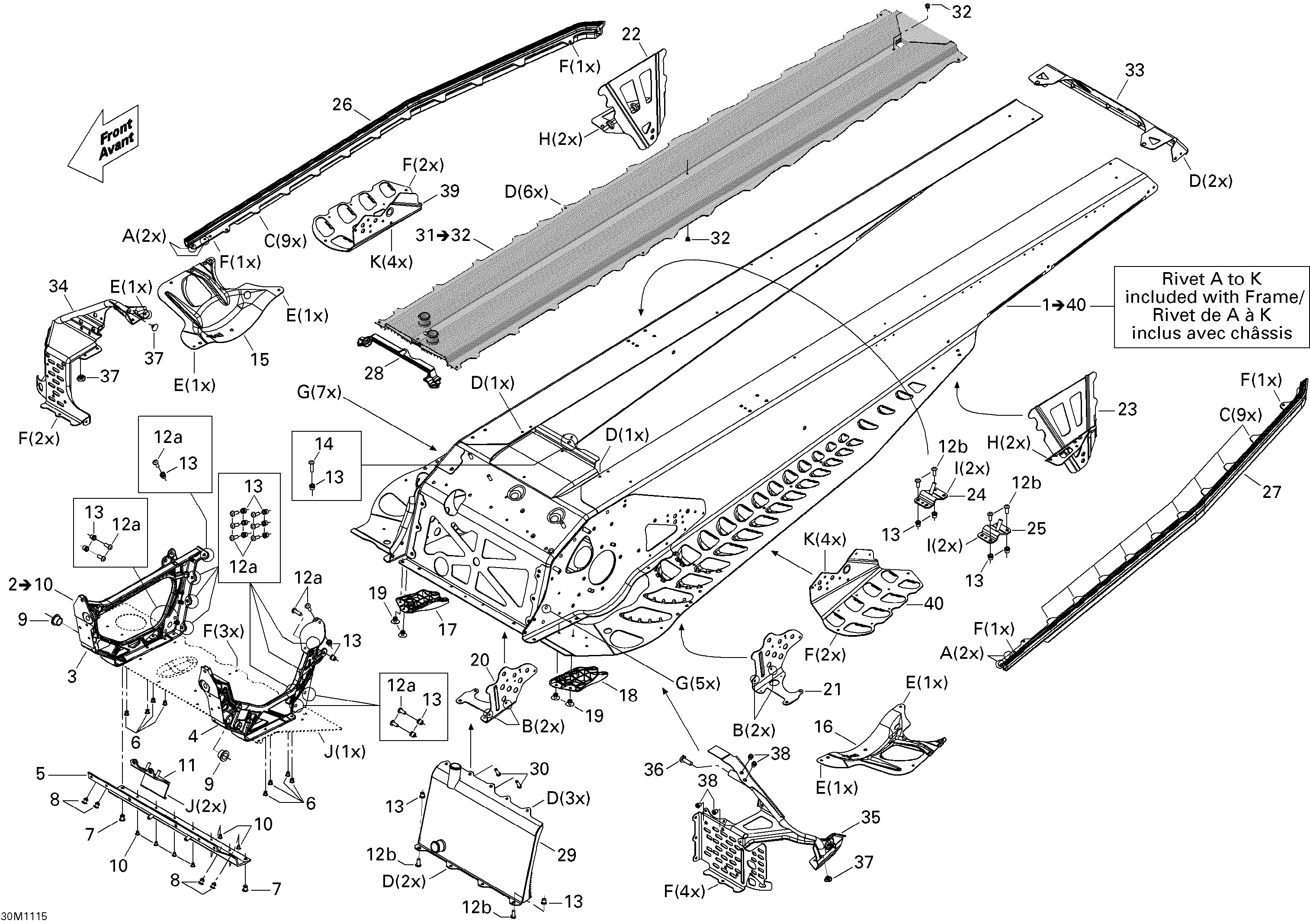

09- Frame для BRP Ski-Doo Summit FREERIDE 800R E-TEC - 2011
-
№АртикулНазвание
-
1415129576 Frame Ass'y, 154''. Includes 1 to 40Frame Ass'y, 154''. Includes 1 to 40
-
2518326290 E Module Ass'y. Includes 2 to 10E Module Ass'y. Includes 2 to 10
-
3518325922 RH MemberRH Member
-
4518325923 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505070954 CushionCushion
-
11518325943 MAG Engine SupportMAG Engine Support
-
12a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15518324874 RH ReinforcementRH Reinforcement
-
16518324875 LH ReinforcementLH Reinforcement
-
17518325782 RH DeflectorRH Deflector
-
18518325783 LH DeflectorLH Deflector
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518326616 RH Front RetainerRH Front Retainer
-
21518326617 LH Front RetainerLH Front Retainer
-
22518326621 RH Rear RetainerRH Rear Retainer
-
23518326622 LH Rear RetainerLH Rear Retainer
-
24518325973 RH Rear BaseRH Rear Base
-
25518325974 LH Rear BaseLH Rear Base
-
26518326601 RH RollerRH Roller
-
27518326602 LH RollerLH Roller
-
28518326656 SealSeal
-
29518326486 Front RadiatorFront Radiator
-
30250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
31518326692 Rear Radiator Ass'y, 154''. Includes 31 to 32Rear Radiator Ass'y, 154''. Includes 31 to 32
-
32293150144 Stavex RivetStavex Rivet
-
33518325421 Rear CapRear Cap
-
34518326216 RH StirupRH Stirup
-
35518326239 LH StirupLH Stirup
-
36250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
37293730042 DartDart
-
38293450268 InsertInsert
-
39518326614 RH Footrest LinerRH Footrest Liner
-
40518326615 LH Footrest LinerLH Footrest Liner
-
A390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
B390909100 Avex RivetAvex Rivet
-
D390909200 Avex RivetAvex Rivet
-
E390909100 Avex RivetAvex Rivet
-
F293150144 Stavex RivetStavex Rivet
-
G293150146 Henrob RivetHenrob Rivet
-
H293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
I293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
J293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
K293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
