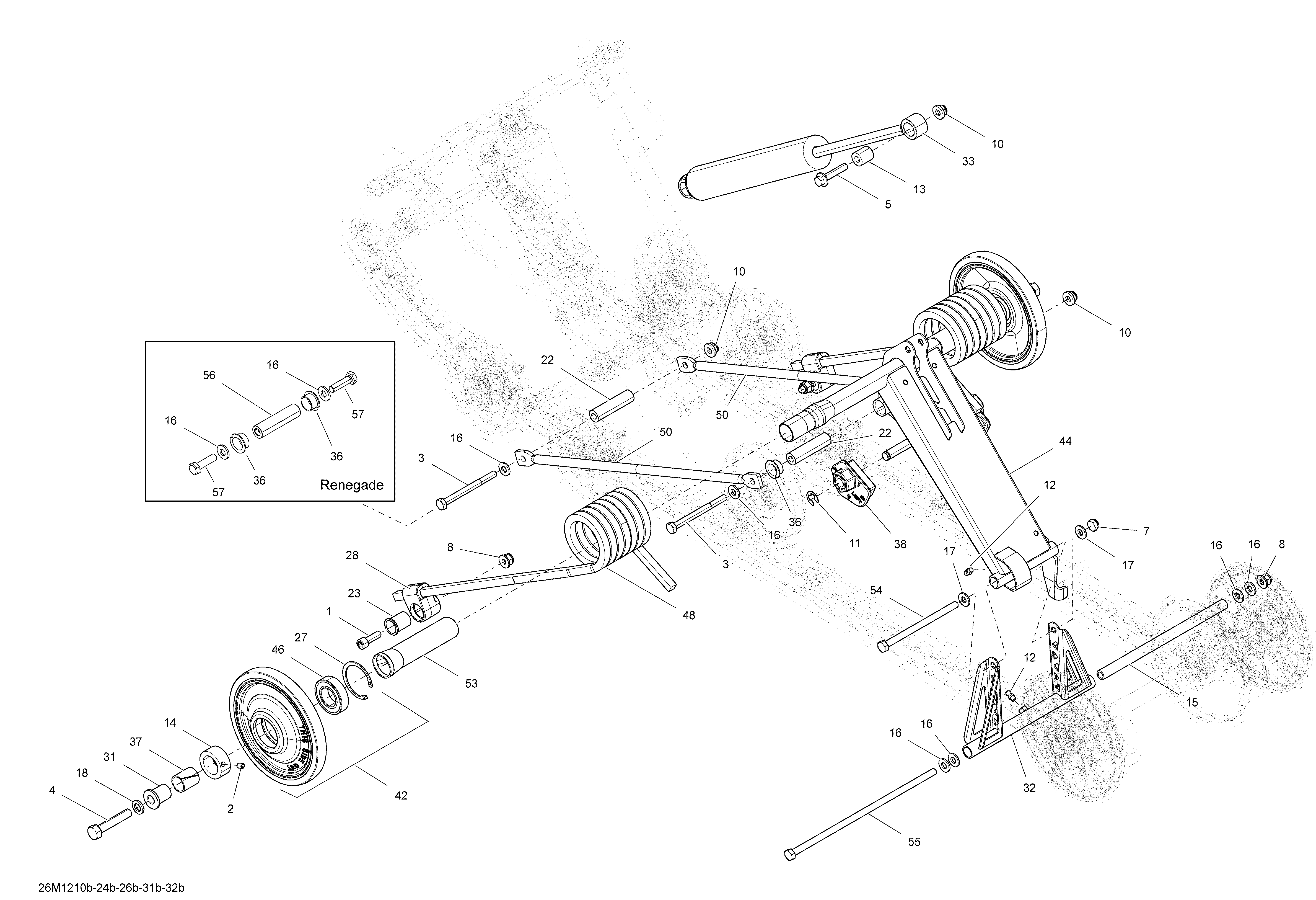

08- Rear Suspension Rear Arm для BRP Ski-Doo Renegade Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
2206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
3207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
4207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
5207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
7232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
8250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
8250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11293370013 E-CirclipE-Circlip
-
12408200700 Grease FittingGrease Fitting
-
13414936000 CushionCushion
-
14503168800 Retaining RingRetaining Ring
-
15503189156 Pivot Arm AxlePivot Arm Axle
-
16503189157 WasherWasher
-
17503189157 WasherWasher
-
18503189276 WasherWasher
-
22503190643 Bar AxleBar Axle
-
23503190754 Retainer CushionRetainer Cushion
-
27415129371 Retaining RingRetaining Ring
-
28503191183 Spring SupportSpring Support
-
31503192223 BushingBushing
-
32503191209 Pivot ArmPivot Arm
-
33503192159 Rear Shock HPGRear Shock HPG
-
36503191555 Swivel BushingSwivel Bushing
-
37503191556 Extended BushingExtended Bushing
-
38503191565 LH Cam AdjusterLH Cam Adjuster
-
38503191566 RH Cam AdjusterRH Cam Adjuster
-
42503191738 Wheel, 155 mmWheel, 155 mm
-
44503192253 Rear ArmRear Arm
-
46503191982 Ball BearingBall Bearing
-
48503192081 LH SpringLH Spring
-
48503192080 RH SpringRH Spring
-
50503192255 Linkage RodLinkage Rod
-
53572080700 BushingBushing
-
54732601197 Bolt M8, ShortBolt M8, Short
-
55503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
56503192139 Bar AxleBar Axle
-
57207383044 Hex. Screw M8 x 30, Scotch GripHex. Screw M8 x 30, Scotch Grip
