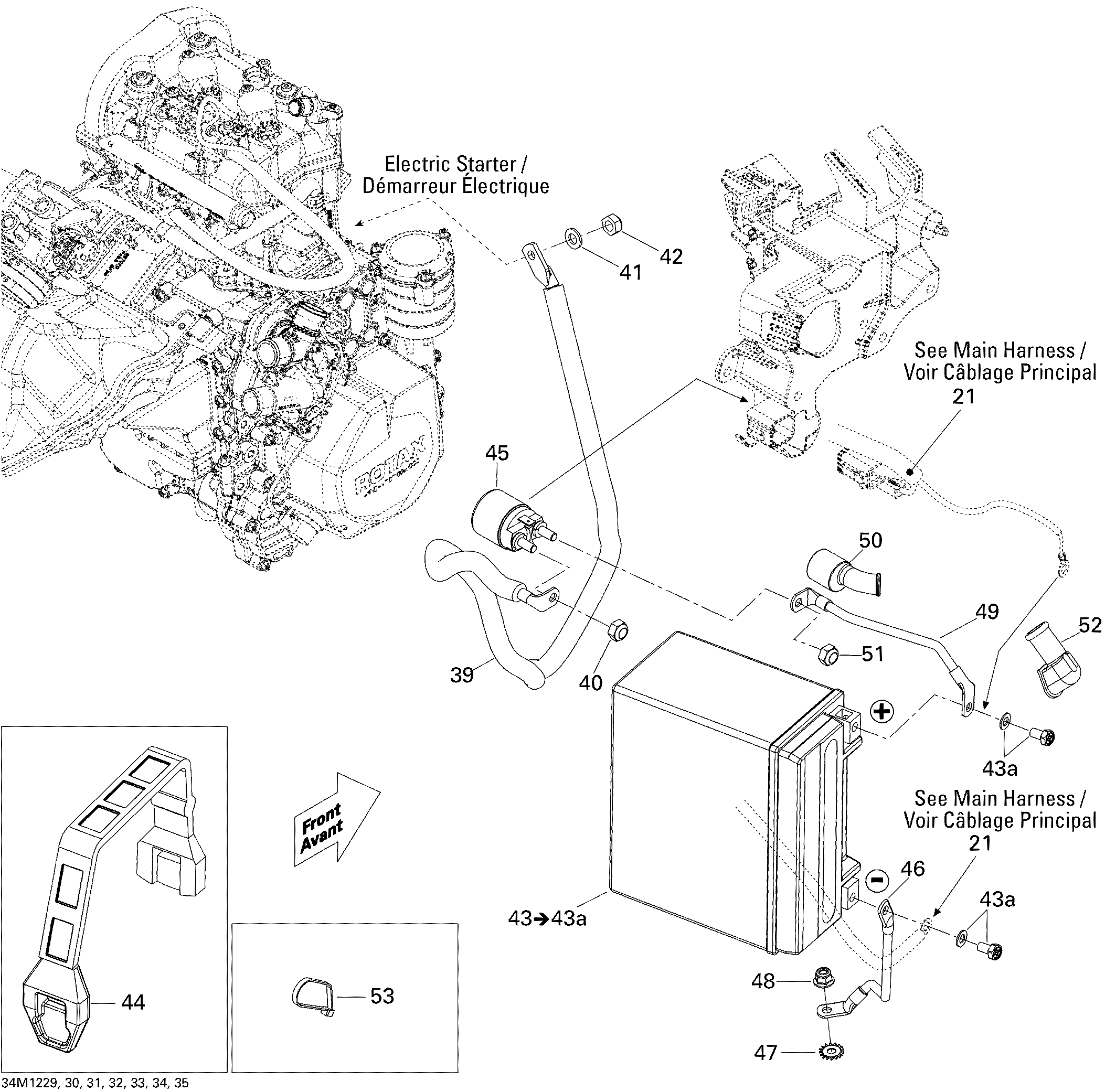

10- Battery And Starter для BRP Ski-Doo Renegade Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
21515177126 Main Harness Ass'yMain Harness Ass'y
-
39515176966 Battery WireBattery Wire
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
41234061410 Flat Washer 6 mmFlat Washer 6 mm
-
42232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
43296000295 Battery 18 AmpBattery 18 Amp
-
43a295500849 Battery Fastener KitBattery Fastener Kit
-
44515176944 StrapStrap
-
45515176942 Starter RelayStarter Relay
-
46515176943 Ground WireGround Wire
-
47250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
48233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
49515177007 Battery WireBattery Wire
-
50515175919 Protector CapProtector Cap
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
52710000495 Protector CapProtector Cap
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
53293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
53293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
53293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
53293750009 Tie-Rap 173 mmTie-Rap 173 mm
