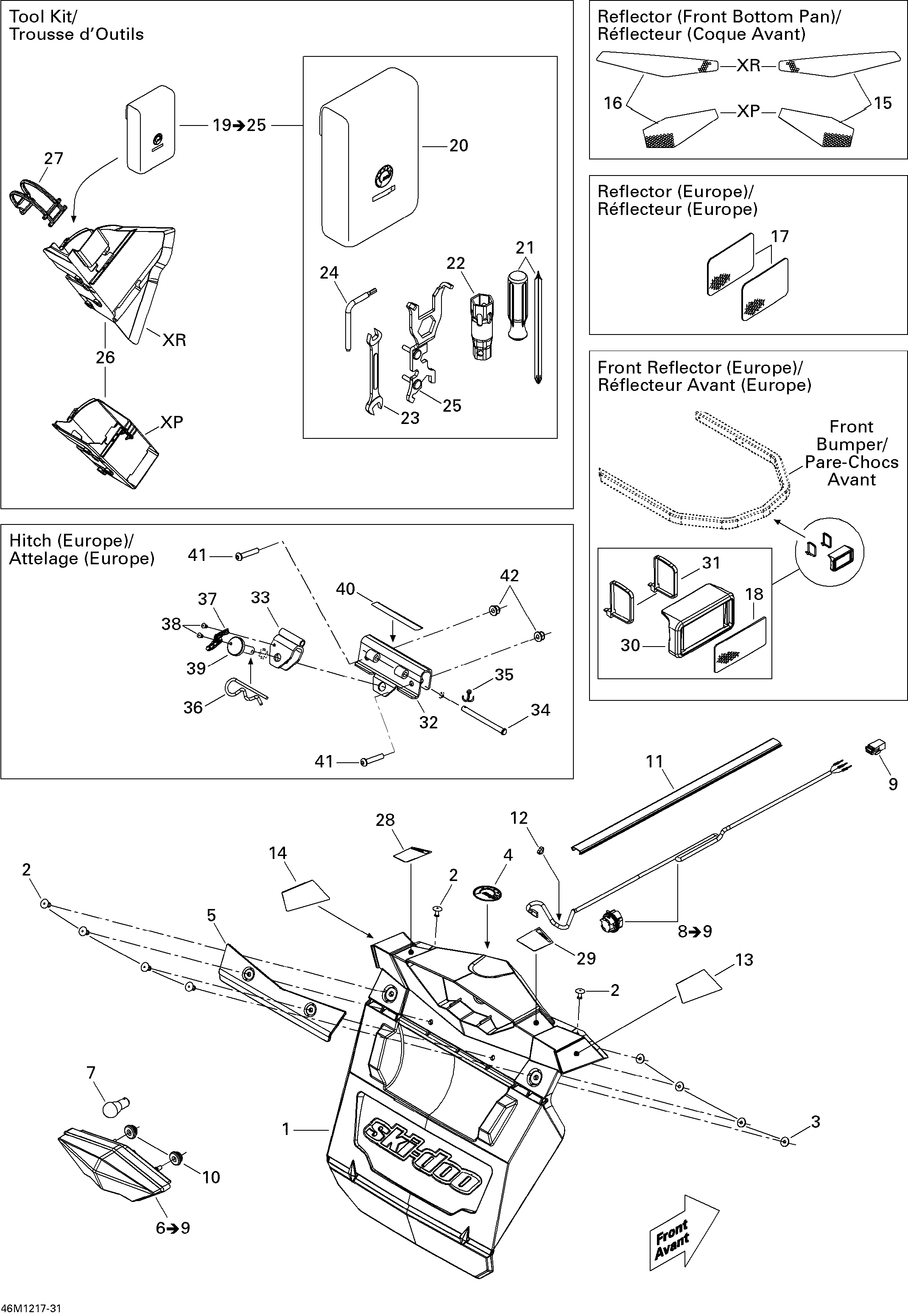

09- Utilities для BRP Ski-Doo Renegade Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1520000702 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000679 Rear Light. Includes 6 a 9Rear Light. Includes 6 a 9
-
7520000758 BulbBulb
-
8520000680 Wiring Harness. Includes 8 a 9Wiring Harness. Includes 8 a 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10705003666 Rubber GrommetRubber Grommet
-
11520000829 Radiator TrimRadiator Trim
-
12293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13520000706 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
13520001162 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
14520000707 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
14520001161 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
15520000718 RH Front ReflectorRH Front Reflector
-
16520000719 LH Front ReflectorLH Front Reflector
-
17520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
18415037900 Reflector, White. EuropeReflector, White. Europe
-
19529000066 Tool Kit. Includes 19 a 25Tool Kit. Includes 19 a 25
-
21529000004 Screw DriverScrew Driver
-
23529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
24520001142 Spacing ToolSpacing Tool
-
25520000988 Wrench SuspensionWrench Suspension
-
26520000894 Tool Kit RackTool Kit Rack
-
27520000528 LatchLatch
-
28516004550 Warning Decal, SecurityWarning Decal, Security
-
29516004601 Warning Decal, SecurityWarning Decal, Security
-
30520000871 Reflector Support. EuropeReflector Support. Europe
-
31293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
32511000554 Support. EuropeSupport. Europe
-
33511000588 Hitch Plate. EuropeHitch Plate. Europe
-
34511000520 Clevis Pin. EuropeClevis Pin. Europe
-
35371800200 Cotter Pin. EuropeCotter Pin. Europe
-
36114045200 Hair Pin. EuropeHair Pin. Europe
-
38390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
39511000555 Pin. EuropePin. Europe
-
40516004568 Warning Decal, Security. EuropeWarning Decal, Security. Europe
-
41205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
42233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
