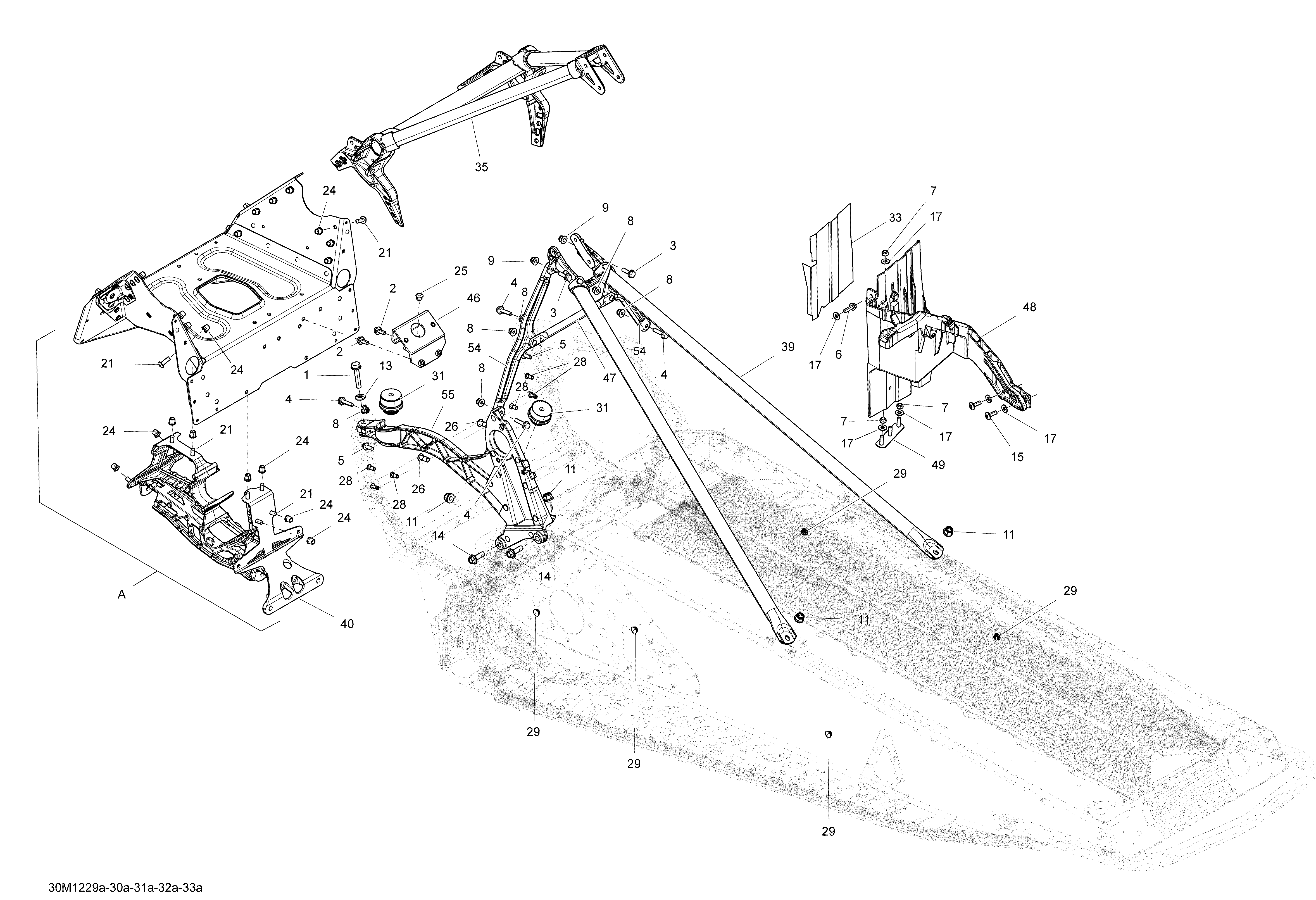

09- Frame Common Parts для BRP Ski-Doo Renegade Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
15250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
17250200039 Flat WasherFlat Washer
-
21207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
26293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
28293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
29293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
31512060295 Rubber MountRubber Mount
-
33514054755 Heat ShieldHeat Shield
-
35518326970 Front MemberFront Member
-
39518326559 Rear MemberRear Member
-
40518325925 Front Suspension SupportFront Suspension Support
-
46518326178 Engine SupportEngine Support
-
47518326355 Center Column SupportCenter Column Support
-
48518326472 Battery SupportBattery Support
-
49518326550 Retaining PlateRetaining Plate
-
54518326848 Upper Column SupportUpper Column Support
-
55518327224 Brace Ass'yBrace Ass'y
-
A518325924 S-ModuleS-Module
