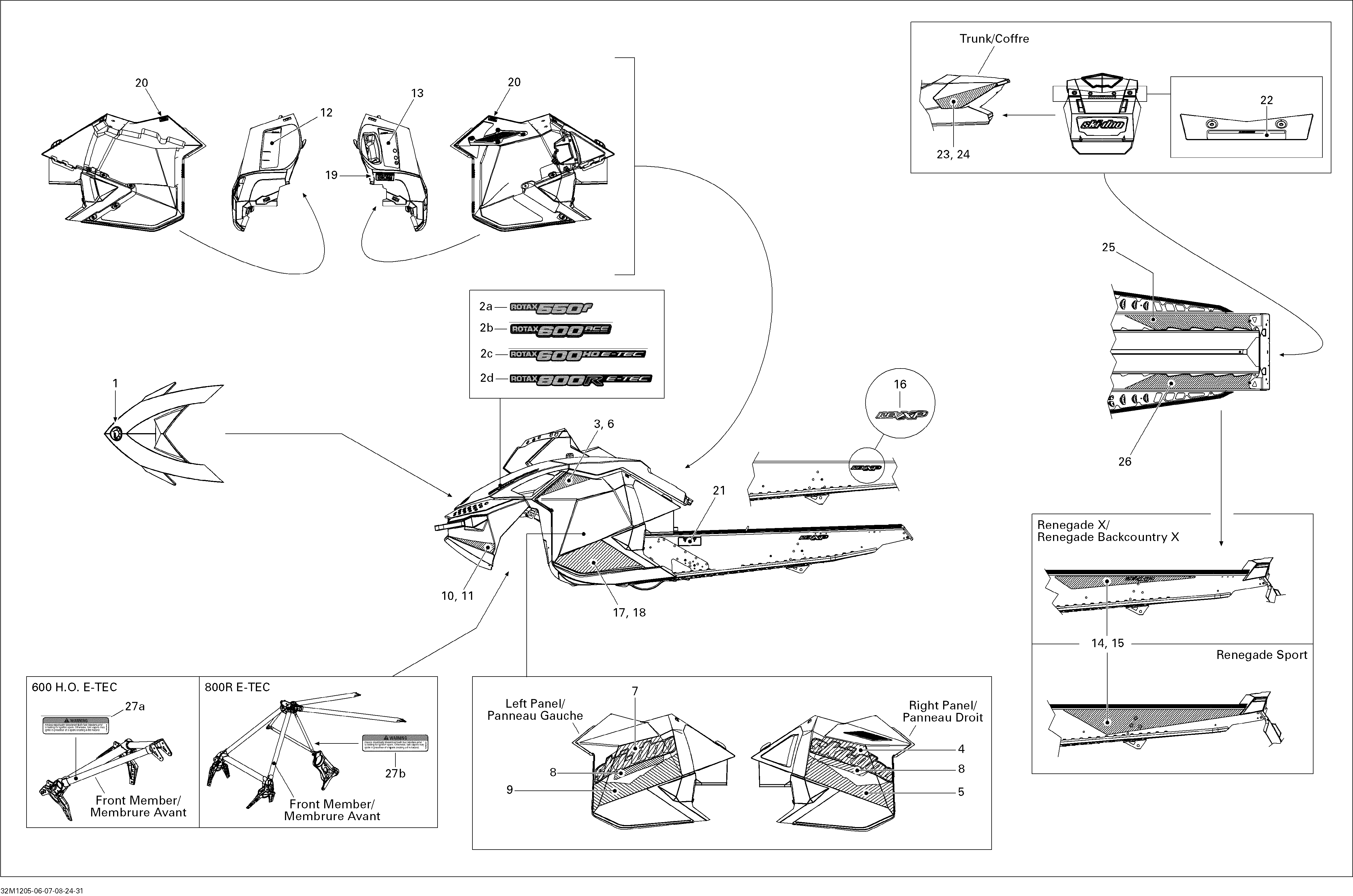

09- Decals для BRP Ski-Doo Renegade Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2b516004624 Hood Decal, Rotax 600ACEHood Decal, Rotax 600ACE
-
3516004767 RH Upper Side DecalRH Upper Side Decal
-
4516004762 RH Side DecalRH Side Decal
-
6516004766 LH Upper Side DecalLH Upper Side Decal
-
7516004761 LH Side DecalLH Side Decal
-
8516004810 Side Decal, RenegadeSide Decal, Renegade
-
12516004561 Warning Decal, SecurityWarning Decal, Security
-
13516004888 Warning Decal, SecurityWarning Decal, Security
-
14516004801 RH Frame Decal, REV XP. SPORTRH Frame Decal, REV XP. SPORT
-
15516004800 LH Frame Decal, REV XP. SPORTLH Frame Decal, REV XP. SPORT
-
17516004764 RH Lower DecalRH Lower Decal
-
18516004763 LH Lower DecalLH Lower Decal
-
19516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
20516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
21516004815 Conformity Decal, B.A.T.. North AmericaConformity Decal, B.A.T.. North America
-
22516004440 Warning Decal, TrackWarning Decal, Track
-
23516004760 RH Cover DecalRH Cover Decal
-
24516004759 LH Cover DecalLH Cover Decal
