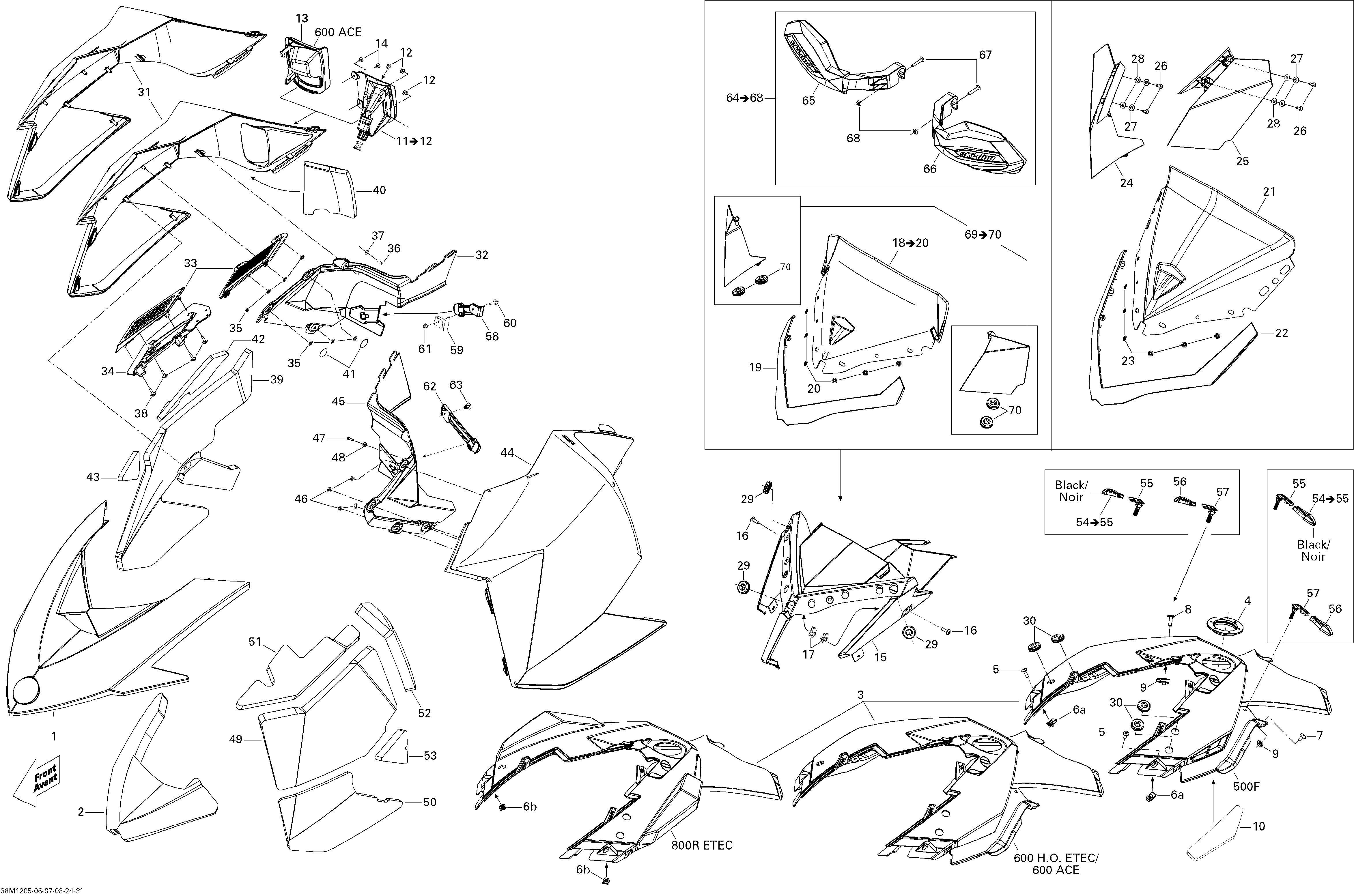

09- Hood, Windshield And Console для BRP Ski-Doo Renegade Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1517304530 Deep Black HoodDeep Black Hood
-
2517304913 Hood FoamHood Foam
-
3517303924 Deep Black ConsoleDeep Black Console
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6a250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
13517304500 Black RH ConsoleBlack RH Console
-
15517304575 Gauge SupportGauge Support
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
17250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
21860200478 Windsheld Kit 375. Includes 21 to 28Windsheld Kit 375. Includes 21 to 28
-
21517304395 Windsheld 375mm. Windshield OnlyWindsheld 375mm. Windshield Only
-
22517303607 Windshield SupportWindshield Support
-
23732610072 Push NutPush Nut
-
24517303604 RH Air DeflectorRH Air Deflector
-
25517303605 LH Air DeflectorLH Air Deflector
-
26250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
27250200025 Washer M5Washer M5
-
28250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
29517303756 GrommetGrommet
-
30517303756 GrommetGrommet
-
31517304029 Deep Black RH PanelDeep Black RH Panel
-
32517304424 RH Moulding PanelRH Moulding Panel
-
33517304763 External GrillExternal Grill
-
34517304764 Internal GrillInternal Grill
-
35732610072 Push NutPush Nut
-
36241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
37234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
38250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
39517304883 RH Center FoamRH Center Foam
-
40517304884 RH Panel Rear FoamRH Panel Rear Foam
-
41518325560 Adhesive PatchAdhesive Patch
-
44517304030 Deep Black LH PanelDeep Black LH Panel
-
45517304431 LH Moulding PanelLH Moulding Panel
-
46732610072 Push NutPush Nut
-
47241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
48234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
49517304887 LH Panel Center FoamLH Panel Center Foam
-
50517304888 LH Panel Lower FoamLH Panel Lower Foam
-
51517304889 LH Panel Upper FoamLH Panel Upper Foam
-
52517304890 LH Panel Rear FoamLH Panel Rear Foam
-
53517304891 FoamFoam
-
54860200239 Black Latch Kit. Includes 54 to 55Black Latch Kit. Includes 54 to 55
-
55517303981 Panel LatchPanel Latch
-
58517304551 Panel LatchPanel Latch
-
62517303808 LH Panel LatchLH Panel Latch
-
63250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
