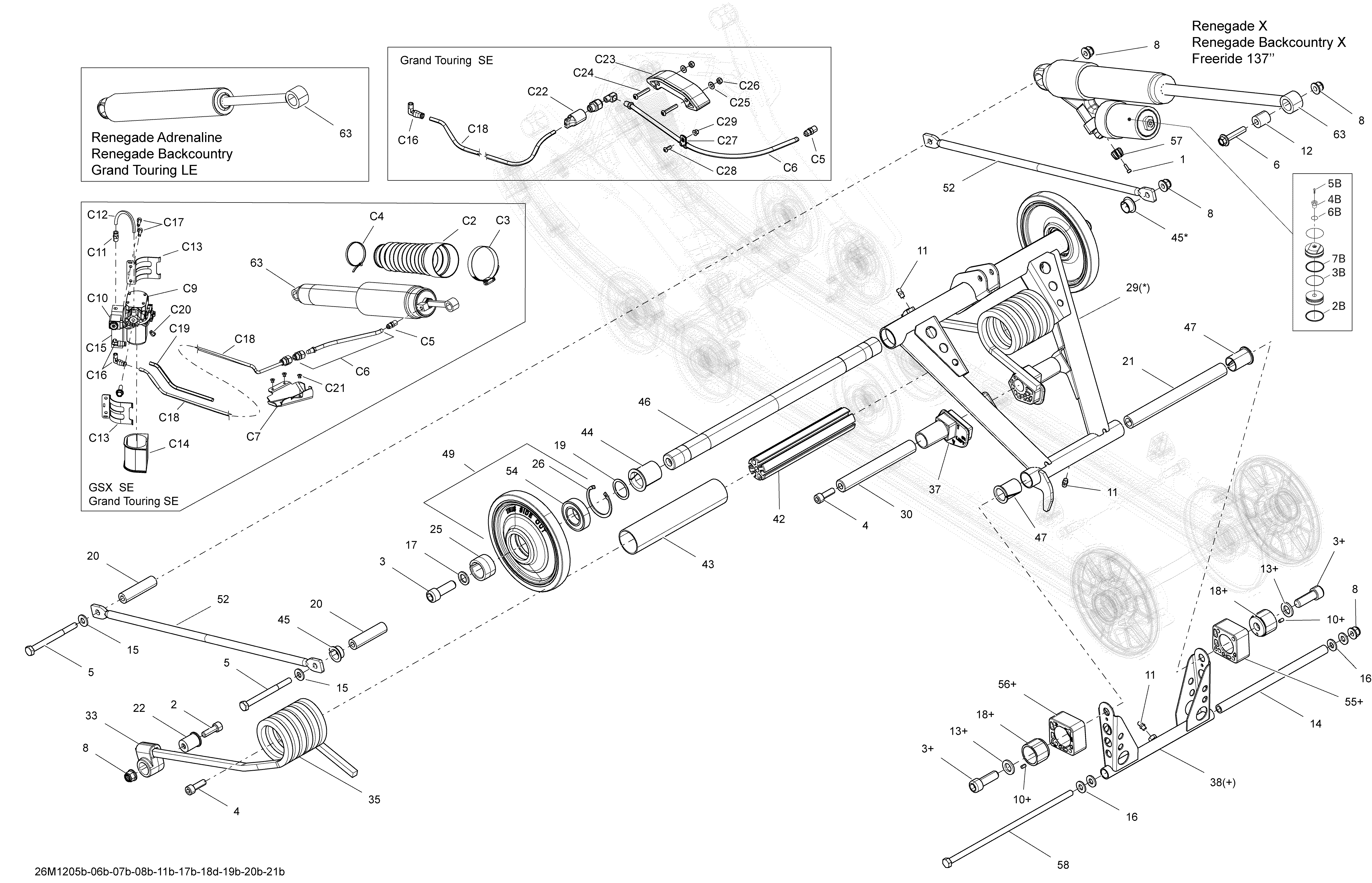

08- Rear Suspension Rear Arm, Shock для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
1205031060 Socket Screw M3 X 10. Renegade XSocket Screw M3 X 10. Renegade X
-
2250000477 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
3250000484 Socket Screw M12 X 35Socket Screw M12 X 35
-
4205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
5207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
6207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
8250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
10250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
11408200700 Grease FittingGrease Fitting
-
12414936000 CushionCushion
-
13503189148 WasherWasher
-
14503189156 Pivot Arm AxlePivot Arm Axle
-
15503189157 WasherWasher
-
16503192494 WasherWasher
-
17503192491 WasherWasher
-
18503189488 Block GuideBlock Guide
-
19503190328 WasherWasher
-
20503190643 Bar AxleBar Axle
-
21503192330 Lower ShaftLower Shaft
-
22503190754 Retainer CushionRetainer Cushion
-
25503191099 Retaining RingRetaining Ring
-
26415129371 Retaining RingRetaining Ring
-
29503191967 Rear Arm Ass'yRear Arm Ass'y
-
30503191178 Spring Cam AxeSpring Cam Axe
-
33503191183 Spring SupportSpring Support
-
35503191188 LH Spring, SquareLH Spring, Square
-
35503191186 RH Spring, SquareRH Spring, Square
-
37503191191 LH Spring CamLH Spring Cam
-
37503191190 RH Spring CamRH Spring Cam
-
38503191302 Pivot ArmPivot Arm
-
42503191344 Spring AxleSpring Axle
-
43503191345 Plastic BushingPlastic Bushing
-
44503191451 CushionCushion
-
45503191555 Swivel BushingSwivel Bushing
-
46503191233 Upper ShaftUpper Shaft
-
47503191640 CushionCushion
-
49503191739 Wheel 144 mm Ass'yWheel 144 mm Ass'y
-
52503191974 Link RodLink Rod
-
54503191982 Ball BearingBall Bearing
-
55503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
56503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
57505072753 Adjustment KnobAdjustment Knob
-
58503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
63503192205 Rear ShockRear Shock
-
63503192298 Rear Shock. Renegade X EuropeRear Shock. Renegade X Europe
-
63503192026 Rear Shock. Renegade AdrenalineRear Shock. Renegade Adrenaline
-
2b415093807 O-Ring. Renegade XO-Ring. Renegade X
-
3b415093806 Piston Ring. Renegade XPiston Ring. Renegade X
-
4b505070398 Air Valve. Renegade XAir Valve. Renegade X
-
5b505070399 Screw. Renegade XScrew. Renegade X
-
6b505070400 O-Ring. Renegade XO-Ring. Renegade X
-
7b415093804 O-Ring. Renegade XO-Ring. Renegade X
