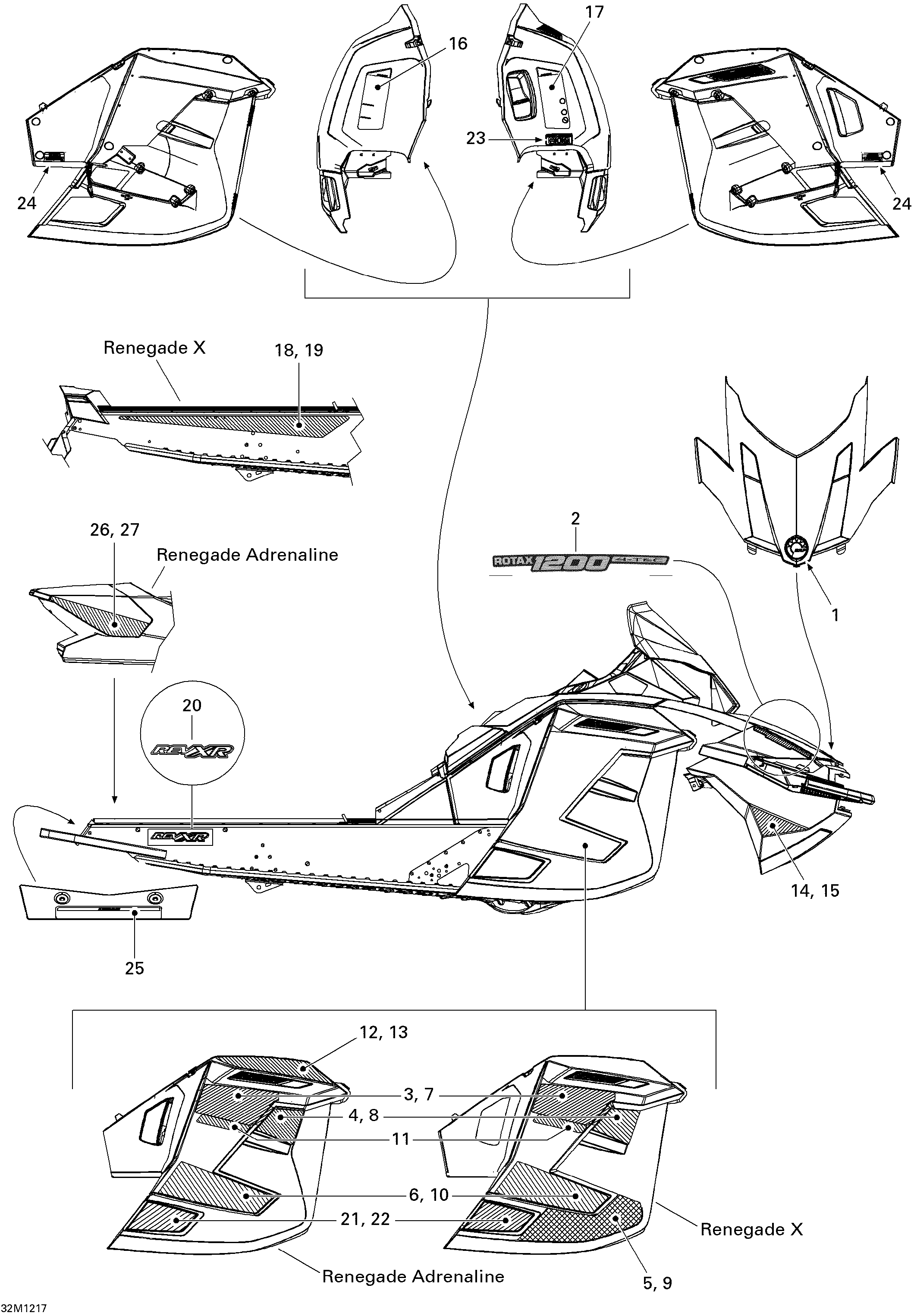

09- Decals Adrenaline для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516004465 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516004842 RH Rear Upper Side DecalRH Rear Upper Side Decal
-
4516004844 RH Front Upper Side DecalRH Front Upper Side Decal
-
6516004886 RH Side DecalRH Side Decal
-
7516004841 LH Rear Upper Side DecalLH Rear Upper Side Decal
-
8516004843 LH Front Upper Side DecalLH Front Upper Side Decal
-
10516004885 LH Side DecalLH Side Decal
-
11516004880 Side Decal, RenegadeSide Decal, Renegade
-
12516004851 RH Transition DecalRH Transition Decal
-
13516004850 LH Transition DecalLH Transition Decal
-
16516004561 Warning Decal, SecurityWarning Decal, Security
-
17516004888 Warning Decal, SecurityWarning Decal, Security
-
20516004849 Decal, REV XRDecal, REV XR
-
21516004479 RH Lower DecalRH Lower Decal
-
22516004478 LH Lower DecalLH Lower Decal
-
24516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
25516004440 Warning Decal, TrackWarning Decal, Track
-
26516004760 RH Cover DecalRH Cover Decal
-
27516004759 LH Cover DecalLH Cover Decal
