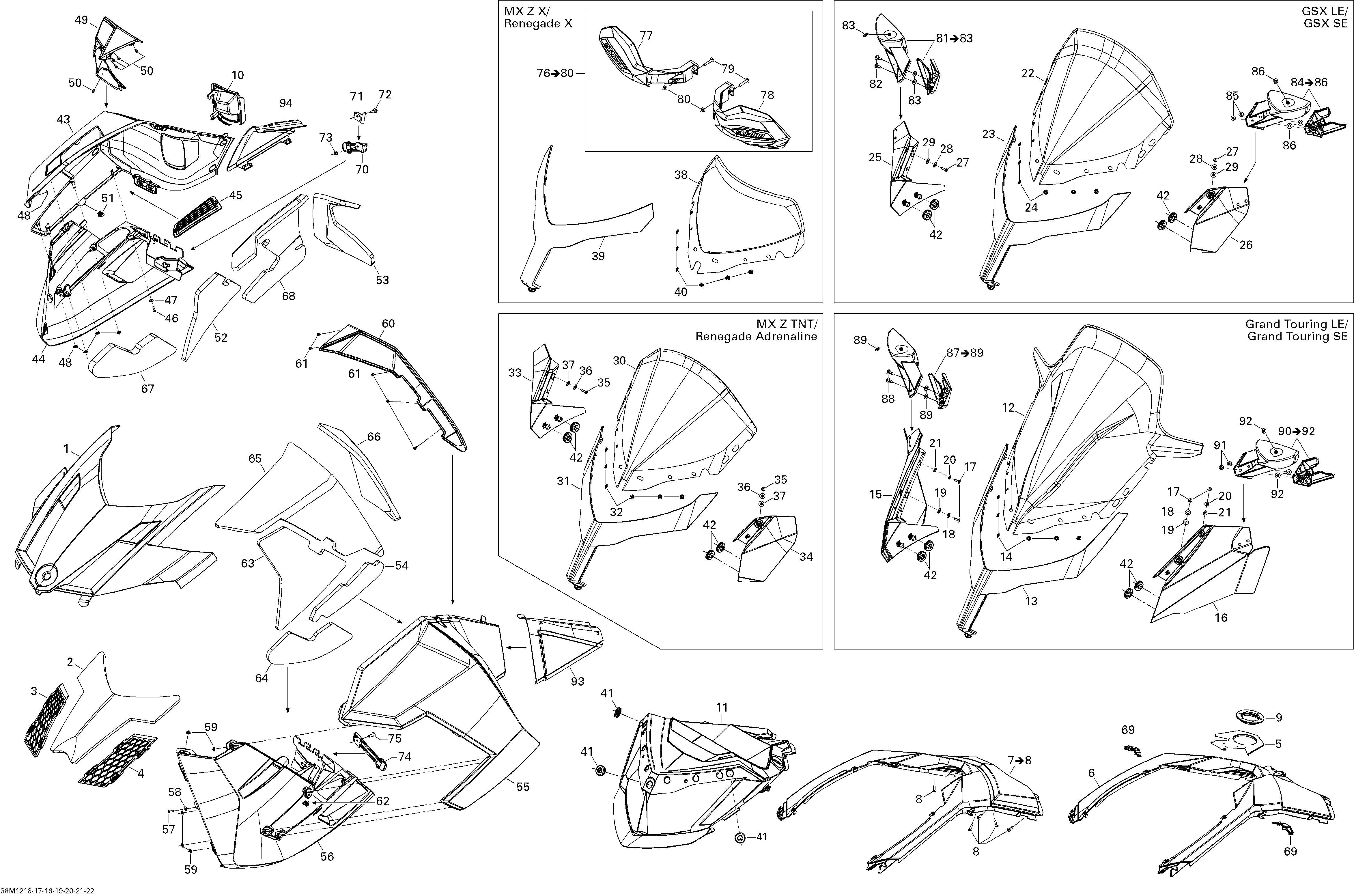

09- Hood, Windshield And Console Adrenaline для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
1517303739 Hood, BlackHood, Black
-
2517304893 Hood FoamHood Foam
-
3517303805 RH Hood GrillRH Hood Grill
-
4517303804 LH Hood GrillLH Hood Grill
-
5517304027 Cap ConsoleCap Console
-
6517303741 Console, BlackConsole, Black
-
9517304518 Console NutConsole Nut
-
10517304500 RH ConsoleRH Console
-
11517303972 Indicator SupportIndicator Support
-
30517303887 Medium Windshield (395)Medium Windshield (395)
-
31517303798 Medium Windshield SupportMedium Windshield Support
-
32732610072 Push NutPush Nut
-
33517304024 RH Console Air DeflectorRH Console Air Deflector
-
34517304025 LH Console Air DeflectorLH Console Air Deflector
-
35250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
36250200025 Washer M5Washer M5
-
37250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
41517303756 GrommetGrommet
-
42517303756 GrommetGrommet
-
43517303748 Black RH PanelBlack RH Panel
-
44517304373 RH Pannel MouldingRH Pannel Moulding
-
45517303801 Pannel GrillPannel Grill
-
46241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
47234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
48732610072 Push NutPush Nut
-
51517302785 ClipClip
-
52517304894 Central Foam Panel RHCentral Foam Panel RH
-
53517304895 Rear Panel Foam RHRear Panel Foam RH
-
54517304897 Central Foam Panel LHCentral Foam Panel LH
-
55517303753 LH Pannel, BlackLH Pannel, Black
-
56517304362 LH Pannel MouldingLH Pannel Moulding
-
57241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
58234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
59732610072 Push NutPush Nut
-
62517302785 ClipClip
-
63517304899 LH Central Panel FoamLH Central Panel Foam
-
64517304901 LH Lower Panel FoamLH Lower Panel Foam
-
65517304902 LH Upper Panel FoamLH Upper Panel Foam
-
66517304904 LH Rear Panel FoamLH Rear Panel Foam
-
67517304905 RH Lower Panel FoamRH Lower Panel Foam
-
68517304908 RH Upper Panel FoamRH Upper Panel Foam
-
69517305000 Panel LatchPanel Latch
-
70517303612 RH Panel LatchRH Panel Latch
-
71517304221 Latch SupportLatch Support
-
72207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
73233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
74517303808 LH Panel LatchLH Panel Latch
-
75250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
