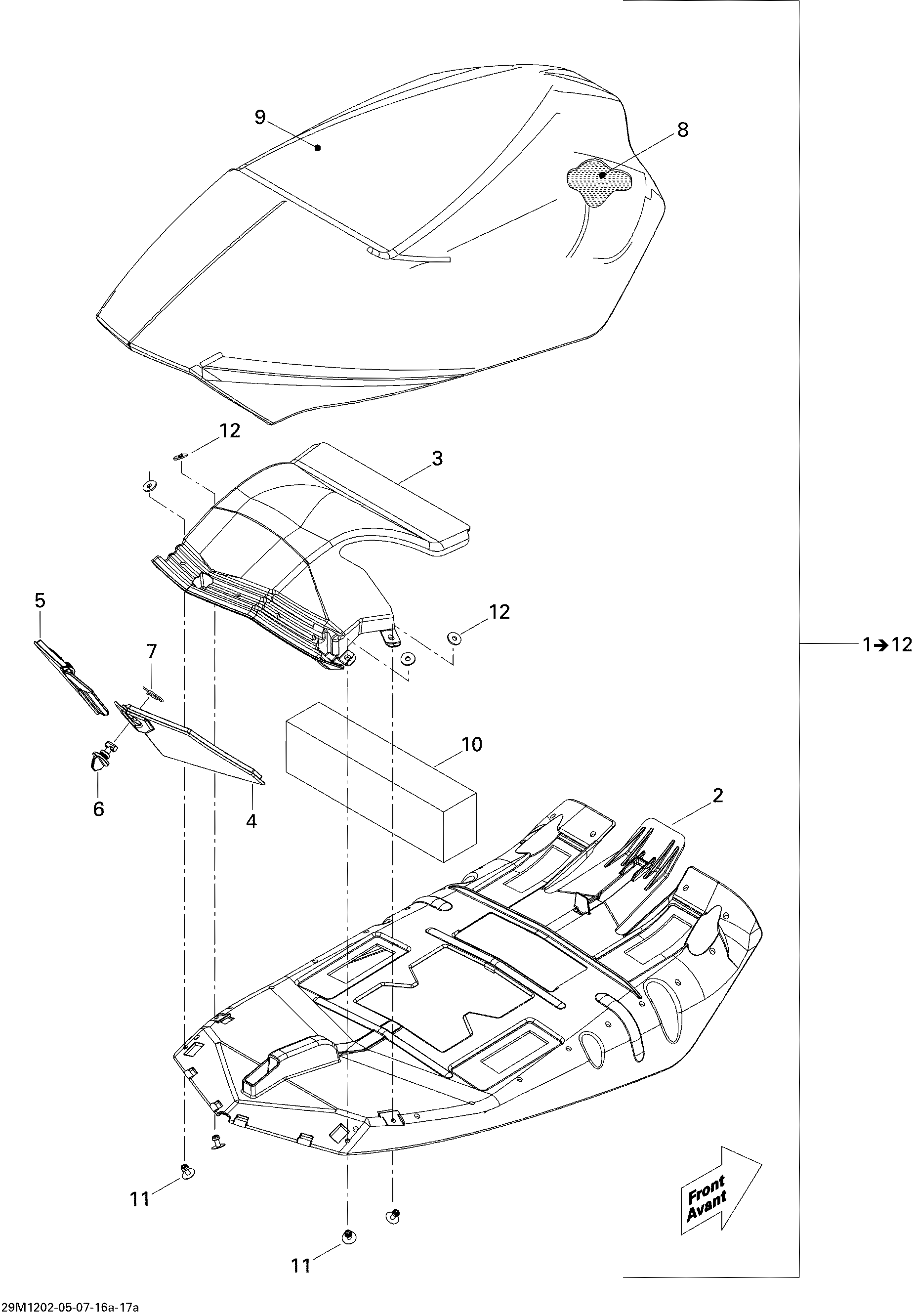

09- Seat X для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
2510005417 Seat BaseSeat Base
-
3510005413 Seat BoxSeat Box
-
4510005414 RH DoorRH Door
-
5510005415 LH DoorLH Door
-
6510005416 LockLock
-
7250400055 Hairpin ClipHairpin Clip
-
8510005477 Seat FoamSeat Foam
-
9510005492 Seat CoverSeat Cover
-
10510005504 FoamFoam
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12391301600 WasherWasher
