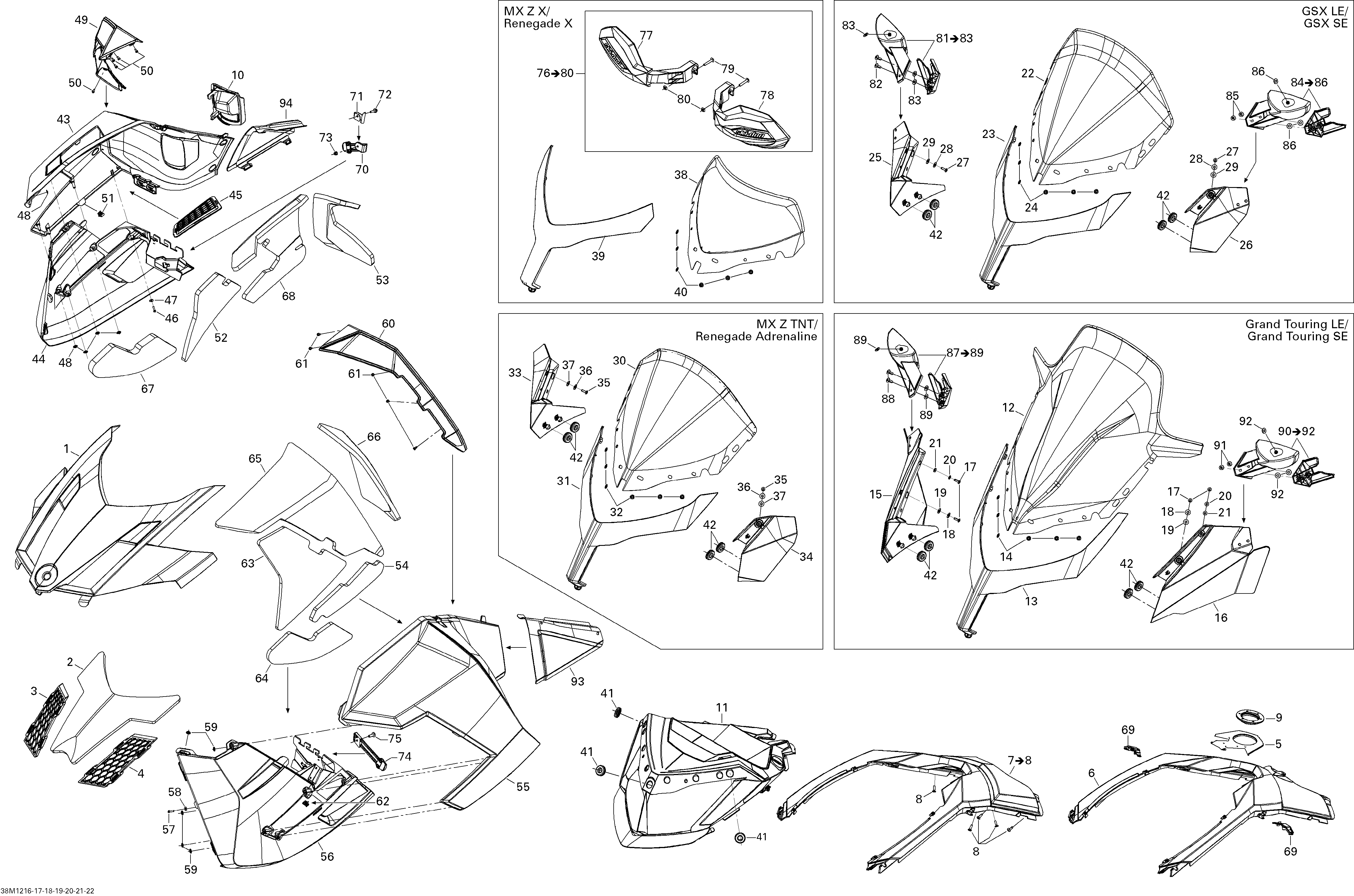

09- Hood, Windshield And Console X для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
1517303739 Hood, BlackHood, Black
-
2517304892 Hood FoamHood Foam
-
3517303805 RH Hood GrillRH Hood Grill
-
4517303804 LH Hood GrillLH Hood Grill
-
5517304027 Cap ConsoleCap Console
-
6517303741 Console, BlackConsole, Black
-
9517304518 Console NutConsole Nut
-
10517304500 RH ConsoleRH Console
-
11517303742 Indicator Support. Black-Black ModelIndicator Support. Black-Black Model
-
11517304915 Indicator Support. Black-White ModelIndicator Support. Black-White Model
-
38517303888 Low Windshield (250)Low Windshield (250)
-
39517303959 Low Windshield SupportLow Windshield Support
-
40732610072 Push NutPush Nut
-
41517303756 GrommetGrommet
-
43517303748 Black RH Panel. Black-Black ModelBlack RH Panel. Black-Black Model
-
43517304366 RH Pannel, Bright White. Black-White ModelRH Pannel, Bright White. Black-White Model
-
44517304373 RH Pannel MouldingRH Pannel Moulding
-
45517303801 Pannel GrillPannel Grill
-
46241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
47234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
48732610072 Push NutPush Nut
-
51517302785 ClipClip
-
52517304894 Central Foam Panel RHCentral Foam Panel RH
-
53517304895 Rear Panel Foam RHRear Panel Foam RH
-
54517304896 Central Foam Panel LHCentral Foam Panel LH
-
55517303753 LH Pannel, Black. Black-Black ModelLH Pannel, Black. Black-Black Model
-
55517304355 LH Pannel, Bright White. Black-White ModelLH Pannel, Bright White. Black-White Model
-
56517304362 LH Pannel MouldingLH Pannel Moulding
-
57241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
58234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
59732610072 Push NutPush Nut
-
62517302785 ClipClip
-
63517304898 LH Central Panel FoamLH Central Panel Foam
-
64517304900 LH Lower Panel FoamLH Lower Panel Foam
-
65517304903 LH Upper Panel FoamLH Upper Panel Foam
-
66517304904 LH Rear Panel FoamLH Rear Panel Foam
-
67517304906 RH Lower Panel FoamRH Lower Panel Foam
-
68517304907 RH Upper Panel FoamRH Upper Panel Foam
-
69517305000 Panel LatchPanel Latch
-
70517303612 RH Panel LatchRH Panel Latch
-
71517304221 Latch SupportLatch Support
-
72207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
73233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
74517303808 LH Panel LatchLH Panel Latch
-
75250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
76860200712 Wind Deflector Kit. Includes 76 to 80, Black-Black ModelWind Deflector Kit. Includes 76 to 80, Black-Black Model
-
76860200711 Wind Deflector Kit. Includes 76 to 80, Black-White ModelWind Deflector Kit. Includes 76 to 80, Black-White Model
-
77517305039 RH Wind Deflector. Black-Black ModelRH Wind Deflector. Black-Black Model
-
77517305045 RH Wind Deflector. Black-White ModelRH Wind Deflector. Black-White Model
-
78517305040 LH Wind Deflector. Black-Black ModelLH Wind Deflector. Black-Black Model
-
78517305046 LH Wind Deflector. Black-White ModelLH Wind Deflector. Black-White Model
-
79250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
80250000498 Square Nut M6Square Nut M6
