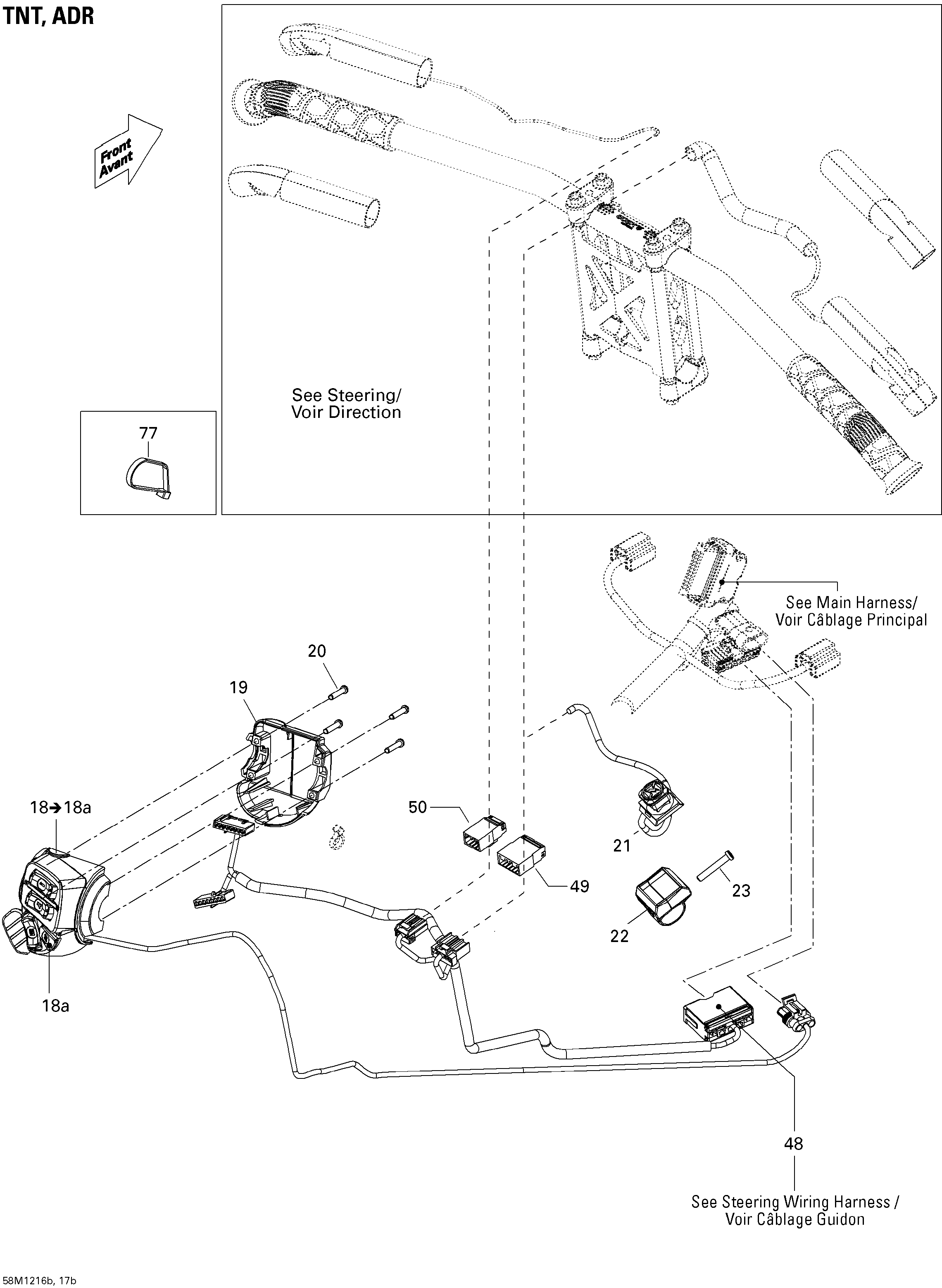

10- Electrical Accessories, Steering ADR для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2012
-
№АртикулНазвание
-
18515177019 LH Housing. Includes 18 to 18aLH Housing. Includes 18 to 18a
-
18a515176088 Start/RER ButtonStart/RER Button
-
19515175926 Housing Switch PlateHousing Switch Plate
-
20250000263 Torx Screw #8-18Torx Screw #8-18
-
21515177061 Kill SwitchKill Switch
-
22515176825 Kill Switch SupportKill Switch Support
-
23250000263 Torx Screw #8-18Torx Screw #8-18
-
24515177267 Main Harness Ass'yMain Harness Ass'y
-
48515176867 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
49515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
50515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
77293750027 Tie-Rap 206 mmTie-Rap 206 mm
