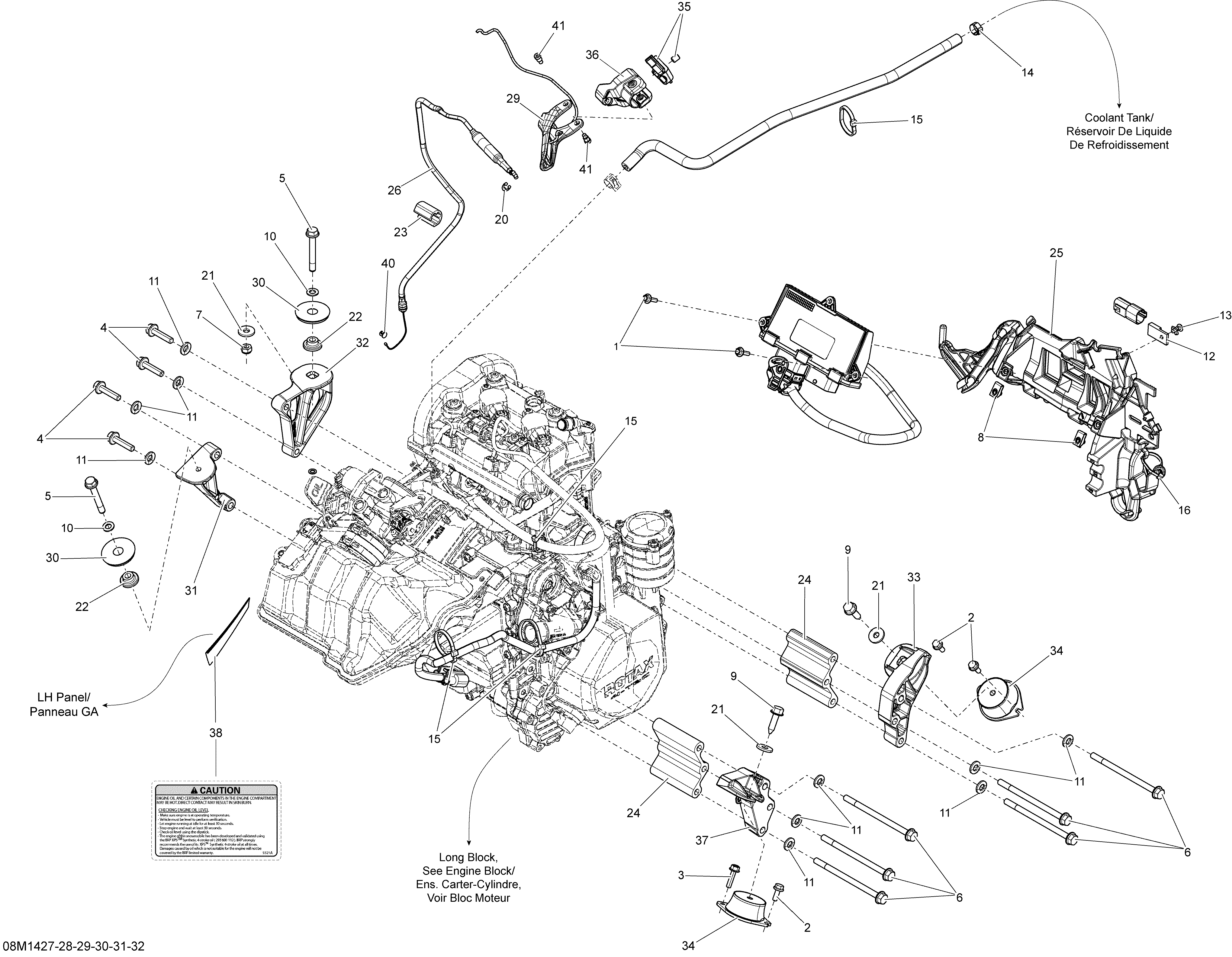

01- Engine And Engine Support для BRP Ski-Doo RENEGADE SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
1207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
2207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
3207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
5207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
6230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
7232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
8250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
9250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
10250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
11250200146 Conical Spring Washer M8Conical Spring Washer M8
-
12270000141 ClipClip
-
13293150027 Avdel RivetAvdel Rivet
-
14293650046 Oetiker ClampOetiker Clamp
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20414274500 CirclipCirclip
-
21503183200 Washer, YellowWasher, Yellow
-
22512060285 SpacerSpacer
-
23512060313 ProtectorProtector
-
24512060505 ShimShim
-
25512060509 Module SupportModule Support
-
26512060606 Throttle CableThrottle Cable
-
29512060618 Throttle HandleThrottle Handle
-
30512060647 StopperStopper
-
31512060660 Rear Support, PTORear Support, PTO
-
32512060661 Front Support, PTOFront Support, PTO
-
33512060663 Front Support, MAGFront Support, MAG
-
34512060729 Rubber MountRubber Mount
-
35512060859 Upper HousingUpper Housing
-
36512060860 Lower HousingLower Housing
-
37512060894 Rear Support, MAGRear Support, MAG
-
38516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
-
40707000434 Cable GuideCable Guide
-
41732601143 Flanged ScrewFlanged Screw
