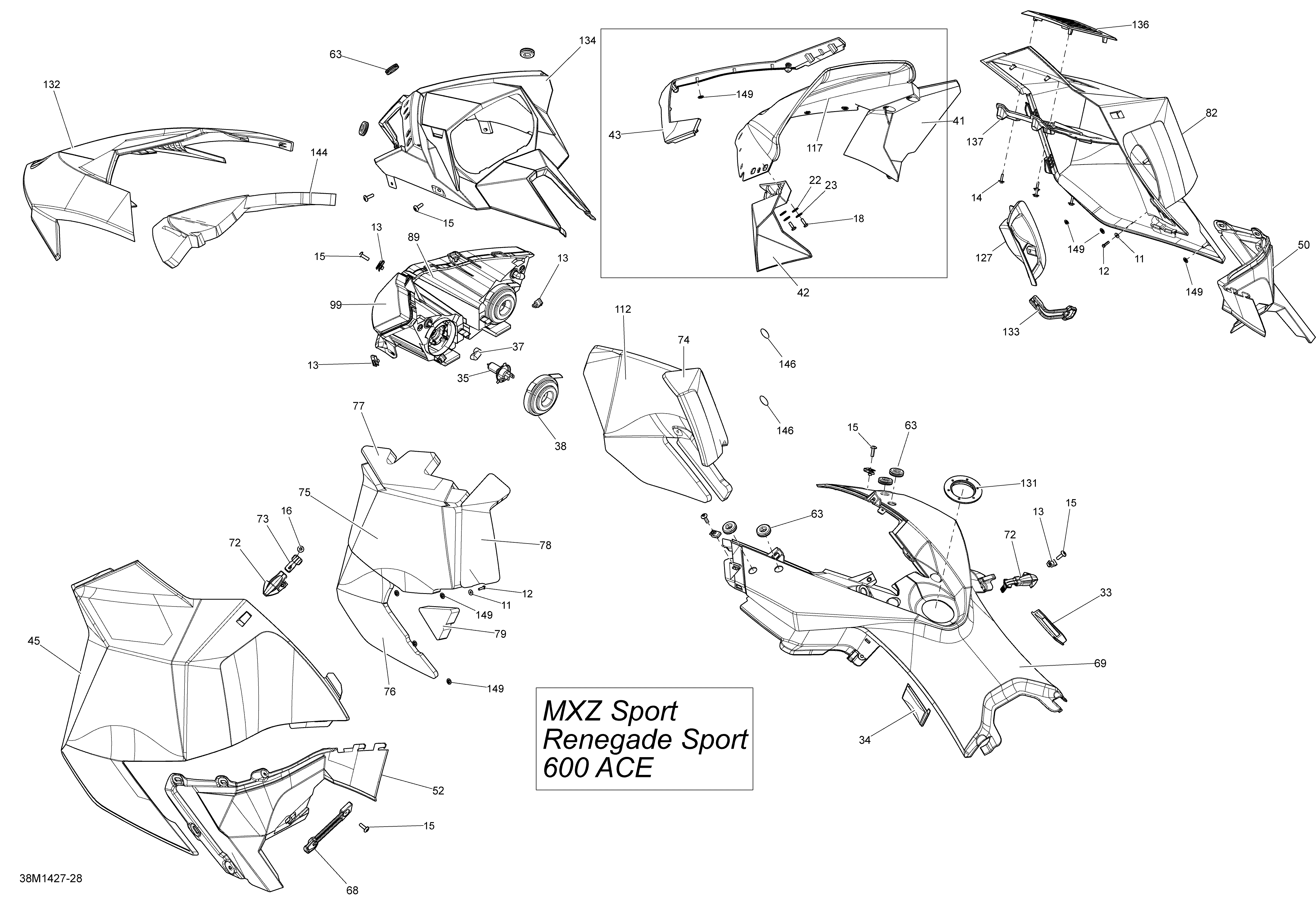

09- Hood, Windshield And Console для BRP Ski-Doo RENEGADE SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
11234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
12241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
14250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
15250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
16250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
18250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
23250200025 Washer M5Washer M5
-
33513033471 RH Panel ClipRH Panel Clip
-
34513033472 LH Panel ClipLH Panel Clip
-
35515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
37515176498 CapCap
-
38515176499 CoverCover
-
41517303604 RH Air DeflectorRH Air Deflector
-
42517303605 LH Air DeflectorLH Air Deflector
-
43517303607 Windshield SupportWindshield Support
-
45517304030 Deep Black LH PanelDeep Black LH Panel
-
50517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
52517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
63517303756 GrommetGrommet
-
68517303808 LH Panel LatchLH Panel Latch
-
69517303924 Deep Black ConsoleDeep Black Console
-
72860200239 Black Latch KitBlack Latch Kit
-
73517303981 Panel LatchPanel Latch
-
74517304884 RH Panel Rear FoamRH Panel Rear Foam
-
75517304887 LH Panel Center FoamLH Panel Center Foam
-
76517304888 LH Panel Lower FoamLH Panel Lower Foam
-
77517304889 LH Panel Upper FoamLH Panel Upper Foam
-
78517304890 LH Panel Rear FoamLH Panel Rear Foam
-
79517304891 FoamFoam
-
82517304029 Deep Black RH PanelDeep Black RH Panel
-
89517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
99517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
112517304883 RH Center FoamRH Center Foam
-
117517304394 Windsheld Kit 375Windsheld Kit 375
-
117517304395 Windsheld 375mmWindsheld 375mm
-
127517304500 Black RH ConsoleBlack RH Console
-
131517304518 Console NutConsole Nut
-
132517304530 Deep Black HoodDeep Black Hood
-
133517304551 Panel LatchPanel Latch
-
134517305030 Gauge SupportGauge Support
-
136517304763 External GrillExternal Grill
-
137517304764 Internal GrillInternal Grill
-
144517304913 Hood FoamHood Foam
-
146517305451 Heat ShieldHeat Shield
-
149732610072 Push NutPush Nut
