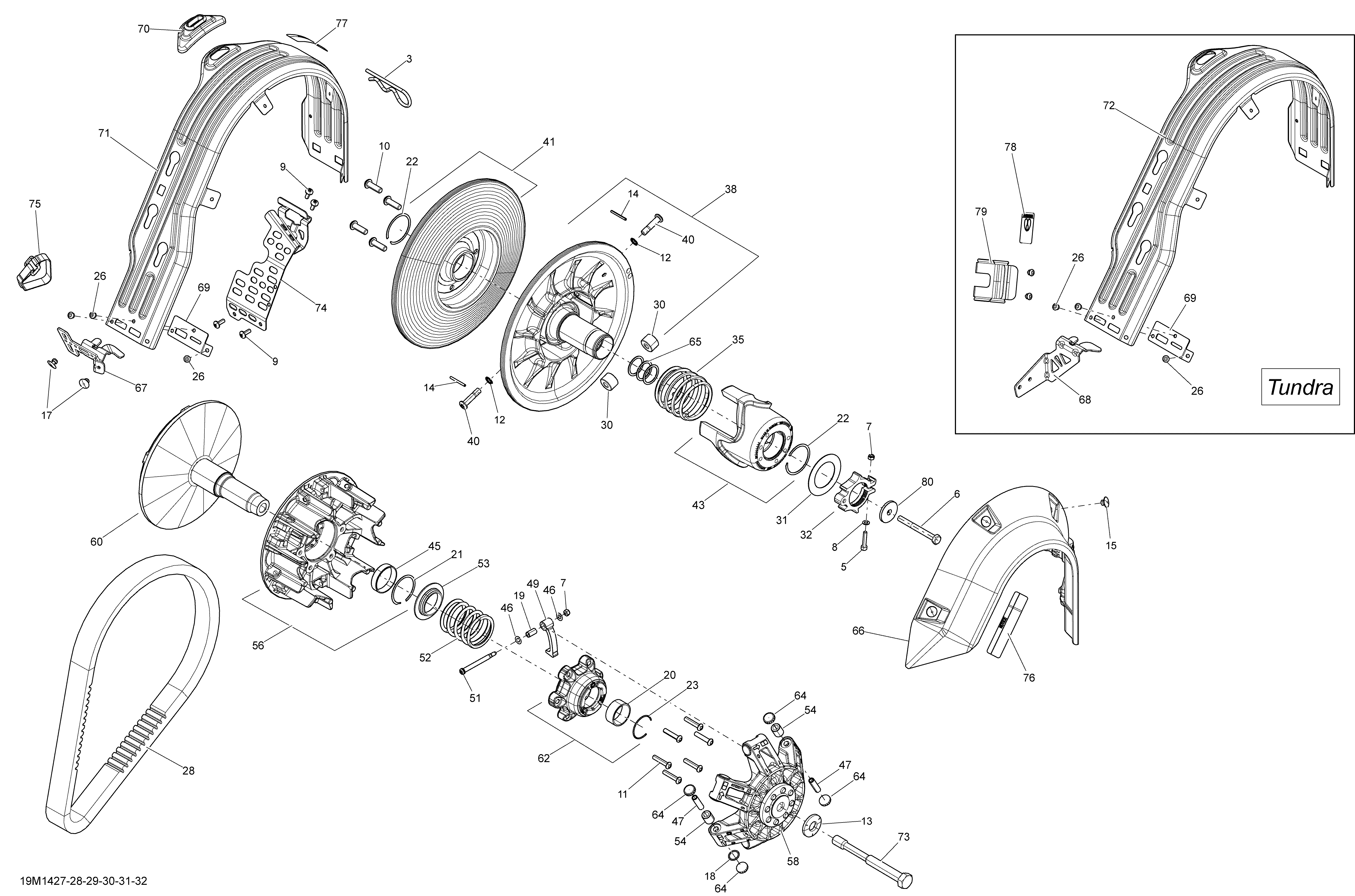

05- Pulley System для BRP Ski-Doo RENEGADE SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
3114045200 Hair PinHair Pin
-
3114045200 Hair PinHair Pin
-
3114045200 Hair PinHair Pin
-
5205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
5205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
5205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
6207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
6207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
6207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8234051410 Flat Washer M5Flat Washer M5
-
8234051410 Flat Washer M5Flat Washer M5
-
8234051410 Flat Washer M5Flat Washer M5
-
9250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
9250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
9250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
10250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
10250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
10250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
11250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
11250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
11250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
12250200009 Lock Washer 8 mmLock Washer 8 mm
-
12250200009 Lock Washer 8 mmLock Washer 8 mm
-
12250200009 Lock Washer 8 mmLock Washer 8 mm
-
13250200144 Conical Spring Washer M14Conical Spring Washer M14
-
13250200144 Conical Spring Washer M14Conical Spring Washer M14
-
13250200144 Conical Spring Washer M14Conical Spring Washer M14
-
14250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
14250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
14250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
15293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293300169 O RingO Ring
-
18293300169 O RingO Ring
-
18293300169 O RingO Ring
-
19293350078 Journal BearingJournal Bearing
-
19293350078 Journal BearingJournal Bearing
-
19293350078 Journal BearingJournal Bearing
-
20293350079 Journal BearingJournal Bearing
-
20293350079 Journal BearingJournal Bearing
-
20293350079 Journal BearingJournal Bearing
-
21293370037 CirclipCirclip
-
21293370037 CirclipCirclip
-
21293370037 CirclipCirclip
-
22293370049 CirclipCirclip
-
22293370049 CirclipCirclip
-
22293370049 CirclipCirclip
-
23293370065 CirclipCirclip
-
23293370065 CirclipCirclip
-
23293370065 CirclipCirclip
-
26390909200 Avex RivetAvex Rivet
-
26390909200 Avex RivetAvex Rivet
-
26390909200 Avex RivetAvex Rivet
-
28417300127 Drive BeltDrive Belt
-
28417300127 Drive BeltDrive Belt
-
28417300127 Drive BeltDrive Belt
-
30417127016 RollerRoller
-
30417127016 RollerRoller
-
30417127016 RollerRoller
-
31417127155 WasherWasher
-
31417127155 WasherWasher
-
31417127155 WasherWasher
-
32415129604 Calibration Ass'yCalibration Ass'y
-
32415129604 Calibration Ass'yCalibration Ass'y
-
32415129604 Calibration Ass'yCalibration Ass'y
-
35417127344 Spring ReleaseSpring Release
-
35417127344 Spring ReleaseSpring Release
-
35417127344 Spring ReleaseSpring Release
-
38417127351 Fixe Flange Ass'yFixe Flange Ass'y
-
38417127351 Fixe Flange Ass'yFixe Flange Ass'y
-
38417127351 Fixe Flange Ass'yFixe Flange Ass'y
-
40417127294 Pivot StudPivot Stud
-
40417127294 Pivot StudPivot Stud
-
40417127294 Pivot StudPivot Stud
-
41417127366 Slider Flange Ass'ySlider Flange Ass'y
-
41417127366 Slider Flange Ass'ySlider Flange Ass'y
-
41417127366 Slider Flange Ass'ySlider Flange Ass'y
-
43417127391 Cam Ass'yCam Ass'y
-
43417127391 Cam Ass'yCam Ass'y
-
43417127391 Cam Ass'yCam Ass'y
-
45417222758 BushingBushing
-
45417222758 BushingBushing
-
45417222758 BushingBushing
-
46417223255 Thrust WasherThrust Washer
-
46417223255 Thrust WasherThrust Washer
-
46417223255 Thrust WasherThrust Washer
-
47417223257 Roller AxleRoller Axle
-
47417223257 Roller AxleRoller Axle
-
47417223257 Roller AxleRoller Axle
-
49417223508 Ramp 716 AssRamp 716 Ass
-
49417223508 Ramp 716 AssRamp 716 Ass
-
49417223508 Ramp 716 AssRamp 716 Ass
-
51417223694 Ramp AxleRamp Axle
-
51417223694 Ramp AxleRamp Axle
-
51417223694 Ramp AxleRamp Axle
-
52417223747 Spring ClutchSpring Clutch
-
52417223747 Spring ClutchSpring Clutch
-
53417223752 Seat SpringSeat Spring
-
54417223767 RollerRoller
-
56417223855 Mobile Flange Ass'yMobile Flange Ass'y
-
58417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
60417223867 Fixe Flange Ass'yFixe Flange Ass'y
-
62417223907 Spring Cover Ass'ySpring Cover Ass'y
-
64417223919 Slider ShoeSlider Shoe
-
65417300265 SpacerSpacer
-
66417300356 Side ProtectorSide Protector
-
67417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
69417300380 ReinforcementReinforcement
-
70417300381 GuideGuide
-
71417300382 Belt GuardBelt Guard
-
73417300432 Pulley Drive BoltPulley Drive Bolt
-
74417300448 Belt Guard BracketBelt Guard Bracket
-
75508000599 Velcro StripVelcro Strip
-
76516005503 Decal, EnglishDecal, English
-
77516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
80517302322 Strength WasherStrength Washer
